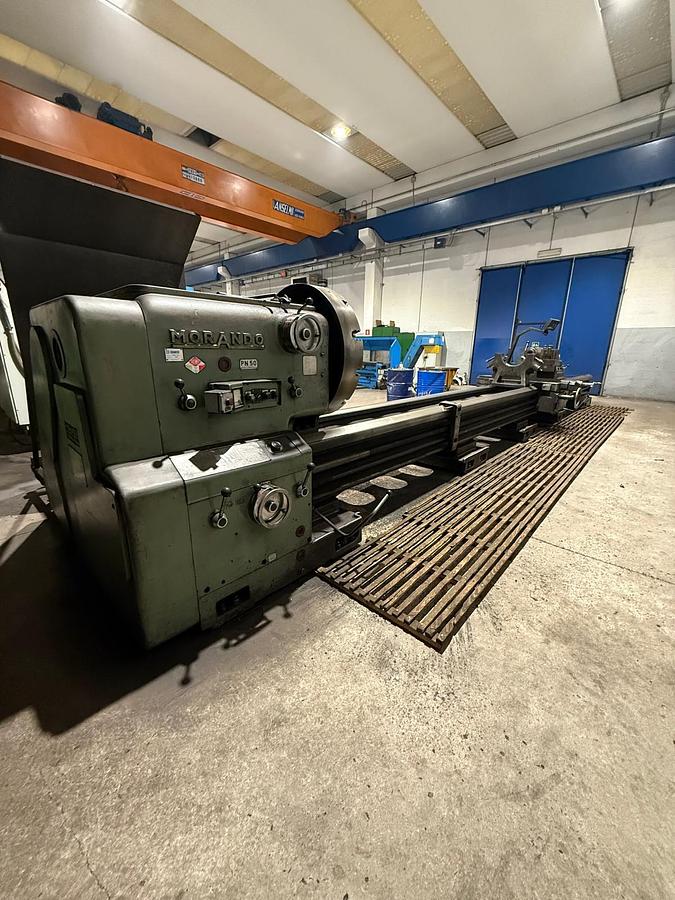

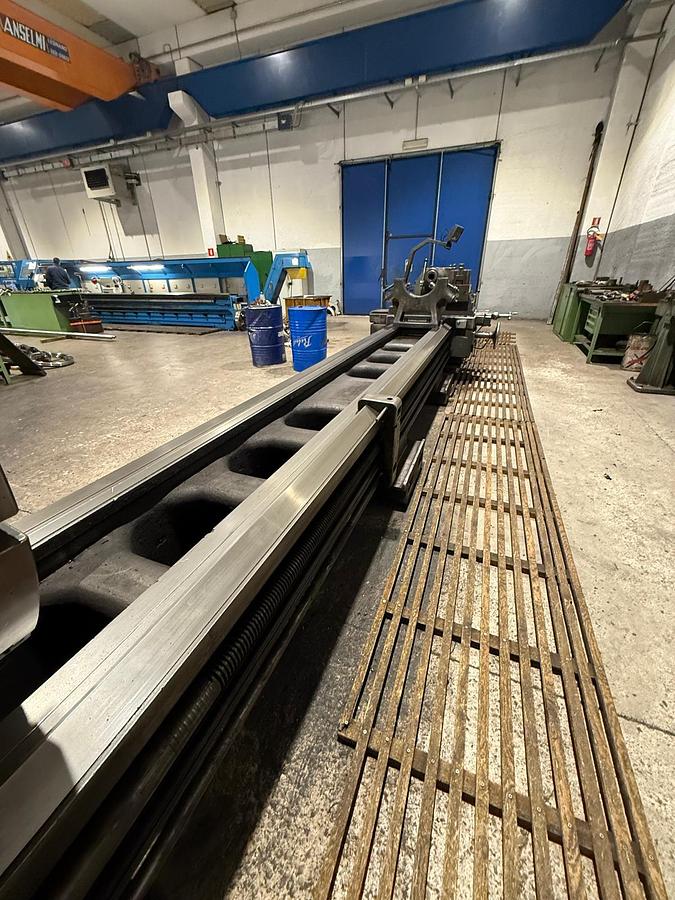

MORANDO PN 50 x 8000 LATHE
No longer available
Technical specifications
| Manufacturer | MORANDO |
| Model | PN 50 x 8000 |
| Stock Number | 4900 NL |
| Centres height | 525 mm. |
| Centres distance | 8.000 mm. |
| Max. Ø over saddle | 800 mm. |
| Max. Ø over bed | 1.070 mm. |
| Bed width | 750 mm. |
| Max. weight between centers | 6.800 Kg. |
| Spindle power | 30 Hp. |
| Spindle speeds | N. 24; 5 - 500 Rpm. |
| Spindle hole | 100 mm. |
| Tailstock nose | 140 mm. |
| Tailstock nose travel | 280 mm. |
| Total weight | 14.600 Kg. |
Features and Accessories
Complete with:

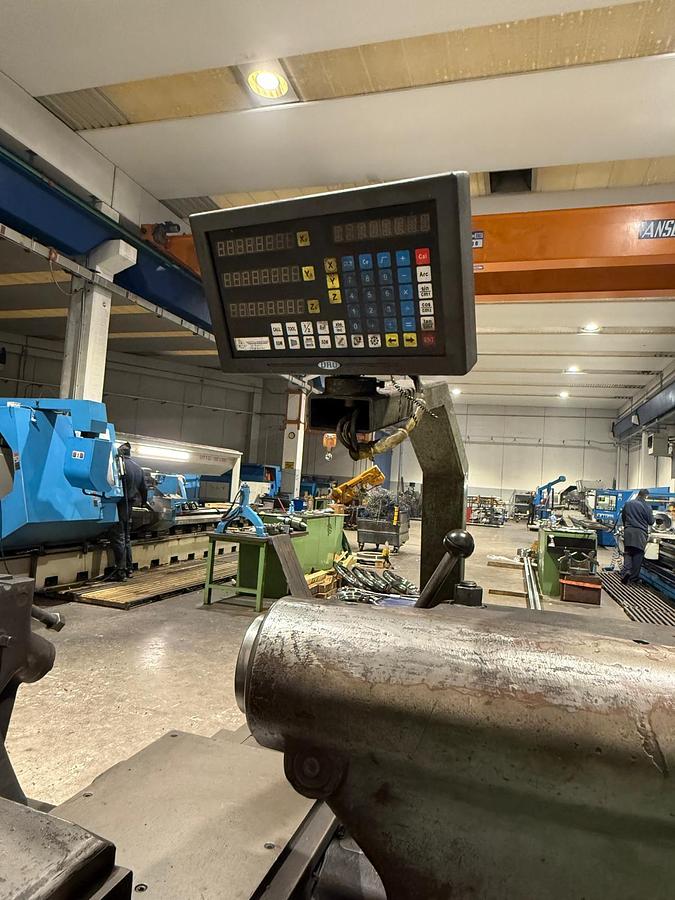

- d.r.o. - 3 axis

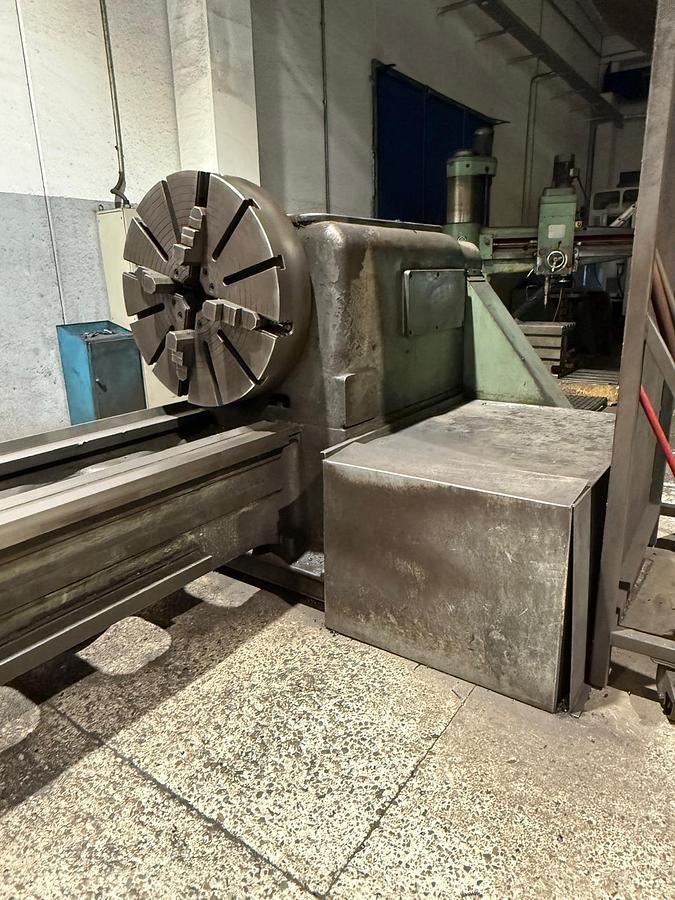

- n. 1 four jaws table Ø 900 mm.
- n. 2 closed steadies
- n. 1 open steady
