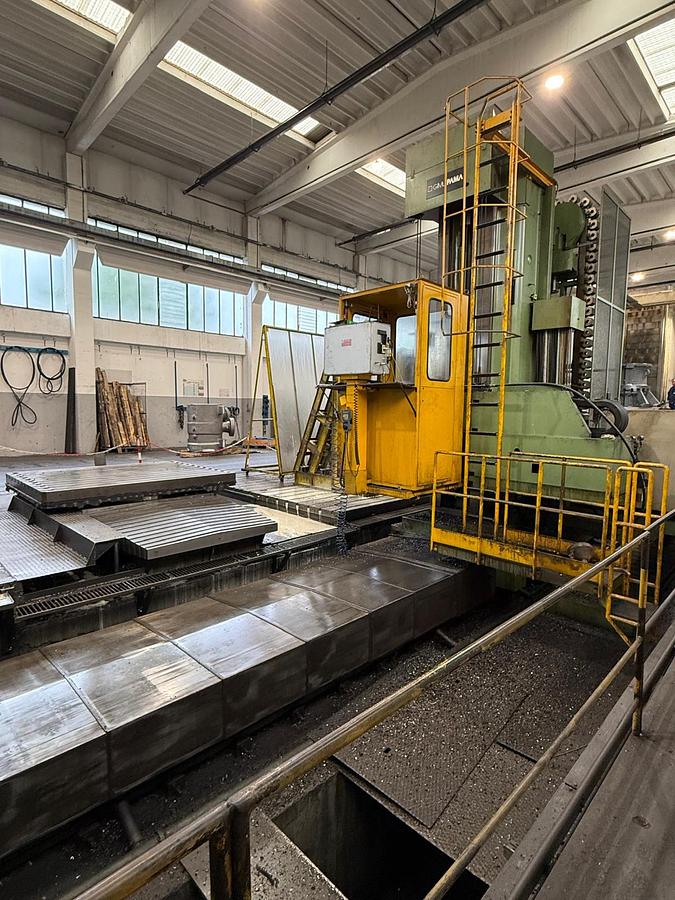

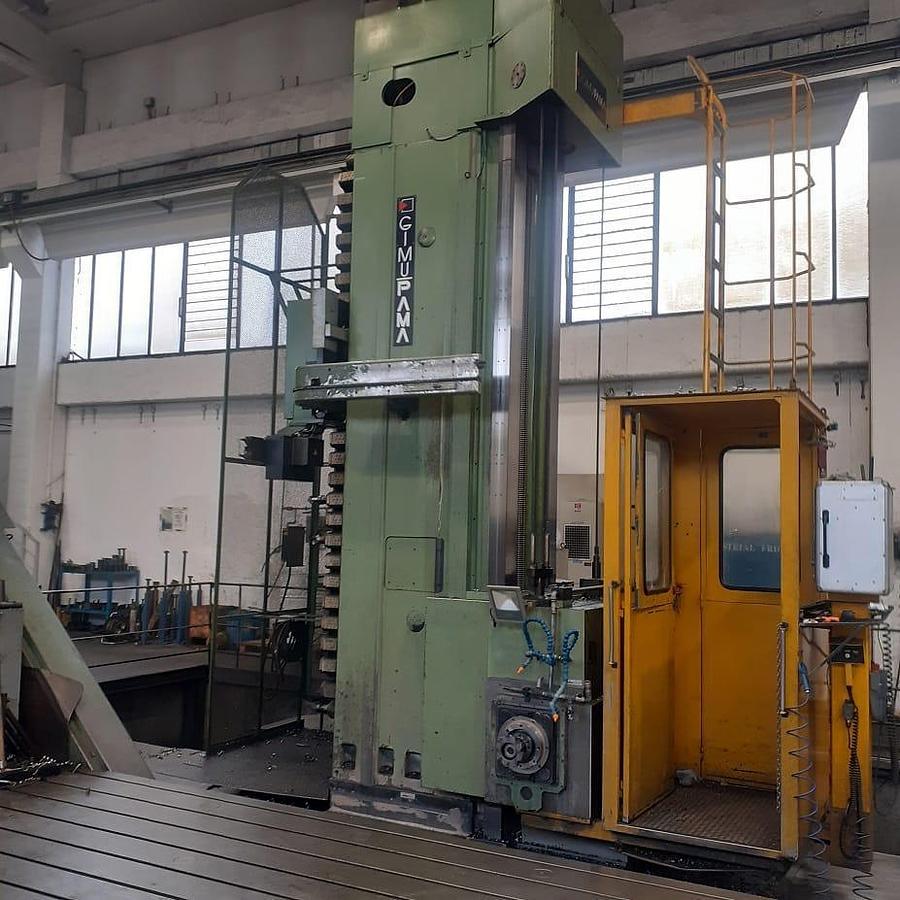

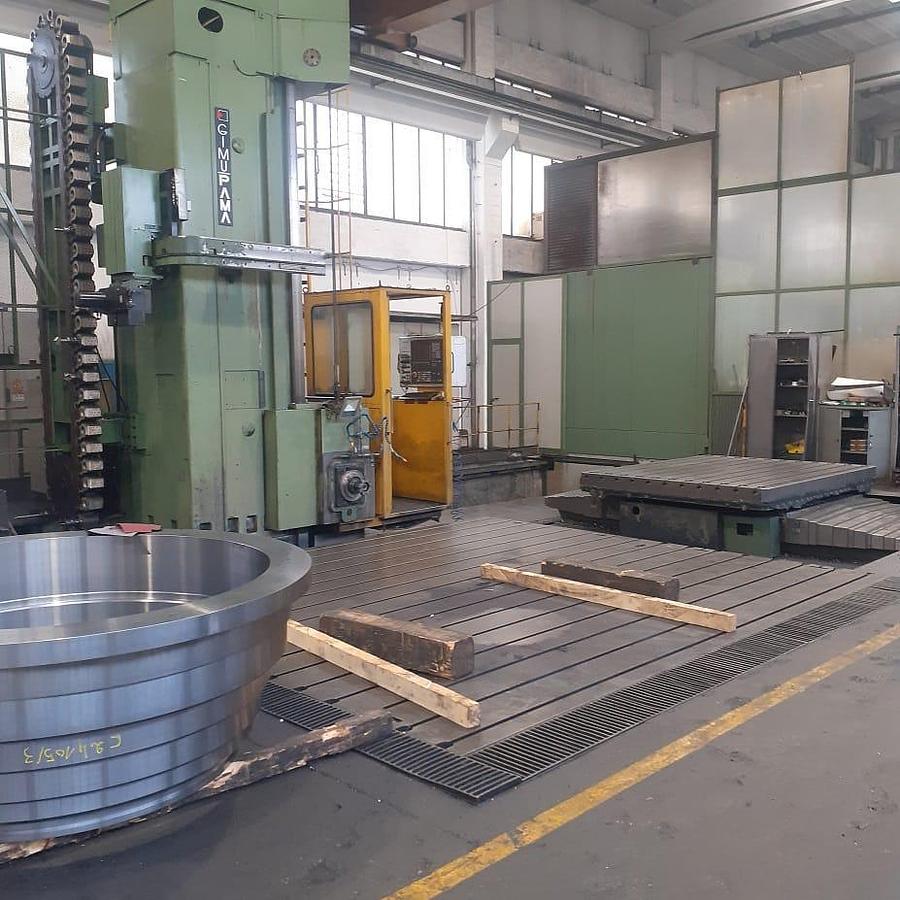

PAMA SPEEDRAM 1 CNC FLOOR TYPE BORER
No longer available
Featured
Technical specifications
| Manufacturer | PAMA |
| Model | SPEEDRAM 1 CNC |
| Stock Number | SPEEDRAM-1 |
| Spindle | 140 mm. |
| Tranversal travel | 8.000 mm. |
| Vertical travel | 2.600 mm. |
| RAM travel | 600 mm. |
| Spindle travel | 700 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 50 Kw. |
| Spindle speeds | 6 ÷ 1.600 Rpm. |
| RAM section | 360 x 320 mm. |

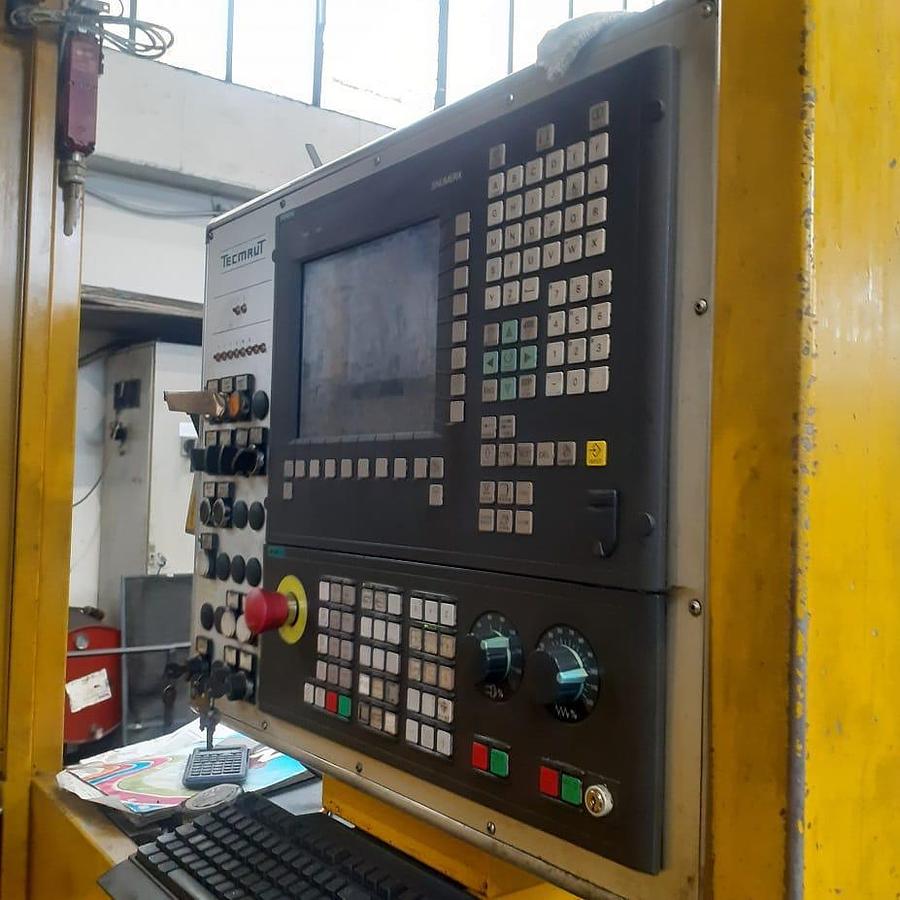

| Cnc | CNC SIEMENS 840 D |
| Total weight | 65 Tons. |
Features and Accessories
Complete with:

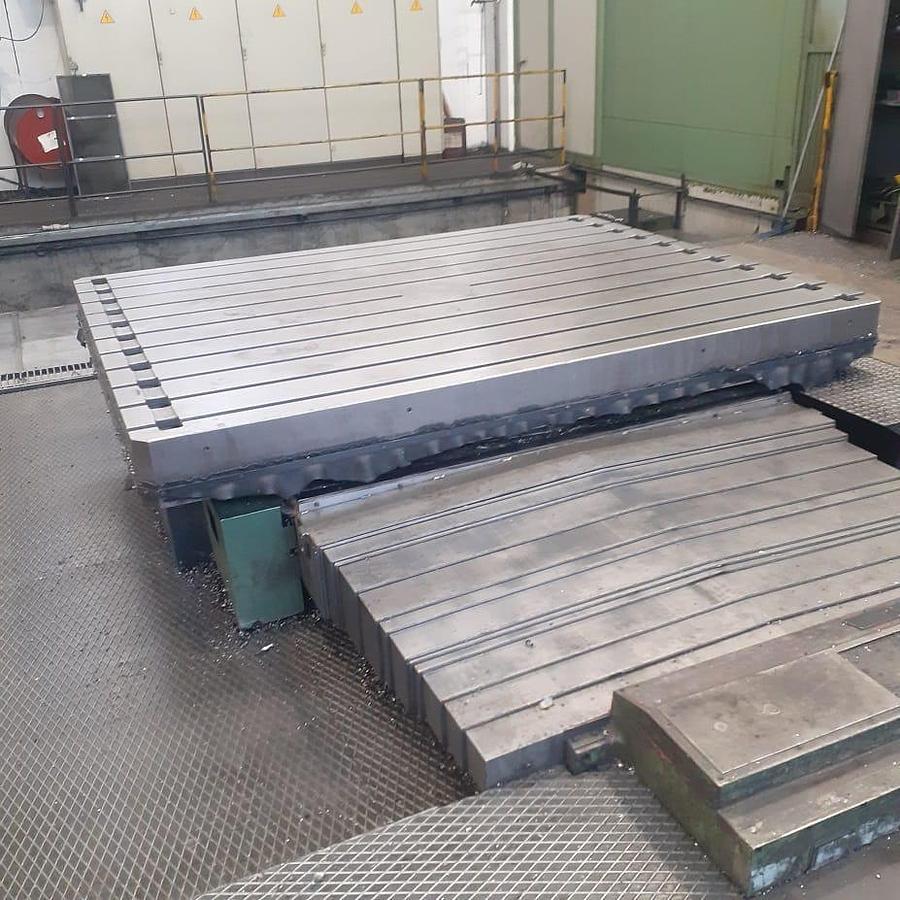

- n. 1 Pama cnc rotary table - 2 axis (B; V): sizes 2.500 x 2.000 mm.; max. carrying capacity 30 tons.; longitudinal travel 1.250 mm.; weight 15 tons.
- 60 seats atc

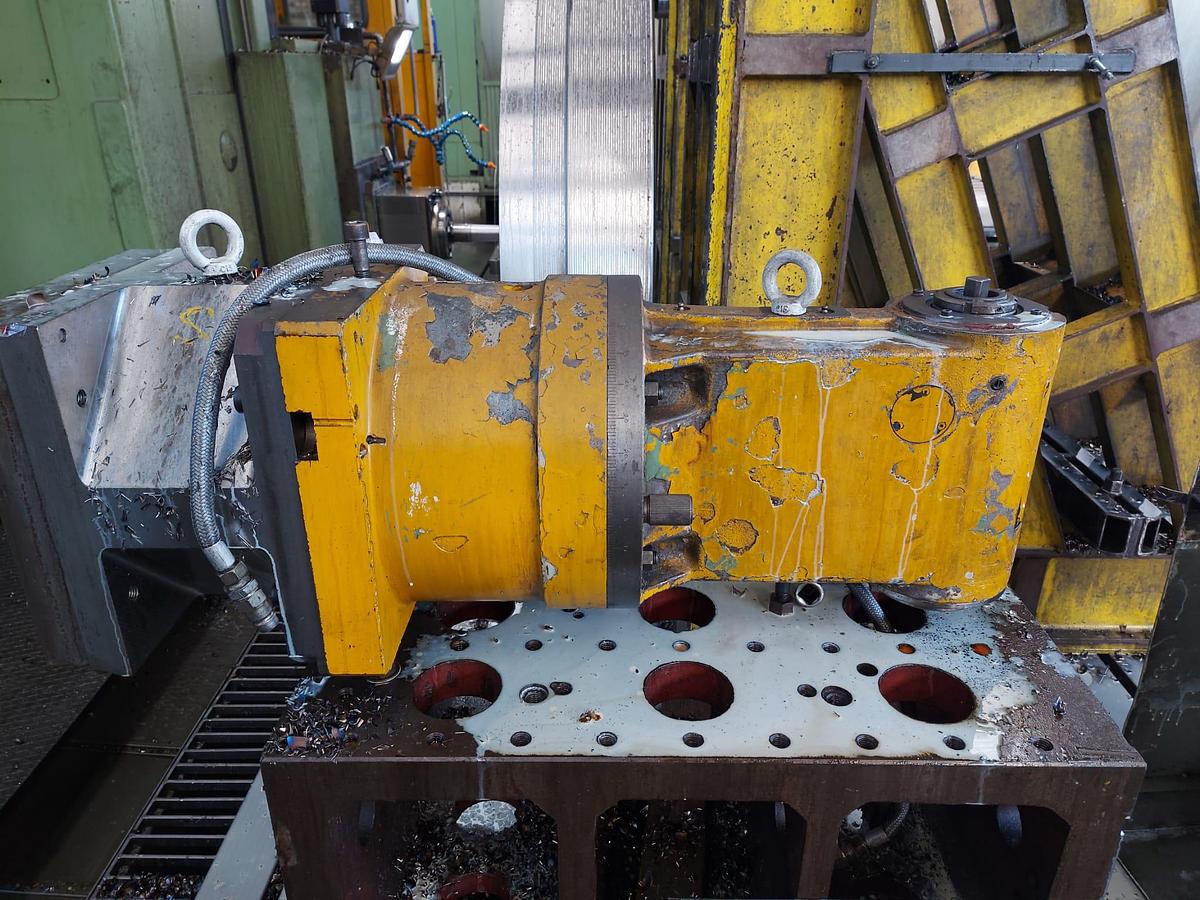

- n. 1 vertical milling head - iso 50
- n. 1 vertical milling head - iso 40
- n. 1 extension head
- chipconveyor
