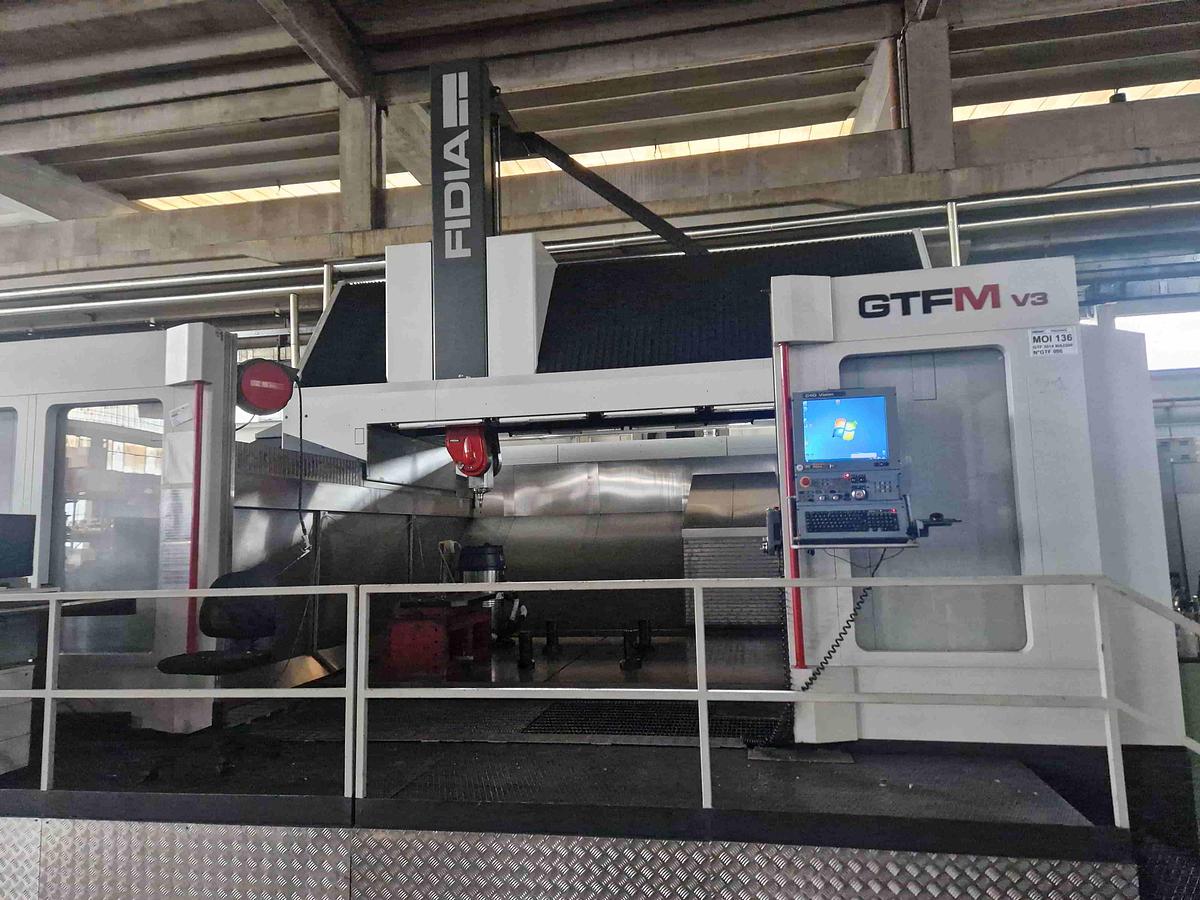

FIDIA GTFM V 3 GANTRY TYPE MILLING MACHINE

Technical specifications
Manufacturer | FIDIA |
Model | GTFM V 3 |
Year | 2015 |
Stock Number | GTFM |

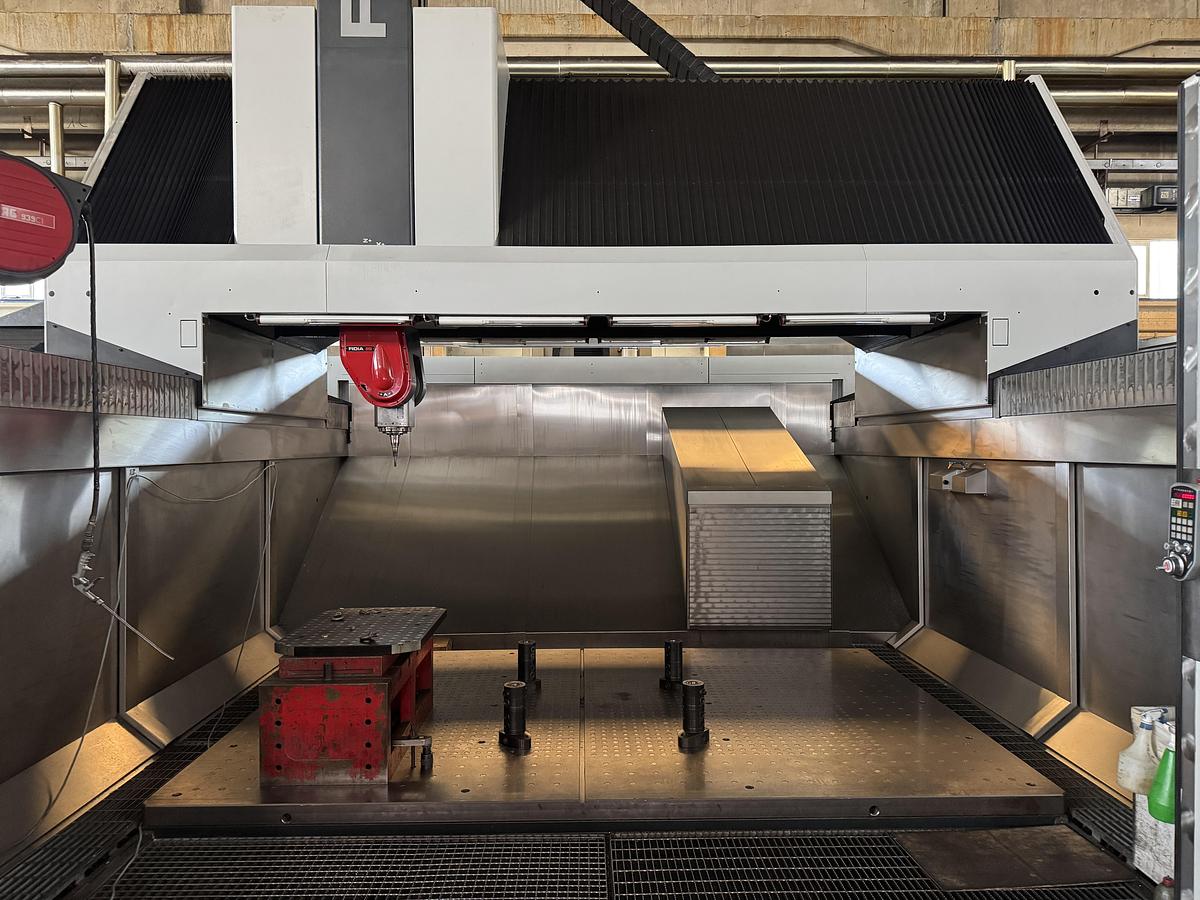

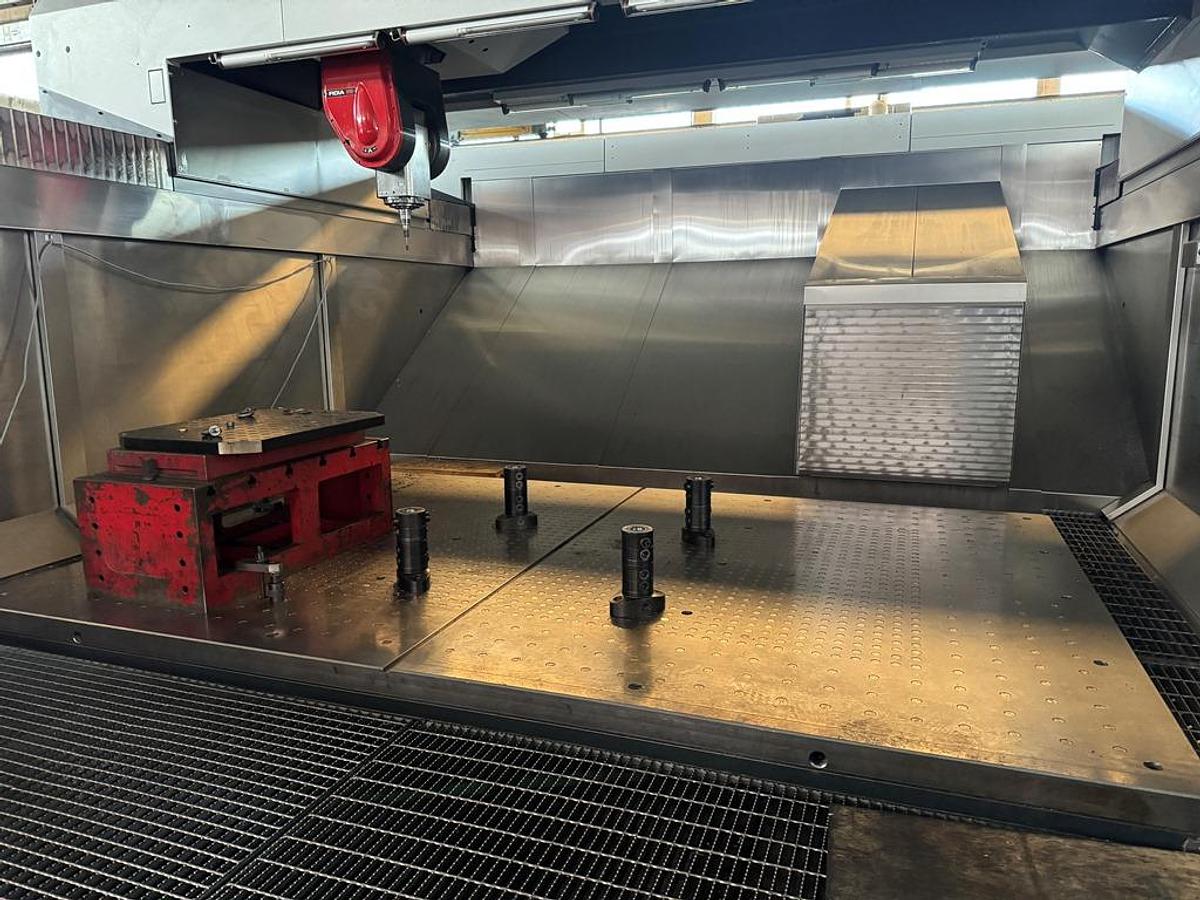

Table | 3.500 x 2.200 mm. |
Passage between columns | 4.200 mm. |
Portal travel | 2.200 mm. |
Transversal head travel | 3.500 mm. |
Vertical head travel | 1.400 mm. |
Max. weight on table | 4 Tons./mt. |
N. milling heads | 1 |

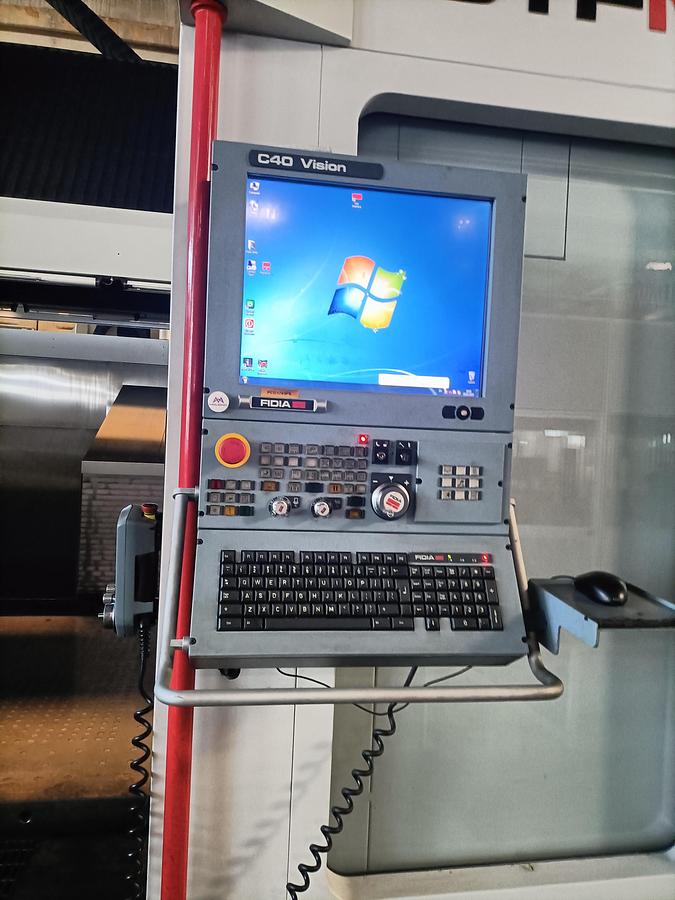

Cnc | CNC FIDIA C 40 VISION |
Total weight | 62 |
Features and Accessories
Complete with:

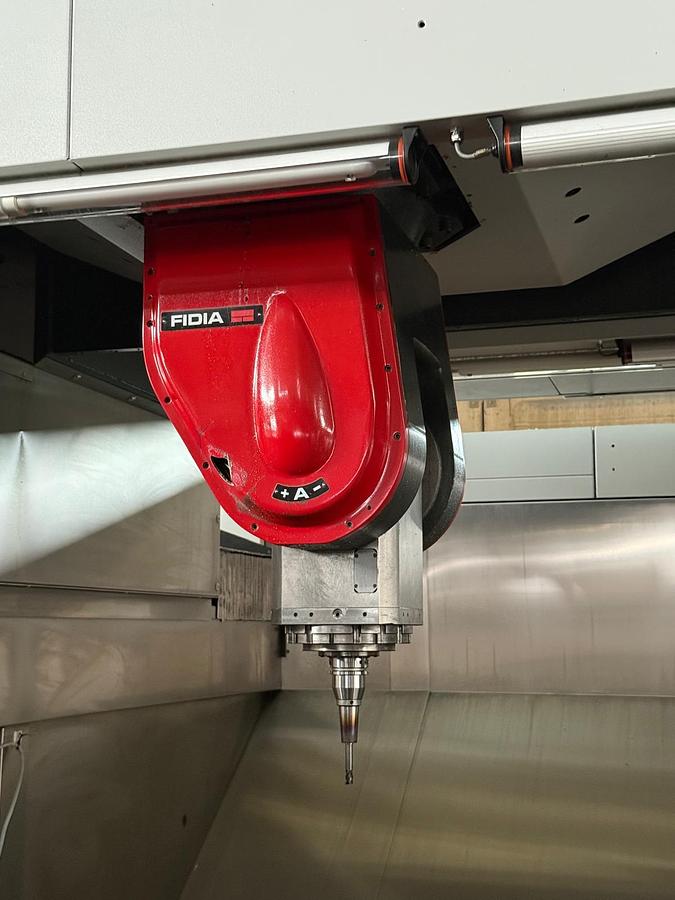

- n. 1 tilting continuos milling head: “C” axis +/- 360°; “A” axis + 95° / - 110°; spindle speeds 10 ÷ 24.000 rpm.; 55 kw.; spindle taper HSK-A 63

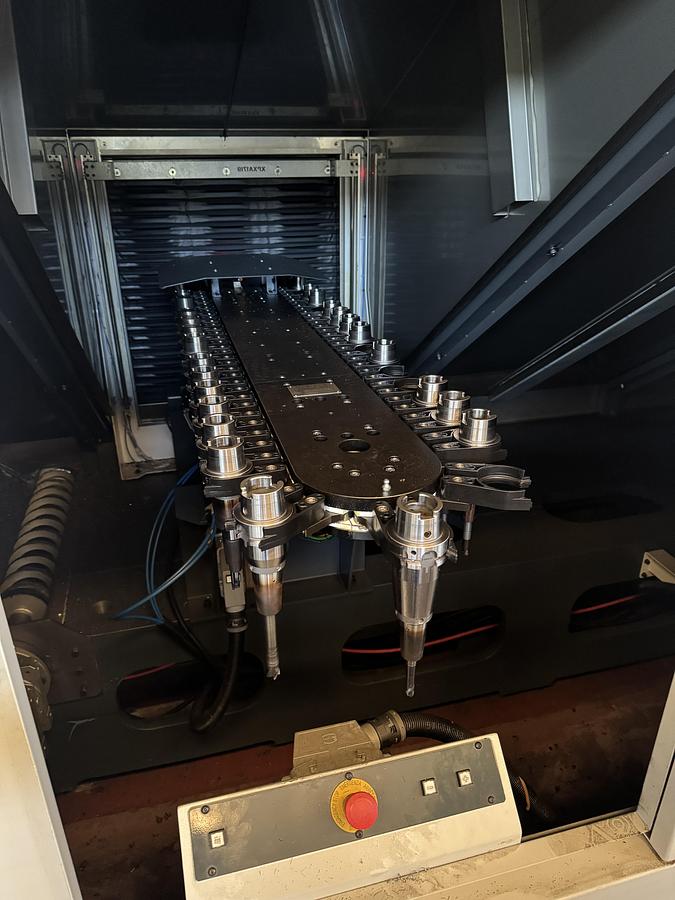

- 41 seats atc
- chipconveyor
