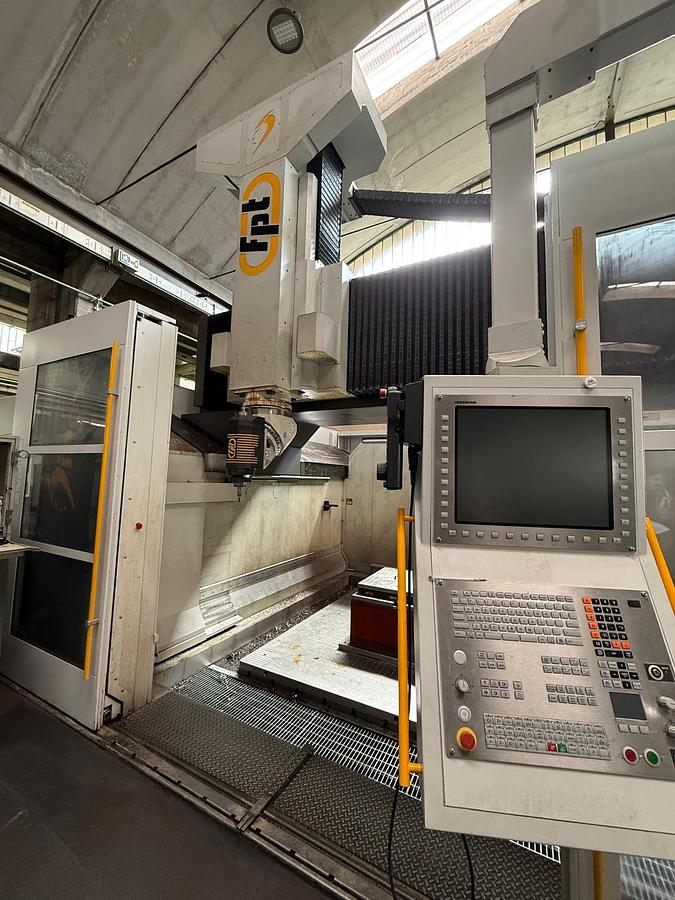

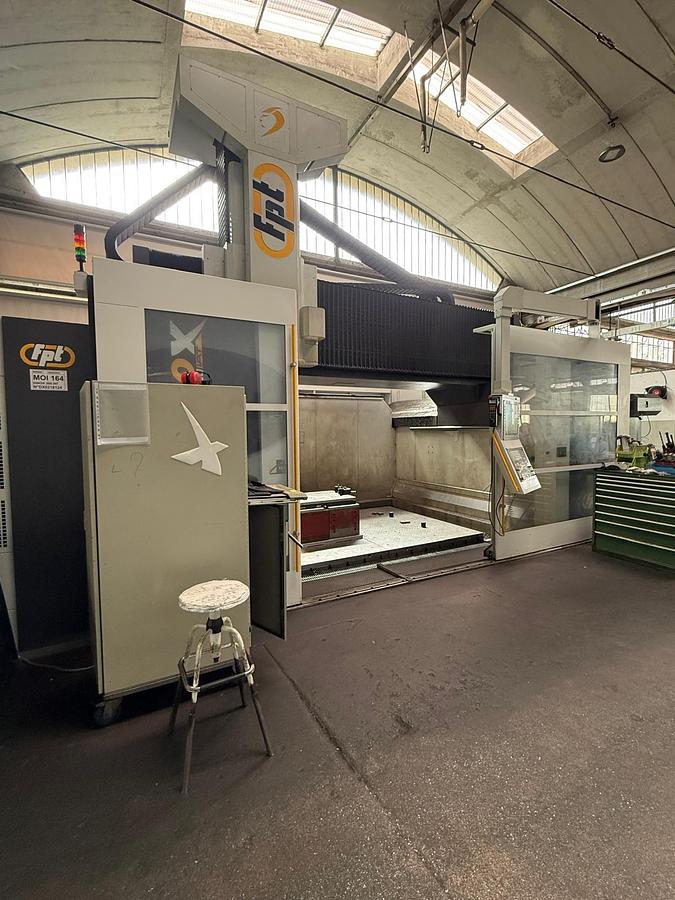

FPT DINOX 350 IAT GANTRY TYPE MILLING MACHINE
Technical specifications
| Manufacturer | FPT |
| Model | DINOX 350 IAT |
| Year | 2018 |
| Stock Number | DINOX |
| Table | 3.500 x 2.500 mm. |
| Portal travel | 2.500 mm. |
| Transversal head travel | 3.500 mm. |
| Vertical head travel | 1.300 mm. |

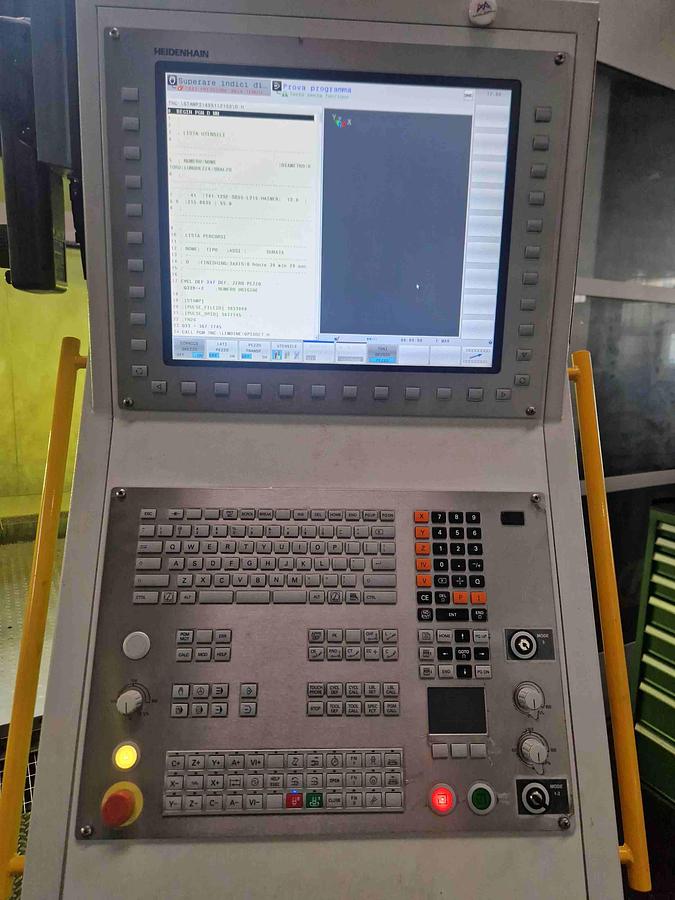

| Cnc | CNC HEIDENHAIN 640 |
| Total weight | 52 Tons |
Features and Accessories
Complete with:

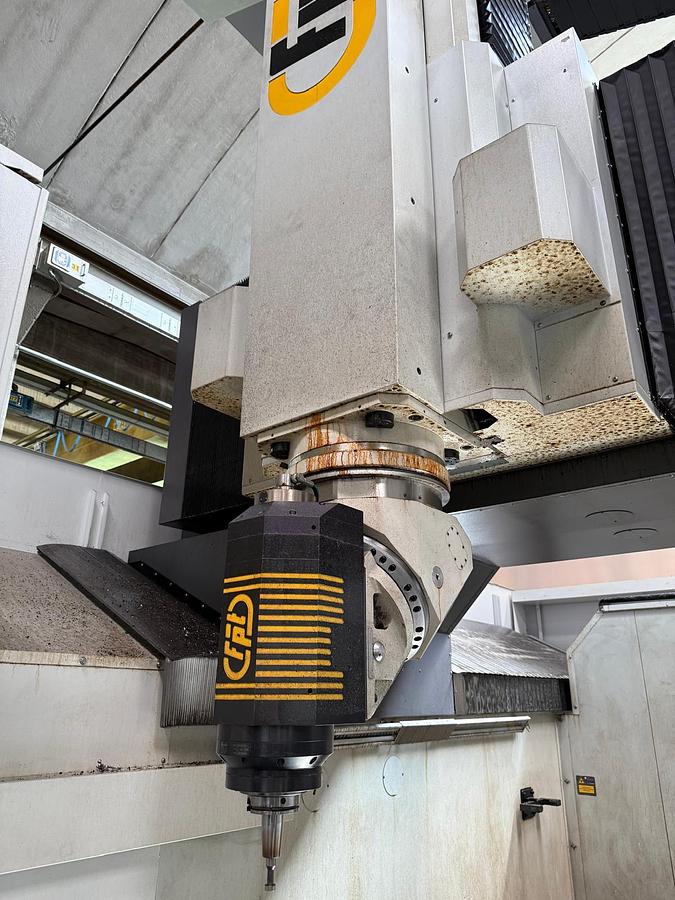

- universal continuos milling head: “C” axis +/- 270°; “A” axis +/- 185°; spindle motor power 43 kw.; spindle speeds 10 ÷ 12.000 rpm.; spindle taper HSK-A 100

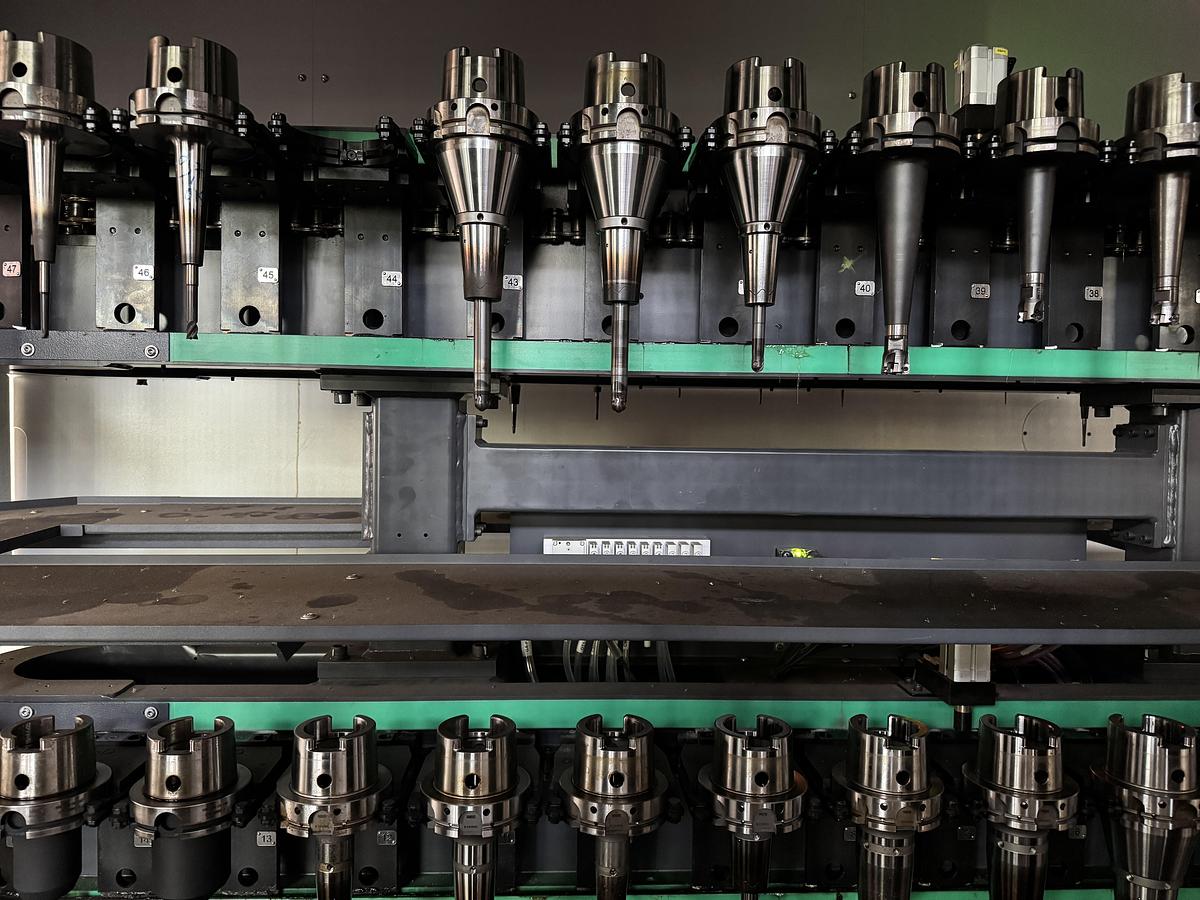

- 64 seats atc
- chipconveyor
