FPT RONIN EVO CNC FLOOR TYPE MILLING MACHINE

Technical specifications
Manufacturer | FPT |
Model | RONIN EVO CNC |
Year | 2011 |
Stock Number | RONIN-11 |
Transversal travel | 8.000 mm. |
Vertical travel | 2.500 mm. |
RAM travel | 1.500 mm. |
Longitudinal table travel | 1.500 mm. |
Spindle taper | ISO 50 |
Spindle motor power | 49 kw. |
Spindle speeds | 10 ÷ 7.000 Rpm. |
Working feeds | 0 ÷ 15.000 mm/min. |
Rapid feeds | 35.000 mm/min. |

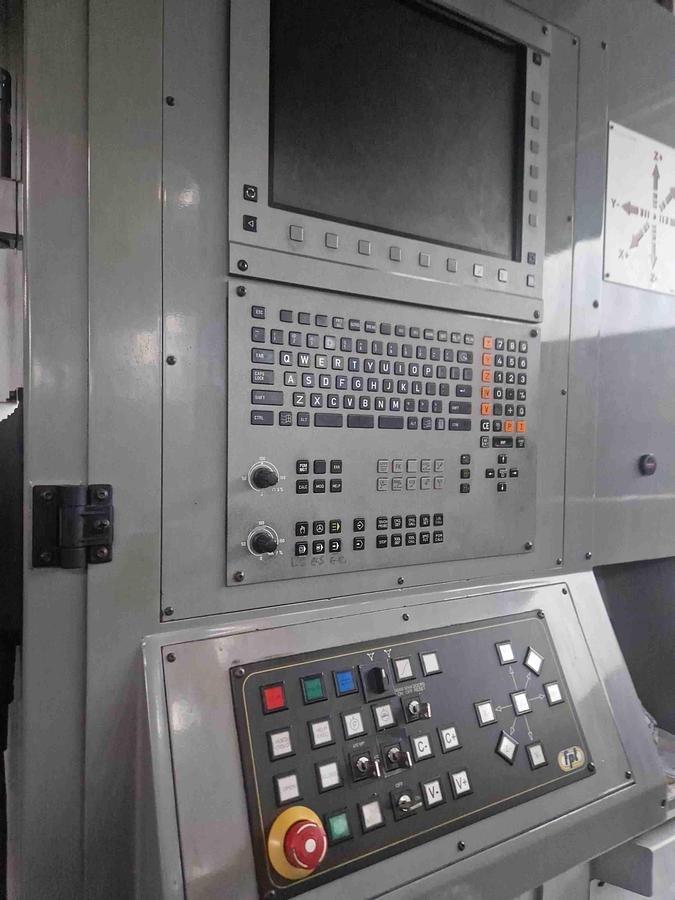

Cnc | CNC HEIDENHAIN TNC 530 |
Features and Accessories
Complete with:

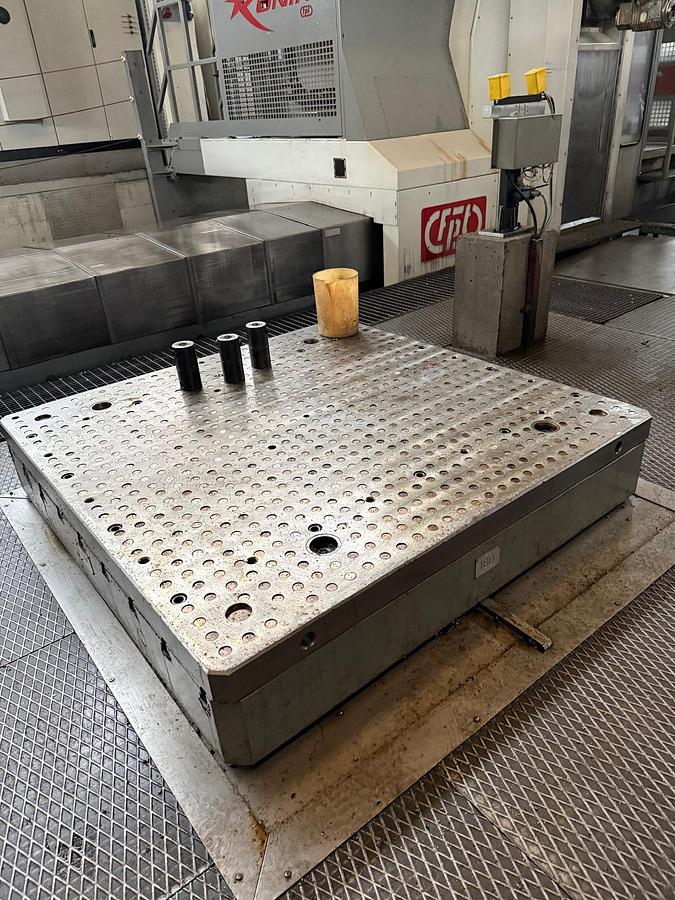

- cnc rotary table mod. TRT 15 cnc 2 axis: 2.000 x 2.000; capacity 15 tons.; travel (V) 1.500 mm.
- cnc rotary table mod. TRF 15 cnc: 1.500 x 1.500 mm.; capacity 15 tons.
- n. 1 universal continuos milling head

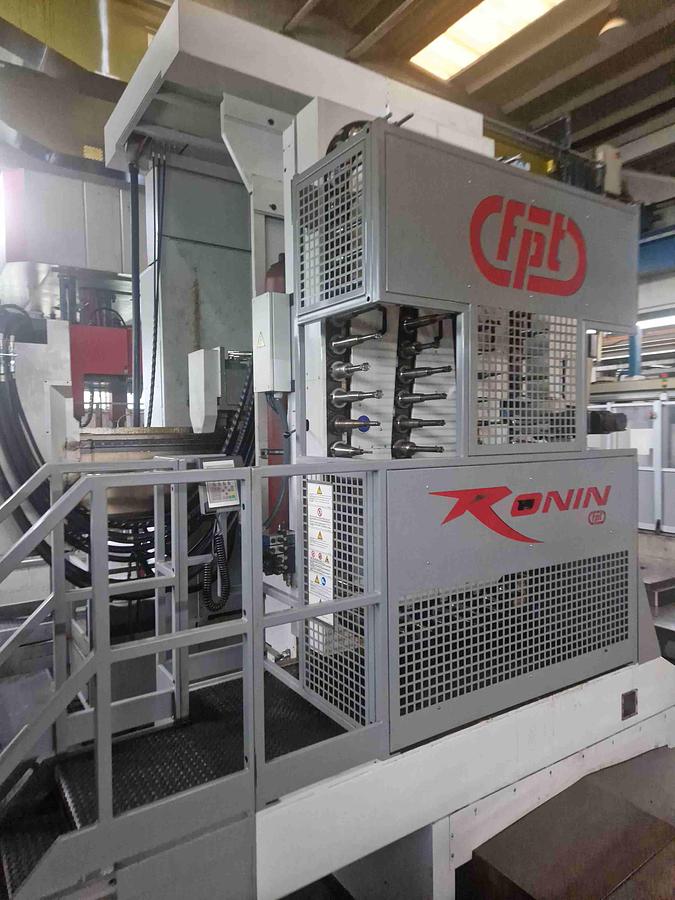

- 80 seats atc
- chipconveyor
