FPT RONIN EVO CNC FLOOR TYPE MILLING MACHINE
No longer available
Featured
Technical specifications
| Manufacturer | FPT |
| Model | RONIN EVO CNC |
| Year | 2018 |
| Stock Number | RONIN-18 |
| Transversal travel | 6.000 mm. |
| Vertical travel | 2.500 mm. |
| RAM travel | 1.250 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 42 Kw. |
| Spindle speeds | 10 ÷ 5.000 Rpm. |
| Working feeds | 0 ÷ 15.000 mm/min. |
| Rapid feeds | 35.000 mm/min. |

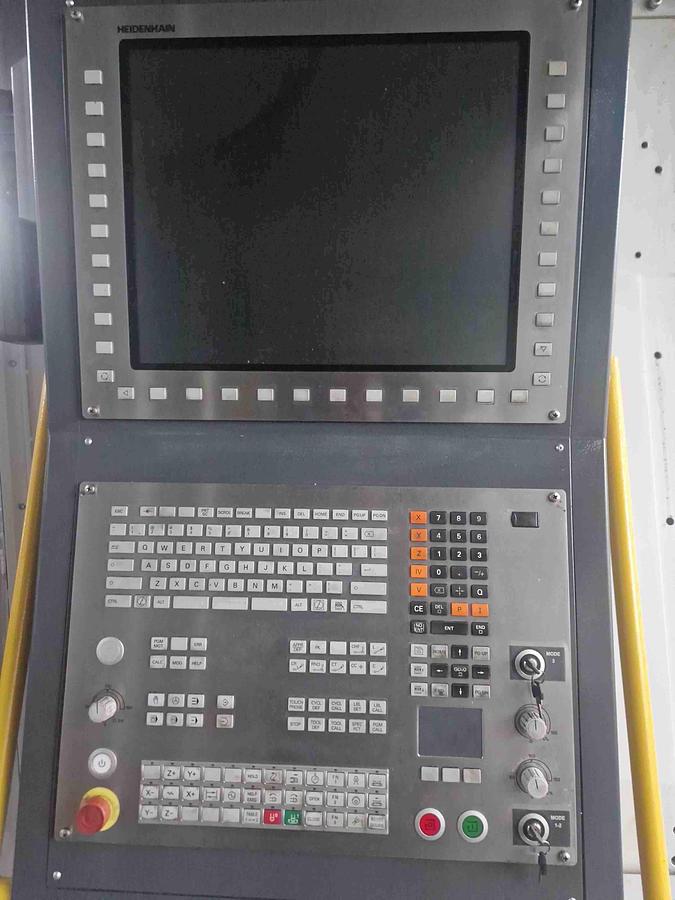

| Cnc | CNC HEIDENHAIN 640 |
Features and Accessories
Complete with:

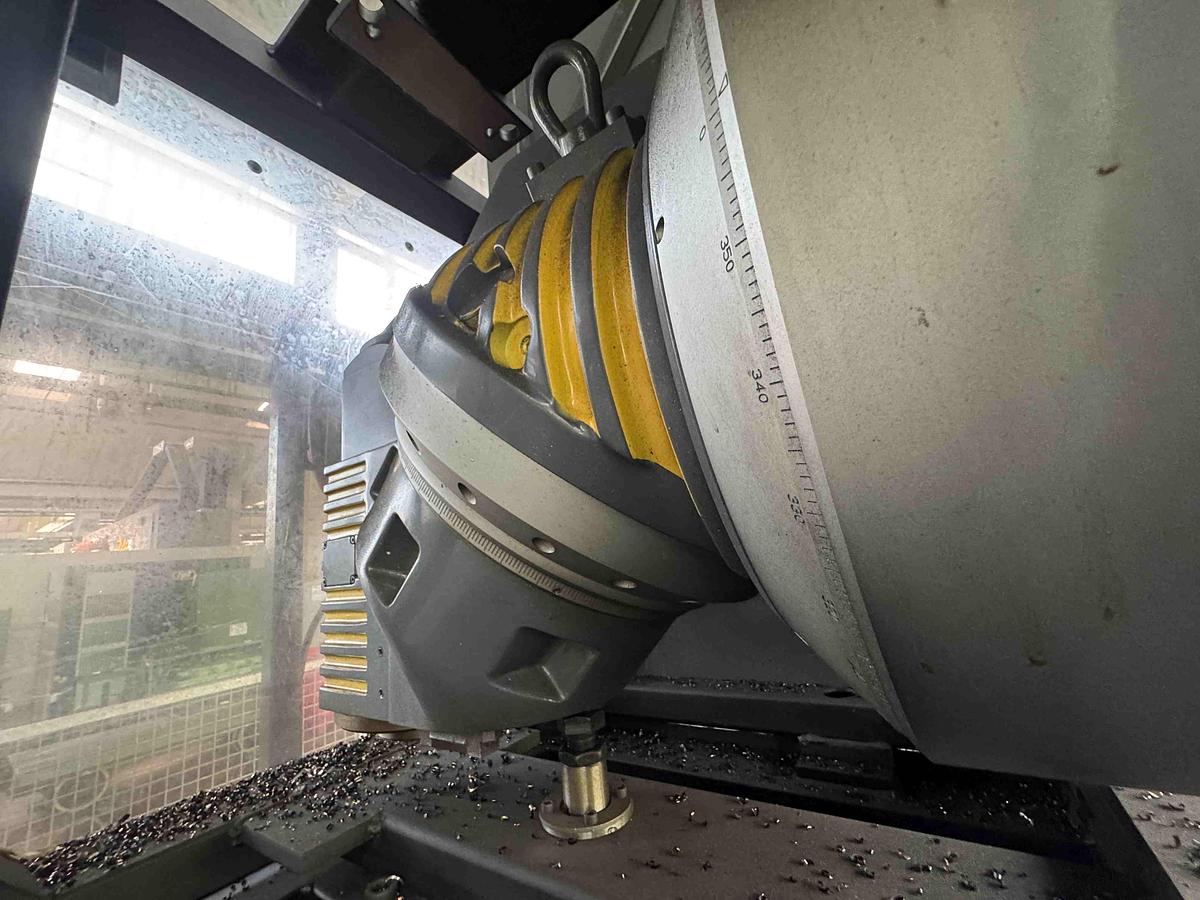

- n. 1 universal continuos milling head
- n. 1 horizontal head

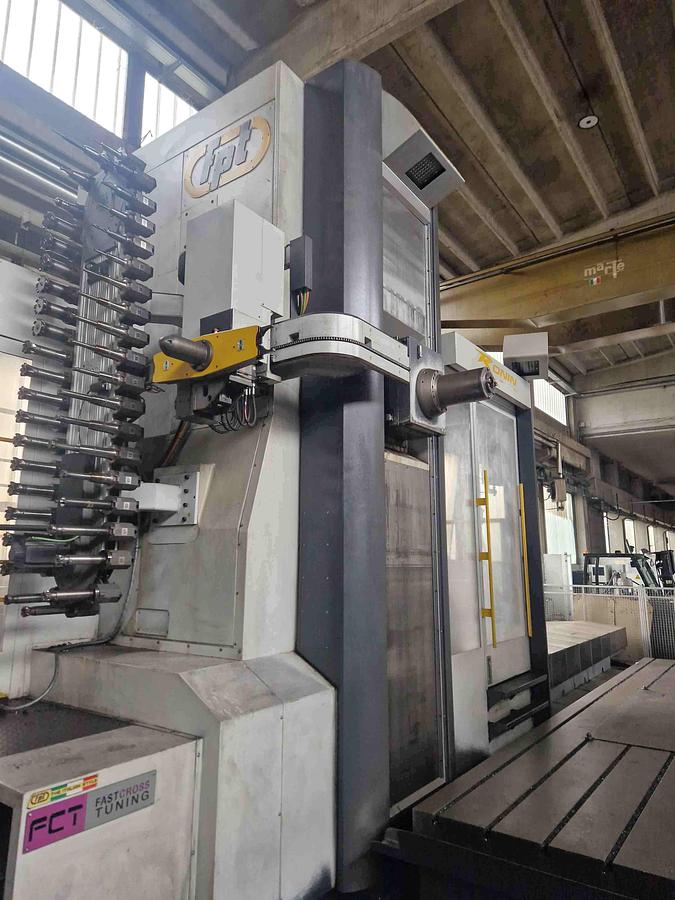

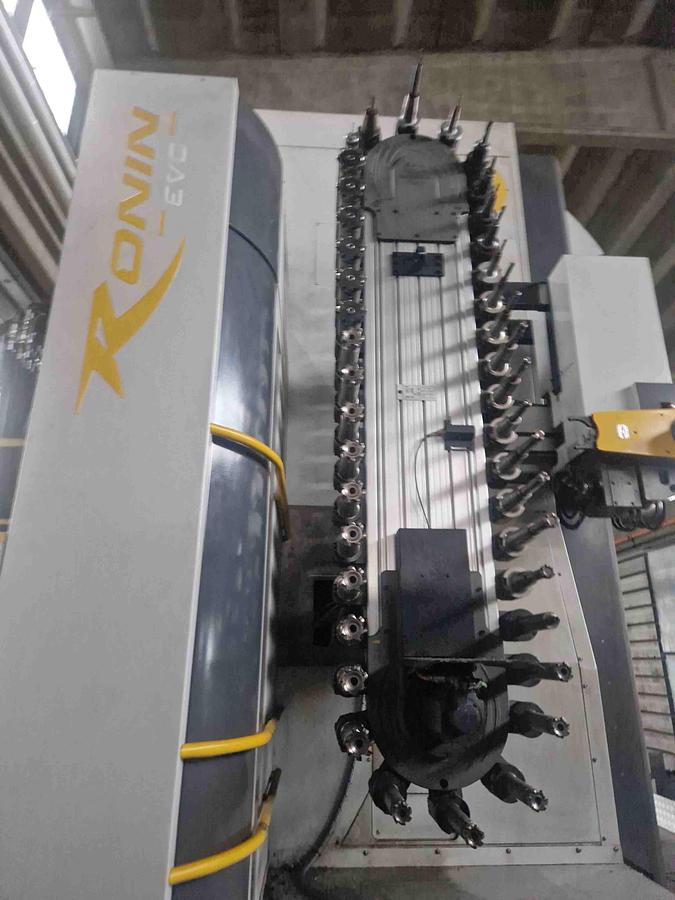

- 40 seats atc
- heads changer

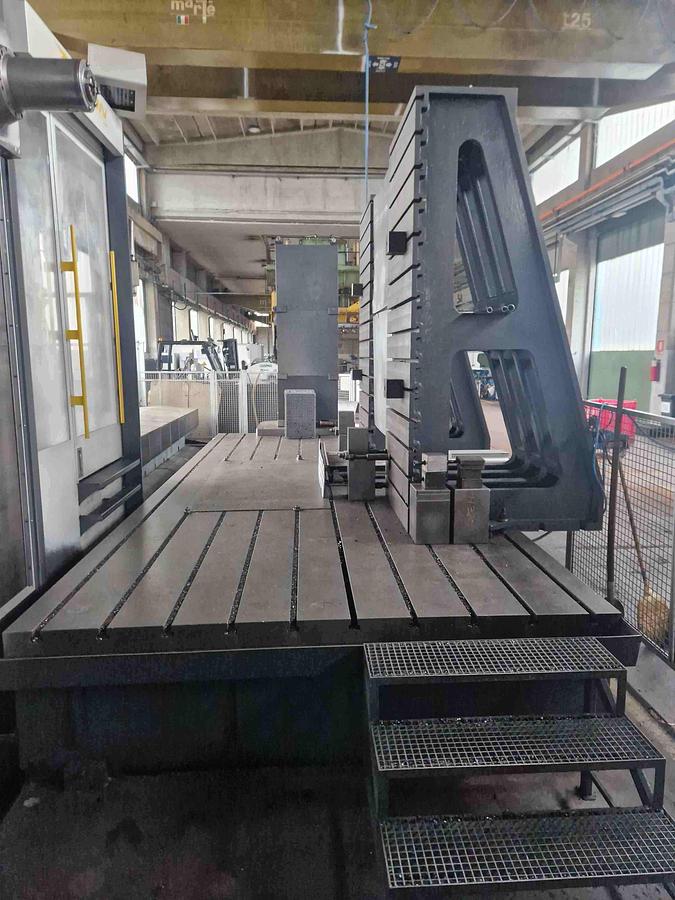

- n. 1 floor plate 6.000 x 2.500 mm.
- n. 2 angle plates 1.000 x 1.200 x 2.500 h mm.
- chipconveyor
