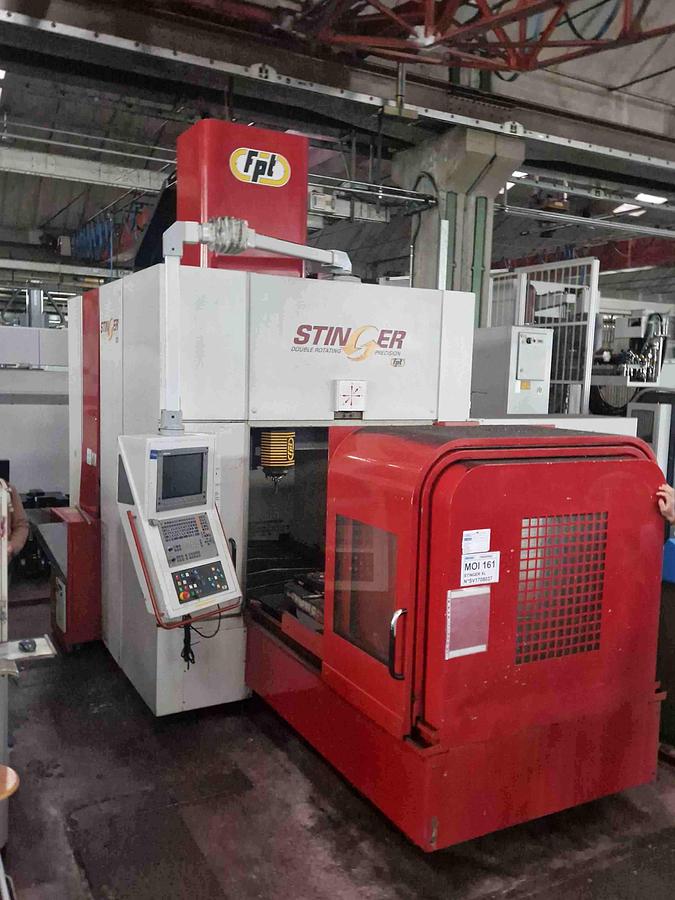

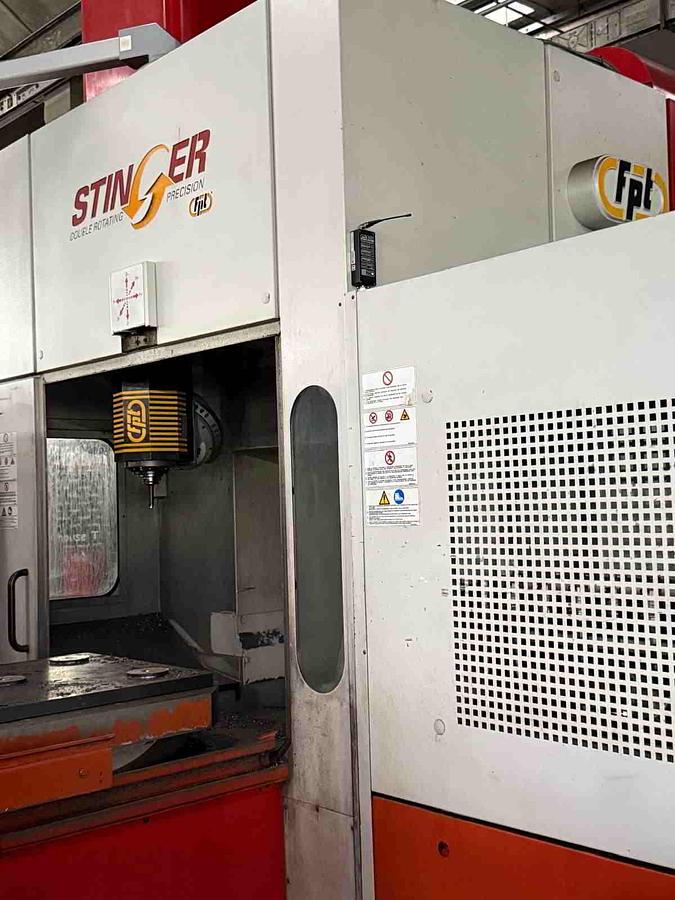

FPT STINGER PORTAL MILLING MACHINE
Technical specifications
| Manufacturer | FPT |
| Model | STINGER |
| Year | 2008 |
| Stock Number | STINGER |
| Table | 1.200 x 1.000 mm. |
| Passage between columns | 1.430 mm. |
| Max. working height | 905 mm. |
| Portal travel | 1.750 mm. |
| Transversal head travel | 1.400 mm. |
| Vertical head travel | 600 mm. |
| Max. weight on table | 3 Tons. |

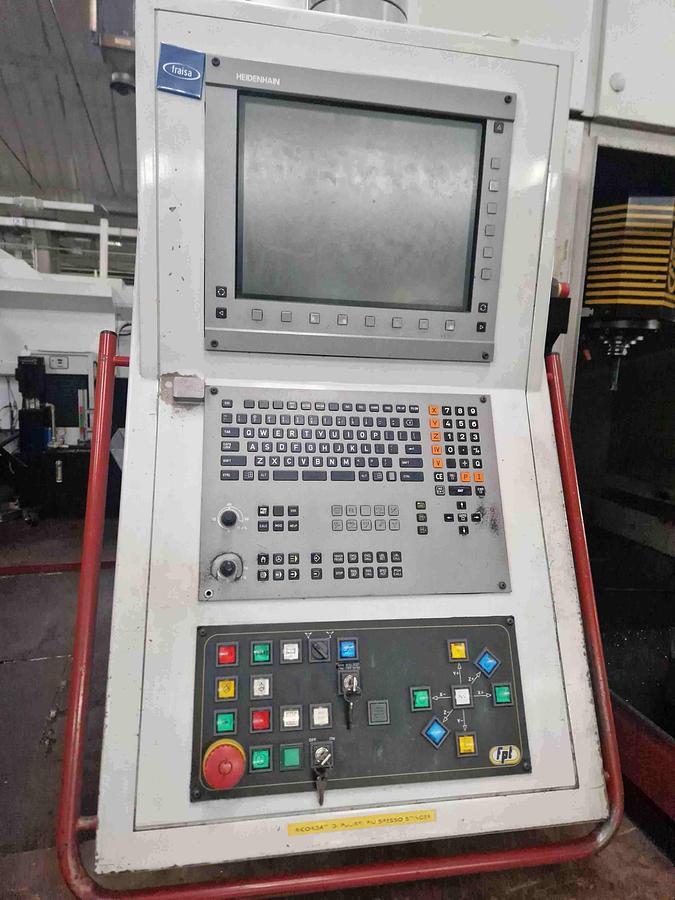

| Cnc | CNC HEIDENHAIN 530 |
| Total weight | 18 Tons. |
Features and Accessories
Complete with:
- rotary table
- n. 1 universal continuos milling head: spindle motor power 22 kw.; spindle speeds 18.000 rpm.; spindle taper HSK-A 63

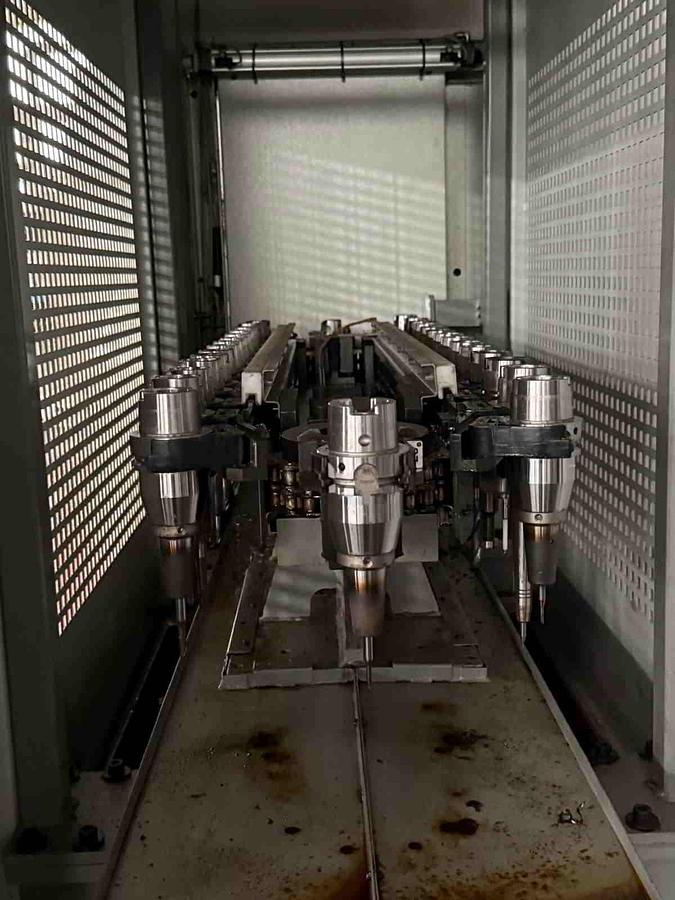

- 30 seats atc
- chipconveyor
