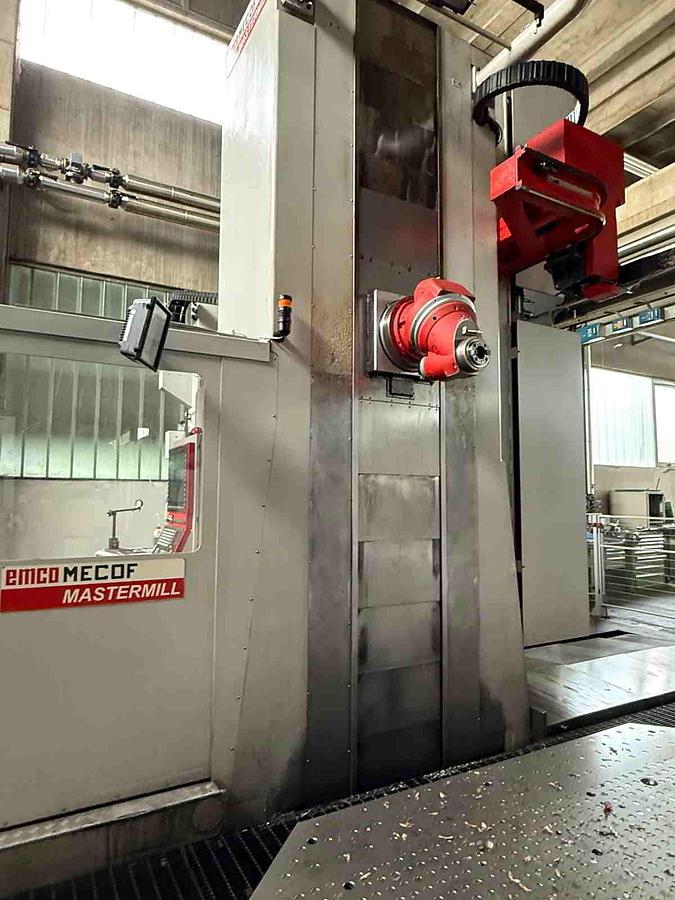

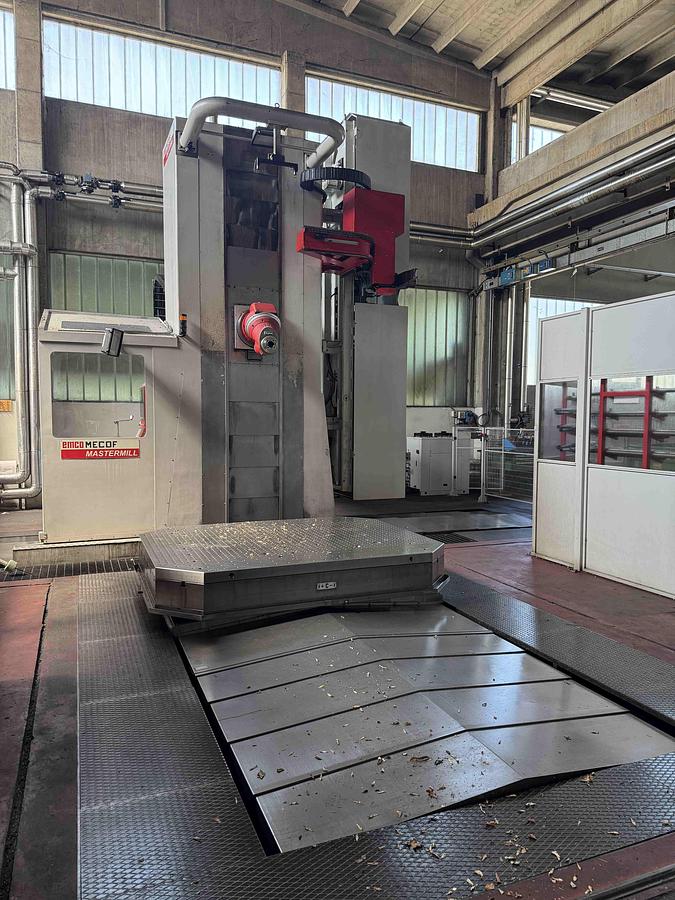

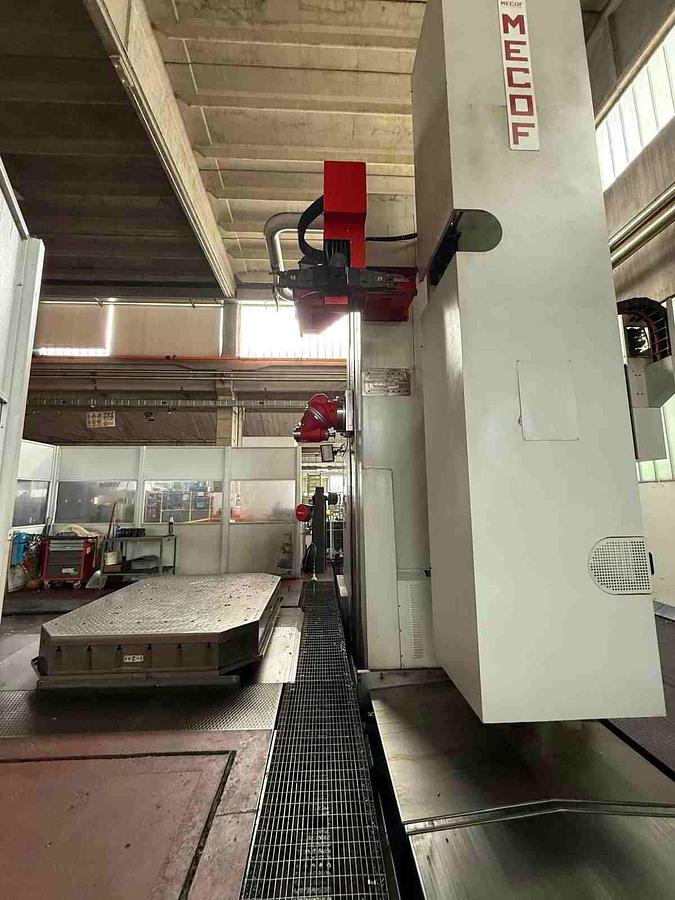

MECOF MASTERMILL HPC 3 CNC FLOOR TYPE MILLING MACHINE

Technical specifications
Manufacturer | MECOF |
Model | MASTERMILL HPC 3 CNC |
Year | 2014 |
Stock Number | HPC3 |
Transversal travel | 4.000 mm. |
Vertical travel | 3.000 mm. |
RAM travel | 1.600 mm. |
Spindle taper | ISO 50 |
Spindle motor power | 38 Kw. |
Spindle speeds | 15 ÷ 6.000 Rpm. |
Working feeds | 0 ÷ 30.000 mm/min. |

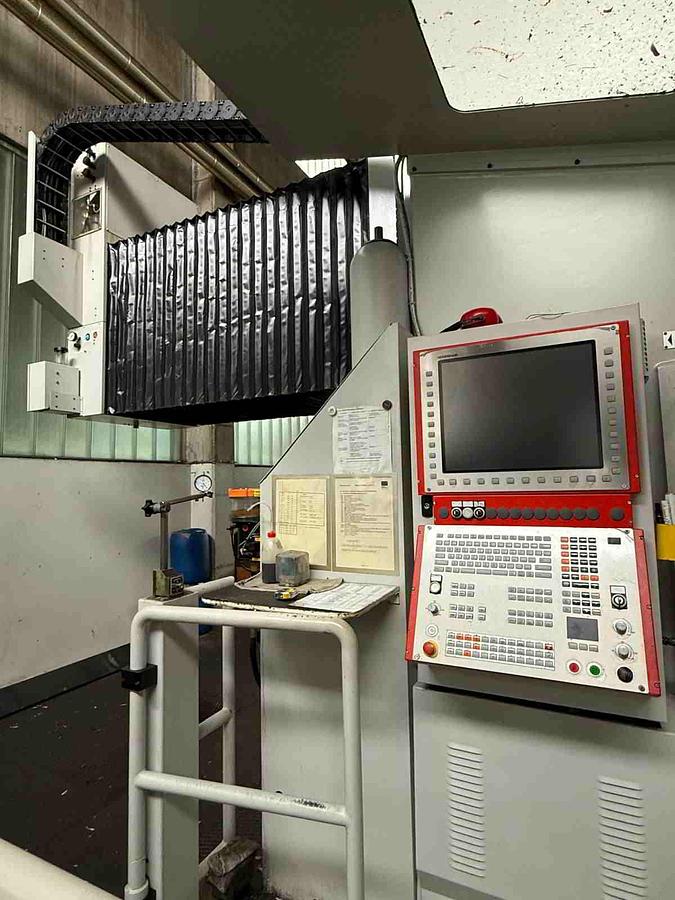

Cnc | CNC HEIDENHAIN TNC 530 |
Features and Accessories
Complete with:
- 80 seats atc

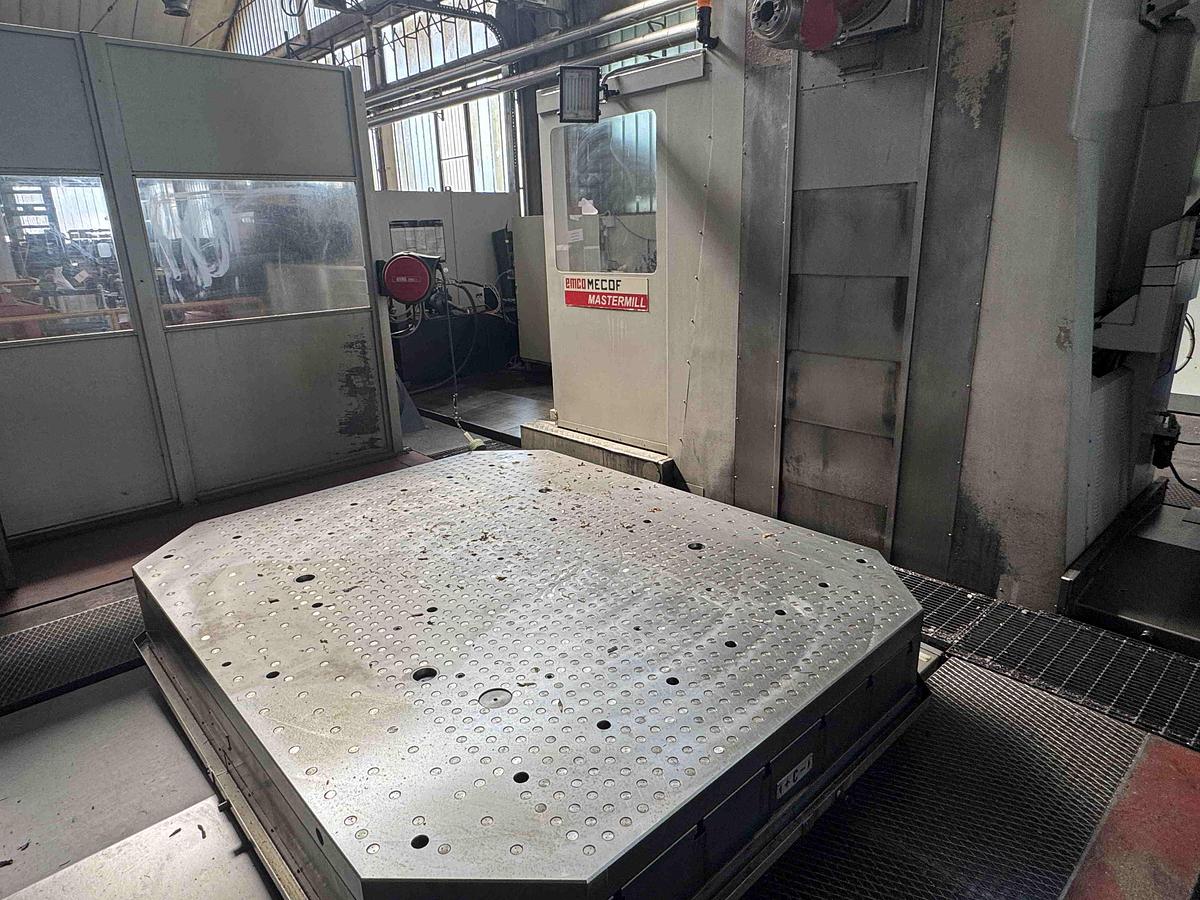

- n. 1 cnc rotary table 2.500 x 2.000 mm.; capacity 28 tons.; travel 1.500 mm.

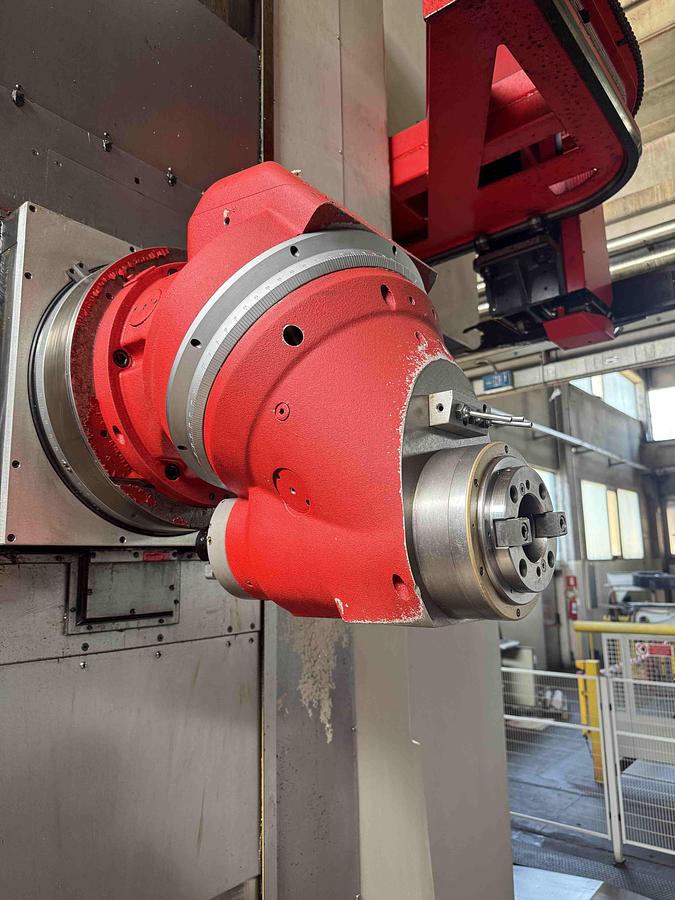

- n. 1 universal continuos milling head
- chipconveyor
