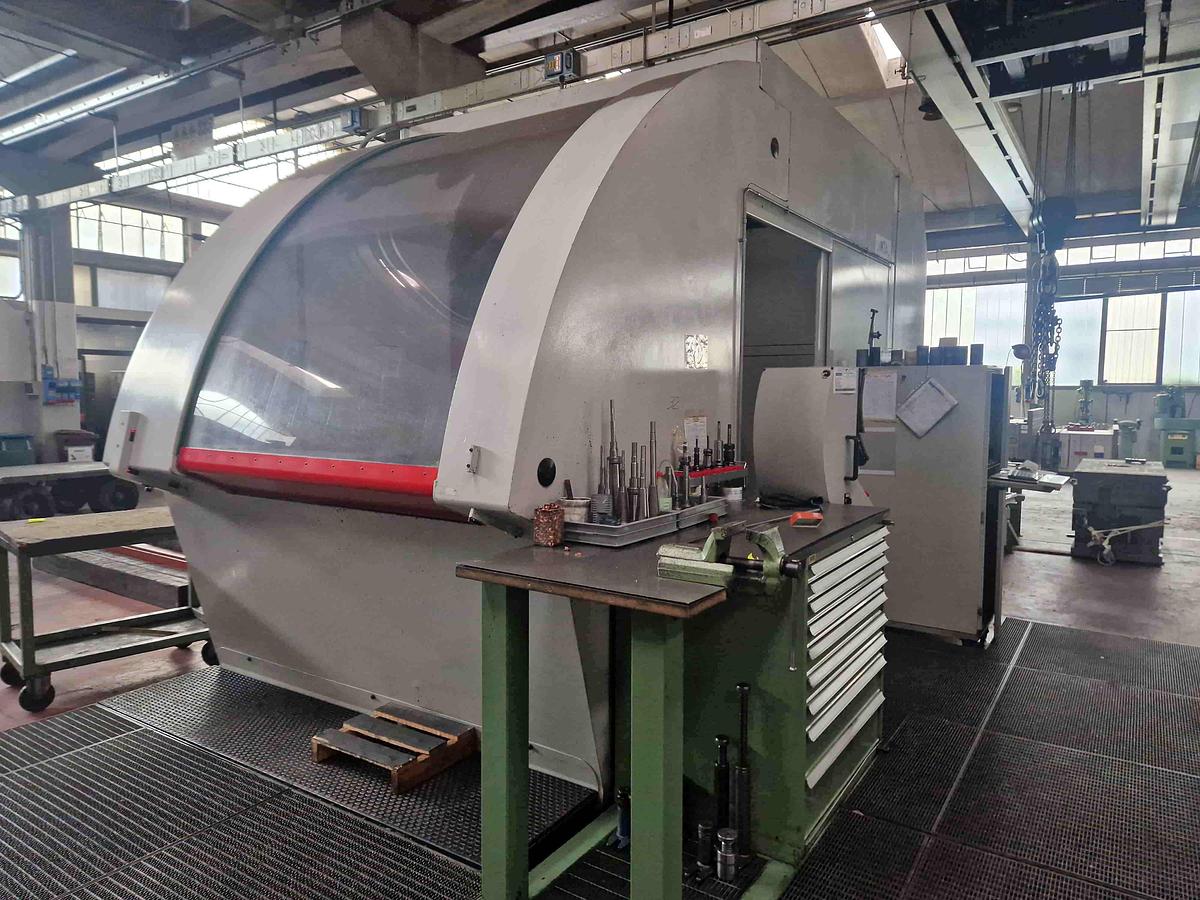

IMSA MF 1000 BB CNC DEEP HOLES DRILLING MACHINE FOR DIES
Technical specifications
| Manufacturer | IMSA |
| Model | MF 1000 BB CNC |
| Year | 2002 |
| Stock Number | MF-1000-BB |
| Max. working Ø | 40 mm. |
| Max. working lenght | 1.000 mm. |
| Spindle power | 10 Kw. |
| Spindle speeds | 4.200 Rpm. |
| Table | 1.000 x 800 mm. |
| Transversal travel | 1.650 mm. |
| Vertical travel | 1.000 mm. |

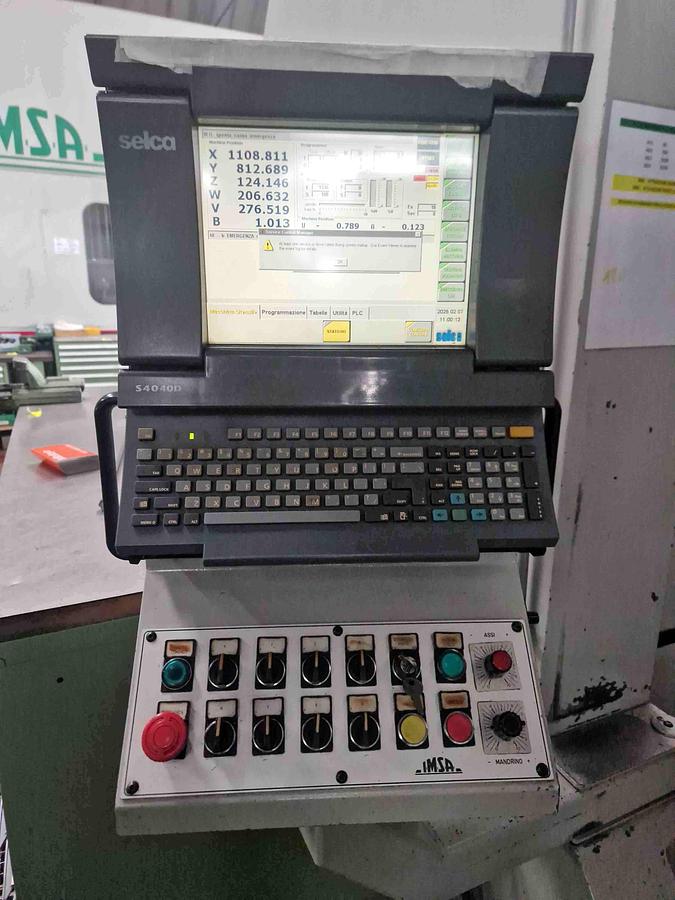

| Cnc | CNC SELCA S 4040 D |
| Total weight | 18 Tons. |
Features and Accessories
Complete with:

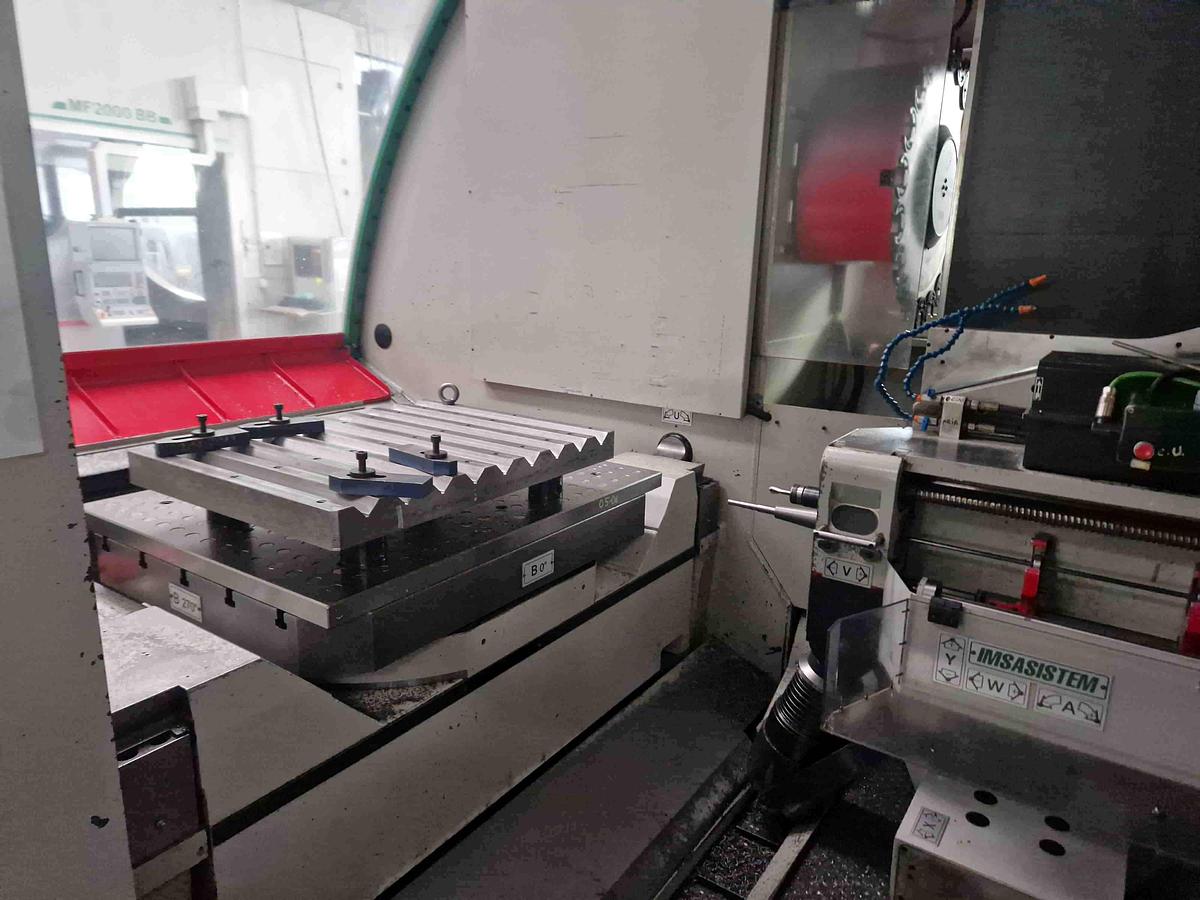

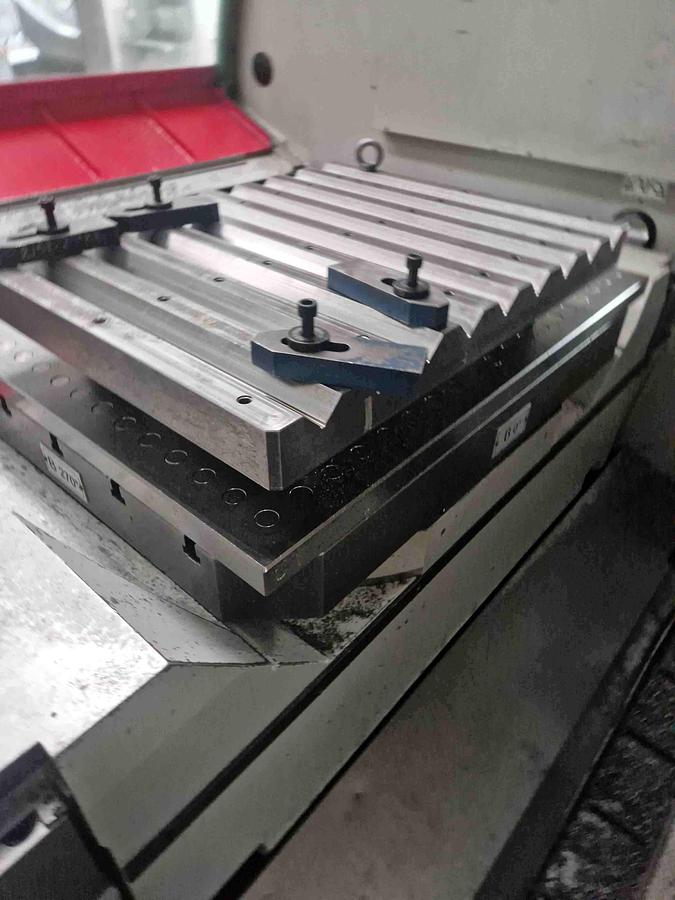

- rotary table

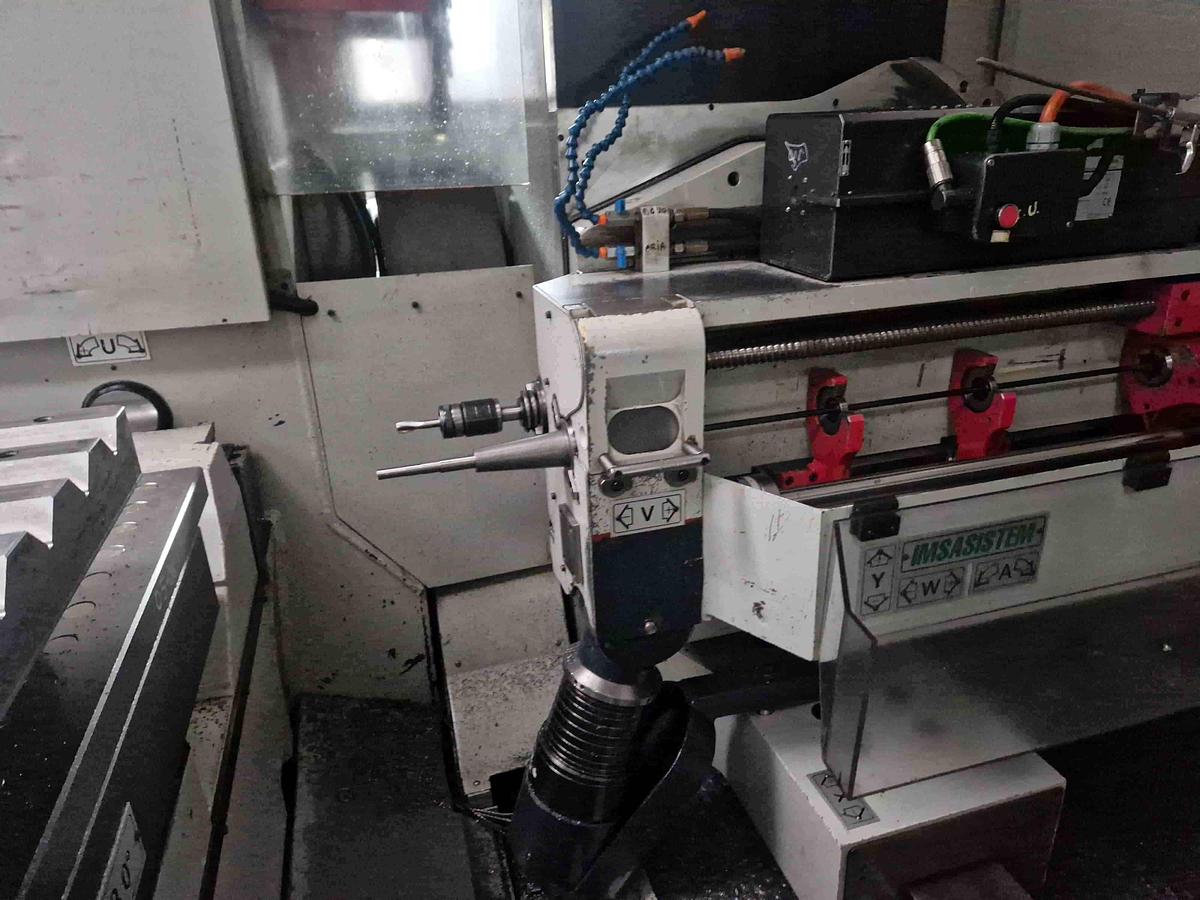

- swivelling head
- milling/threading spindle
- 20 seats atc
- chipconveyor
- drilling and milling tools
