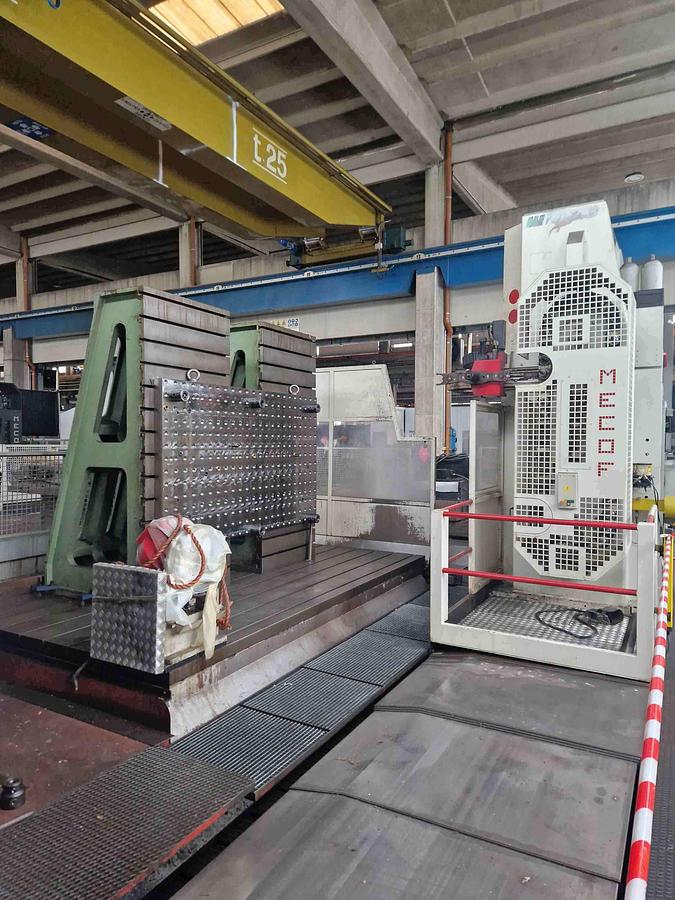

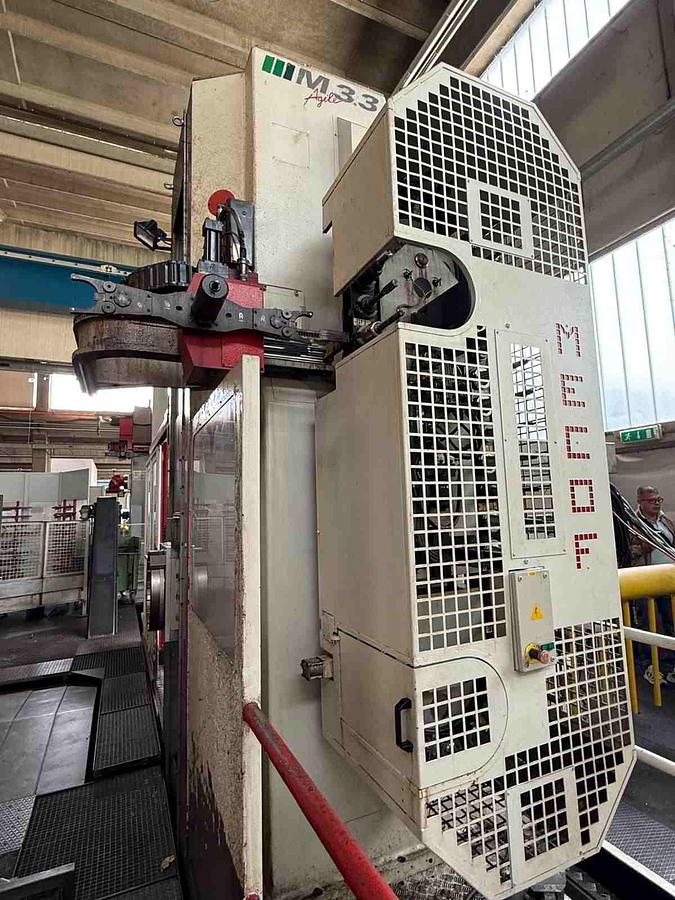

MECOF AGILE M 3 FLOOR TYPE MILLING MACHINE
No longer available
Technical specifications
| Manufacturer | MECOF |
| Model | AGILE M 3 CNC |
| Year | 2002 |
| Stock Number | AGILE-M3-2002 |
| Transversal travel | 8.000 mm. |
| Vertical travel | 1.850 mm. |
| RAM travel | 1.250 mm. |
| Table | 2.500 x 2.000 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 30 Kw. |
| Max. weight on table | 28 Tons. |
| Working feeds | 0 ÷ 20.000 mm/min. |

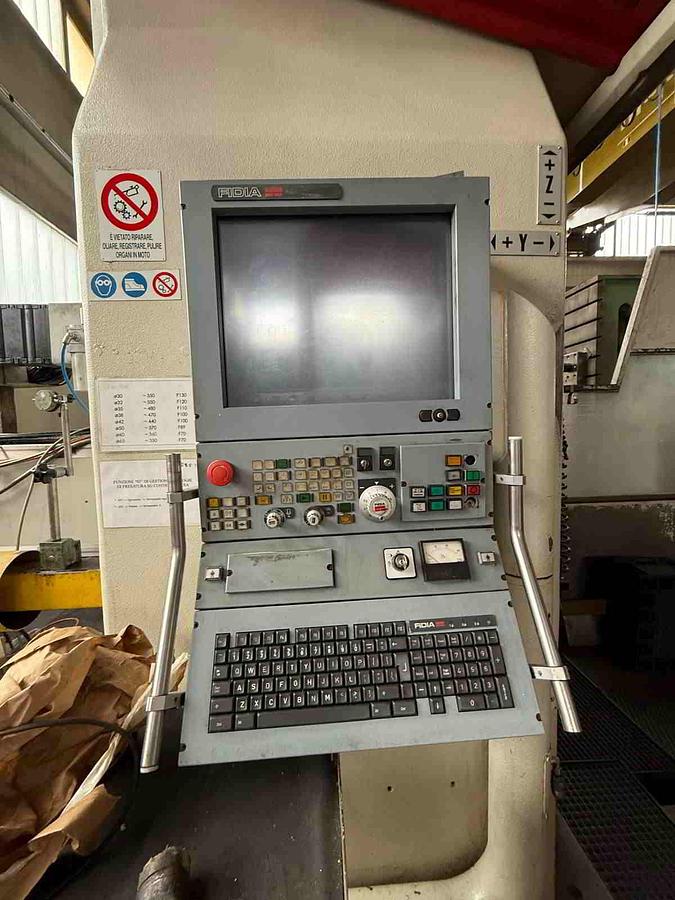

| Cnc | CNC FIDIA C 20/XPOWER |
Features and Accessories
Complete with:

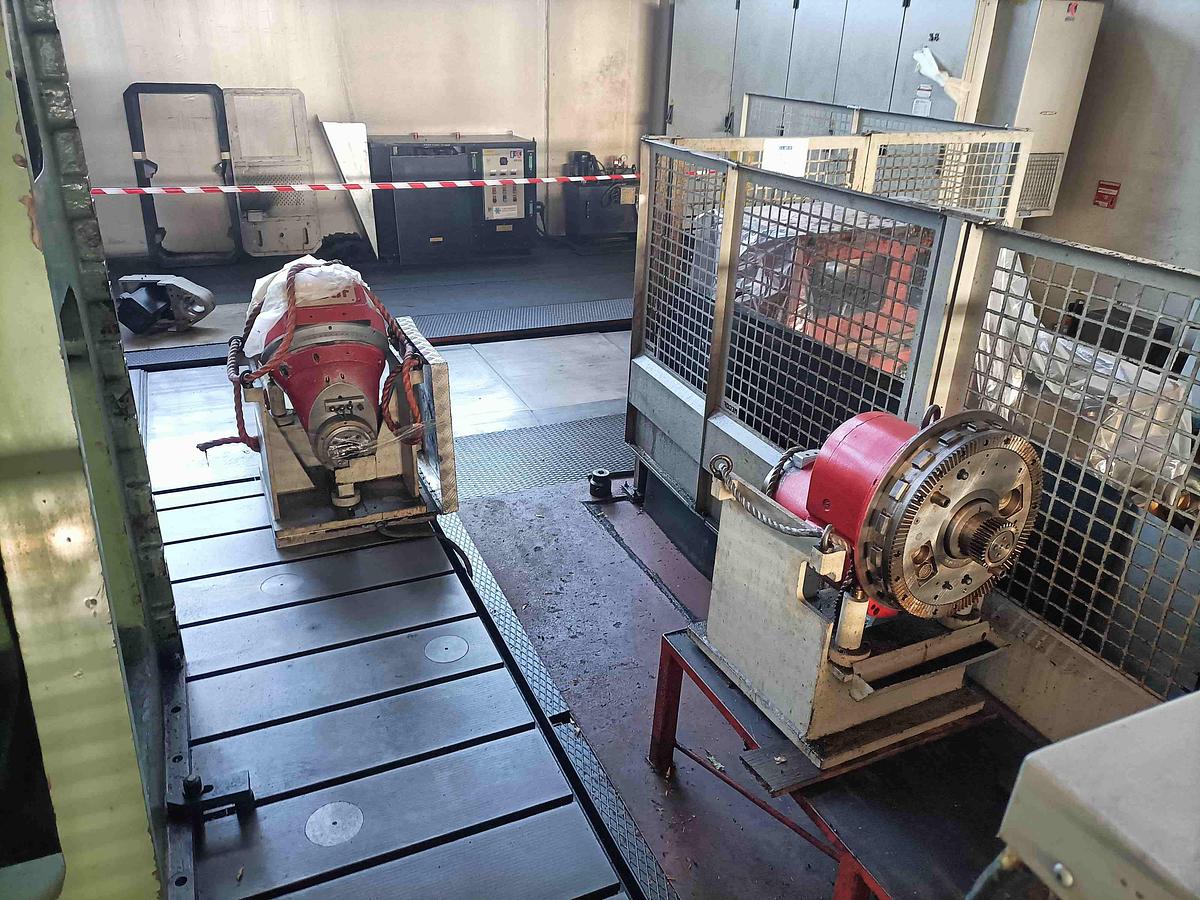

- n. 1 universal indexed milling head: C axis 1°, A axis continuos; 15 ÷ 4.000 rpm.
- n. 1 horizontal head: 10 ÷ 3.000 rpm.

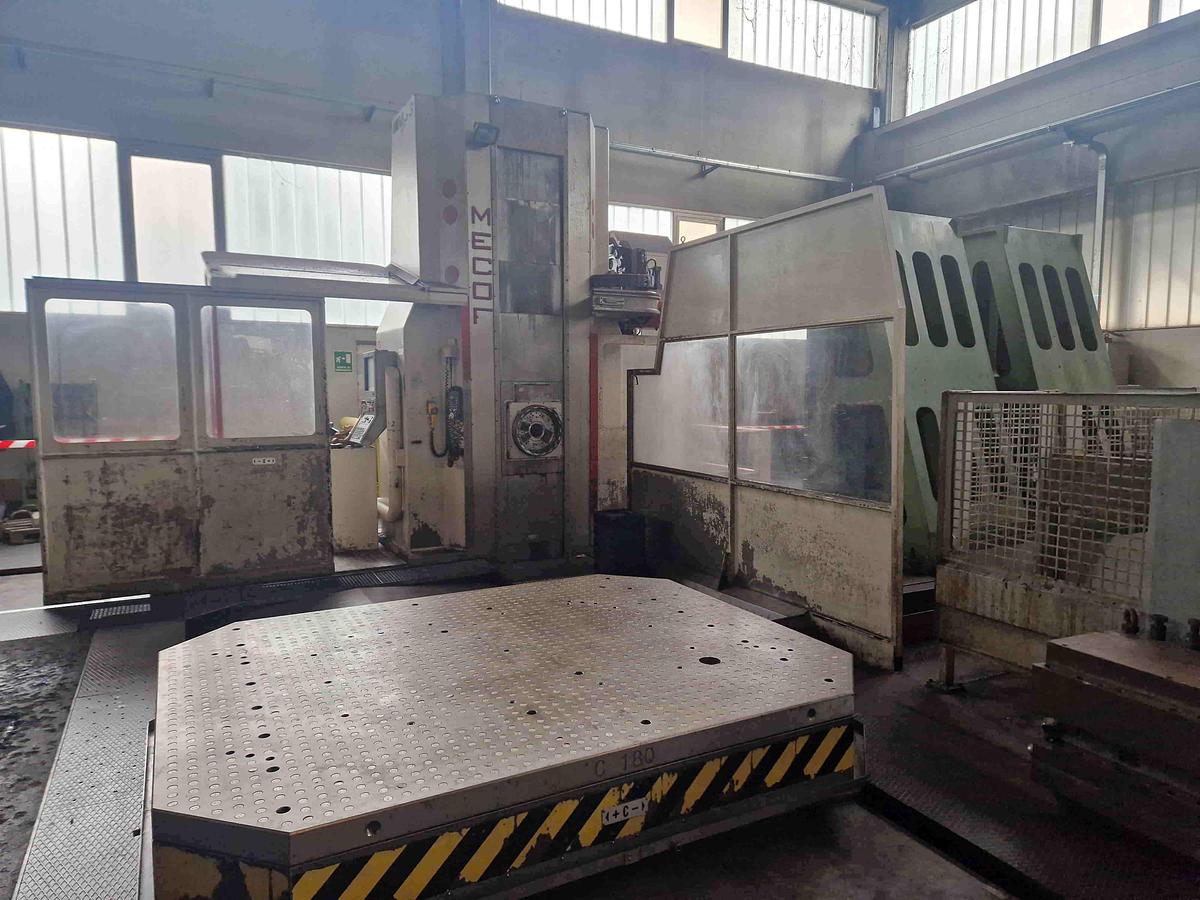

- n. 1 cnc rotary table - 2 axis:
size 2.500 x 2.000 mm.
max. weight on table 28 tons.
travel (V) 2.000 mm.
working feeds (V) 0 ÷ 6.000 mm/min.
- 41 seats atc
- n. 1 floor plate 4.000 x 2.500 mm.

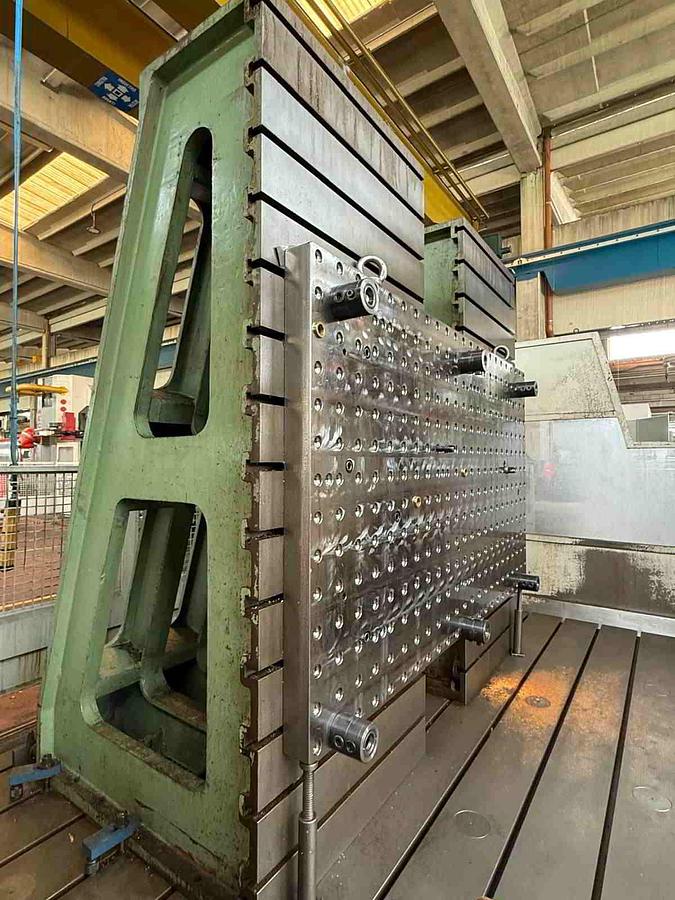

- n. 2 angle plates 1.000 x 1.200 x 2.500 h mm. each one
- chipconveyor
