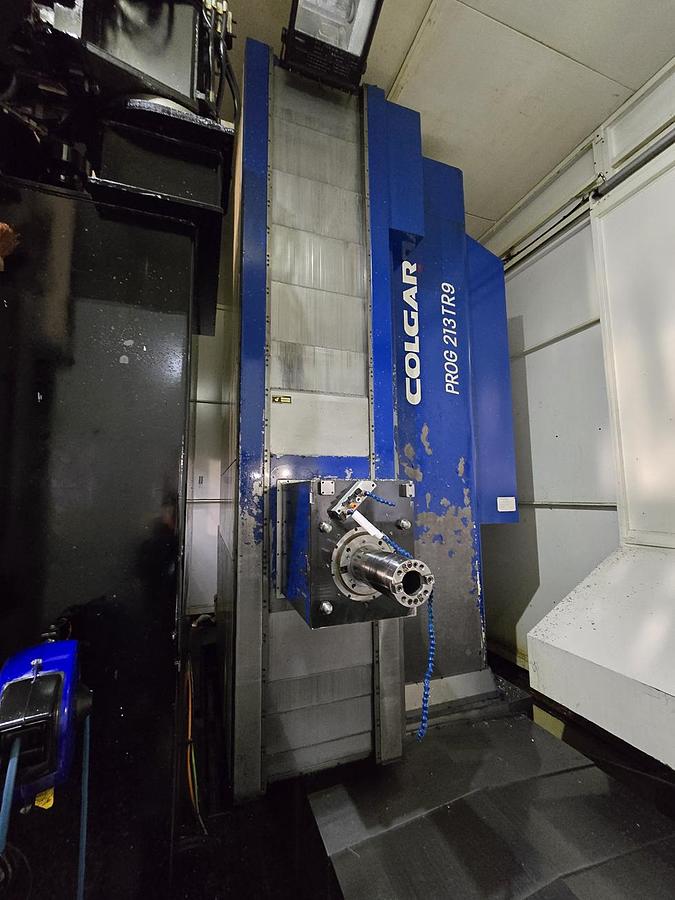

COLGAR PROGRAM 213 TR 9 CNC “T” TYPE HORIZONTAL BORER
Featured
Technical specifications
| Manufacturer | COLGAR |
| Model | PROGRAM 213 TR 9 CNC |
| Year | 2005 |
| Stock Number | 213-TR-9 |

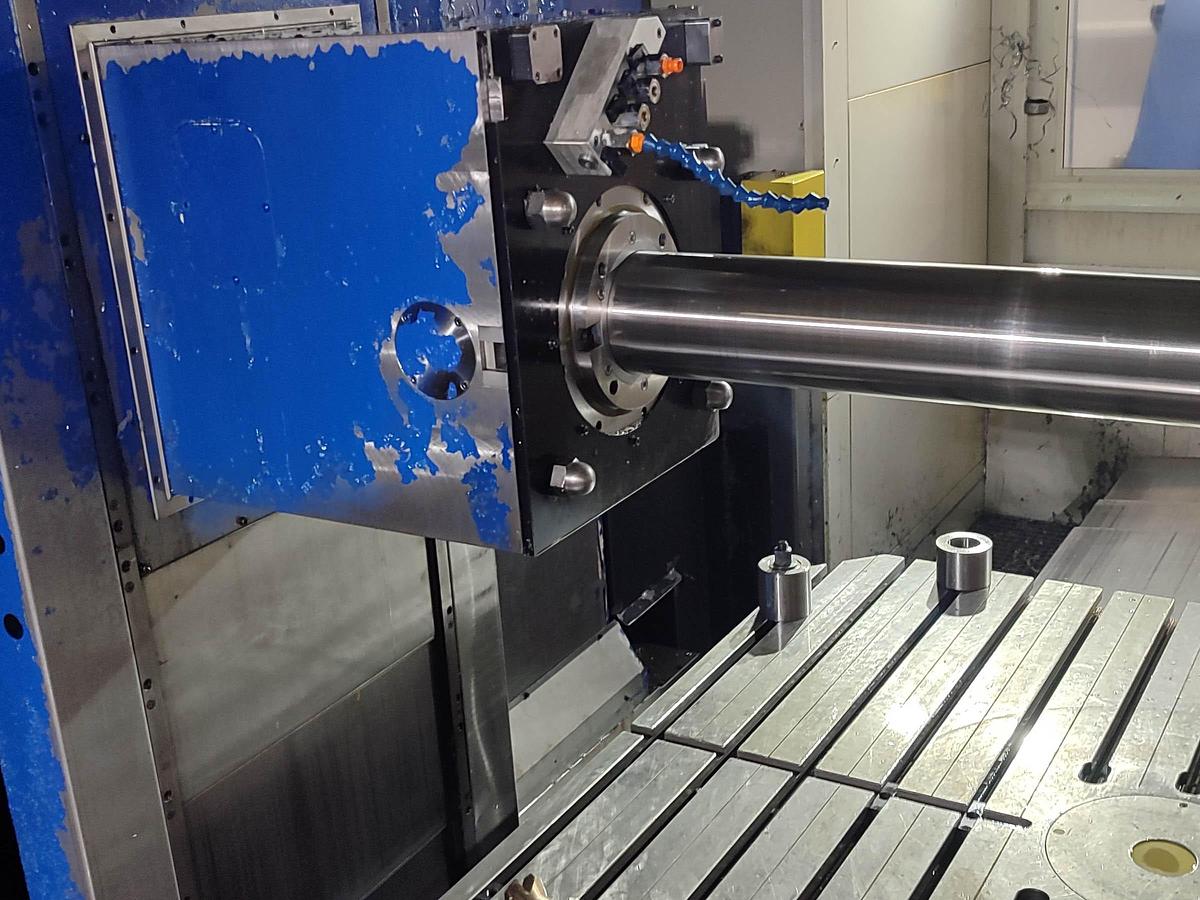

| Spindle | 130 mm. |
| Transversal travel | 3.500 mm. |
| Vertical travel | 2.000 mm. |
| Longitudinal travel | 2.000 mm. |
| Spindle travel | 700 mm. |
| Spindle taper | ISO 50 |

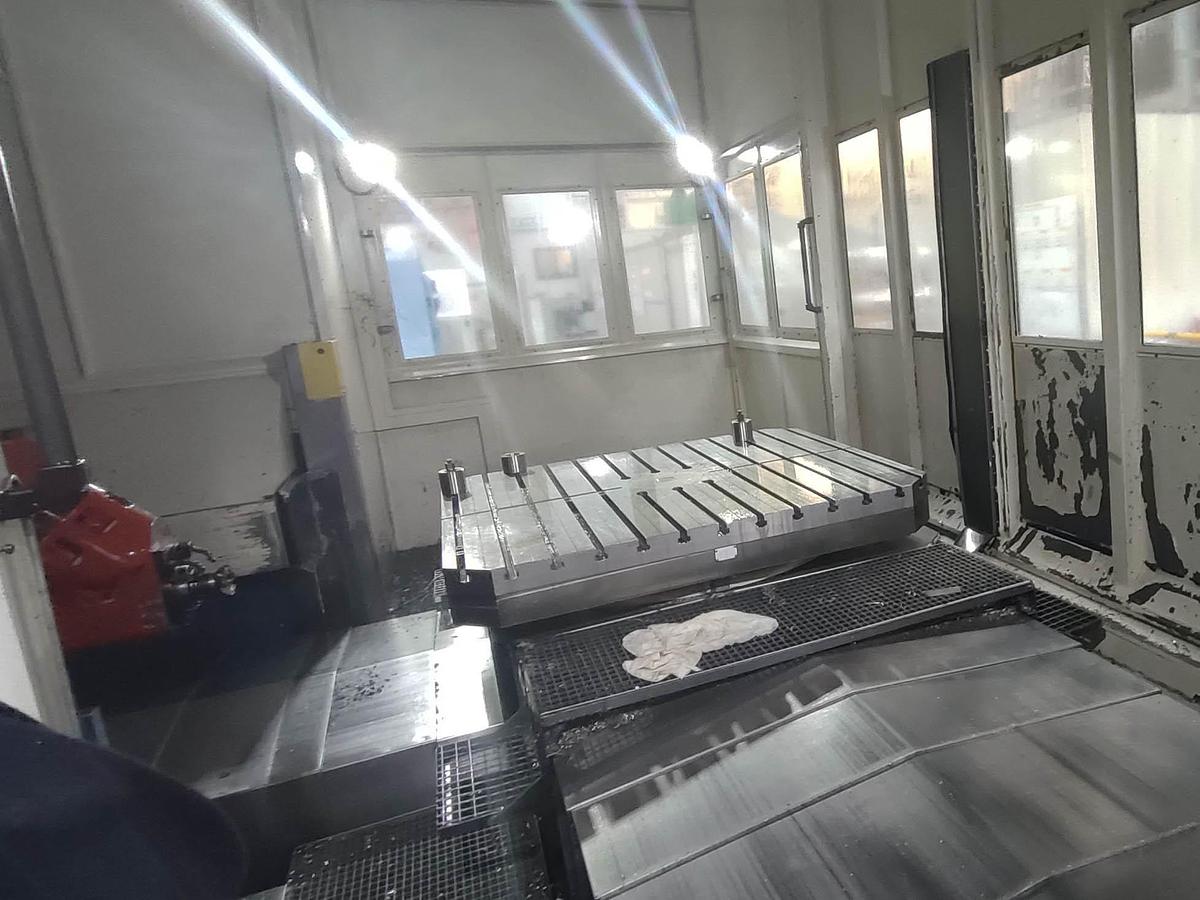

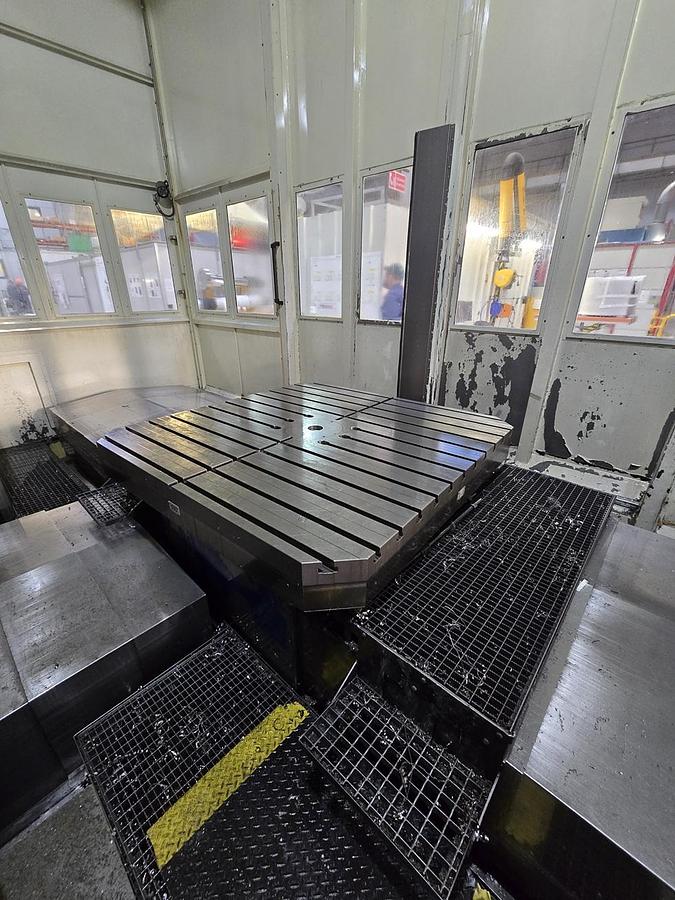

| Table | 1.600 x 1.600 mm. |
| Max. weight on table | 10 Tons. |
| Spindle motor power | 41 Kw. |
| Spindle speeds | 4 ÷ 4.000 Rpm. |

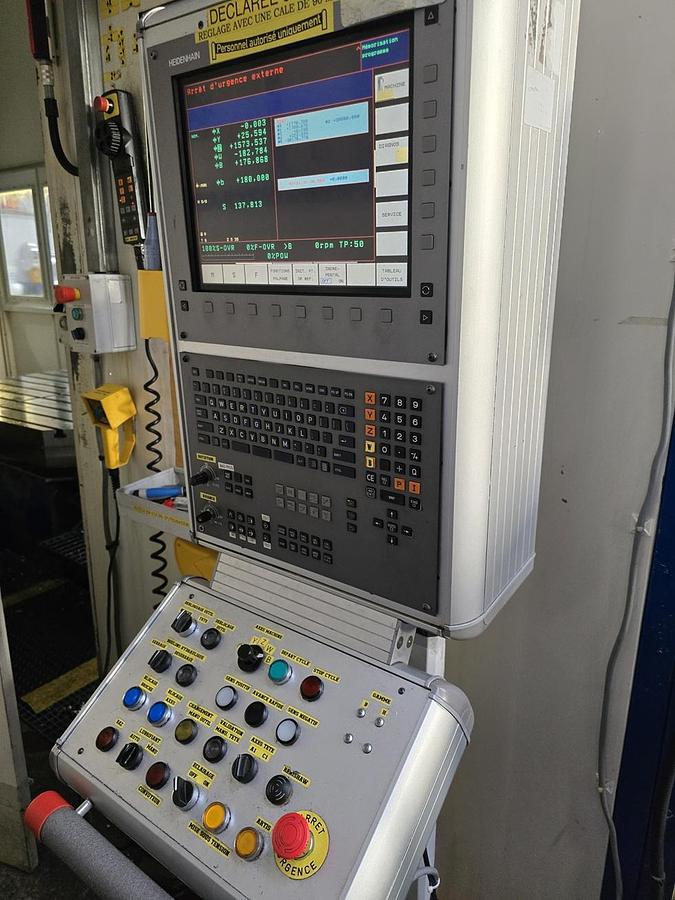

| Cnc | CNC HEIDENHAIN TNC 530 |
Features and Accessories
Complete with:

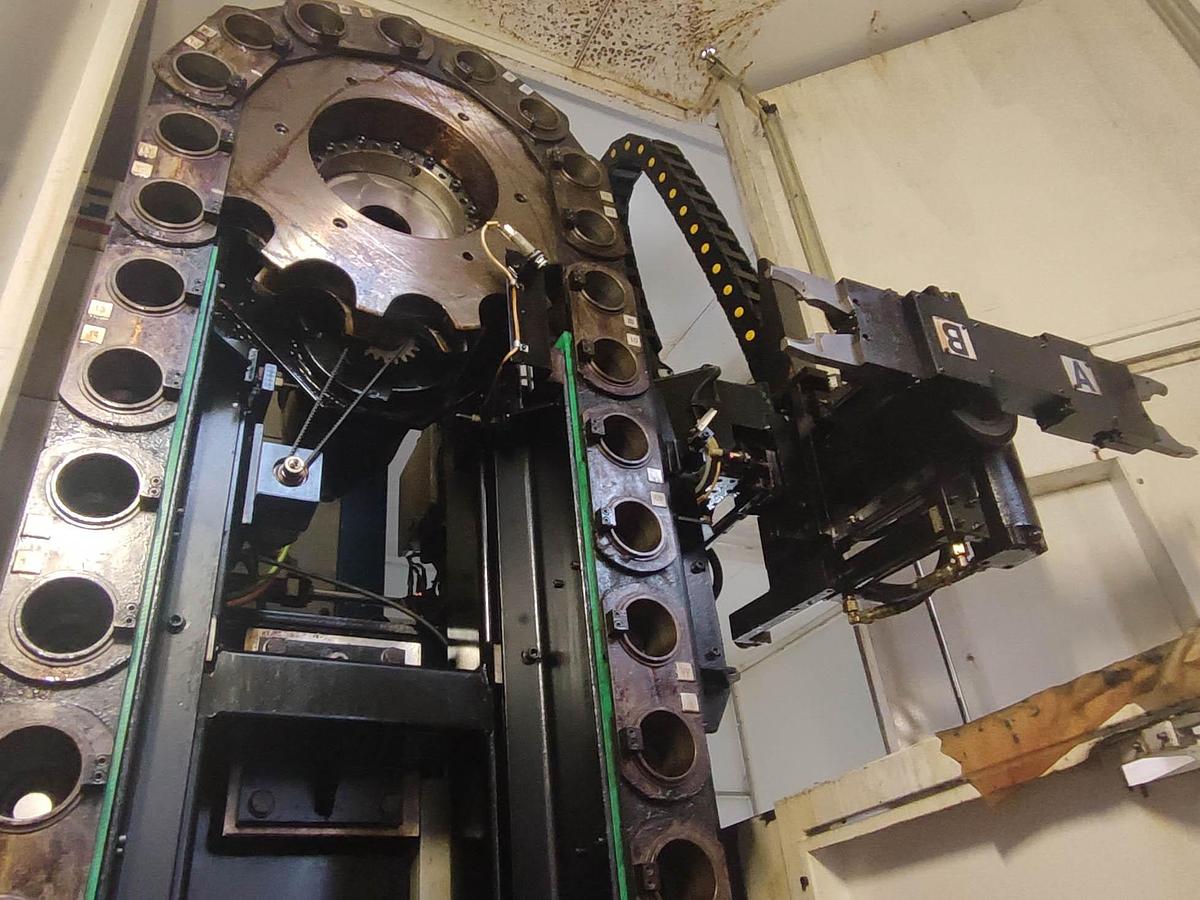

- 50 seats atc

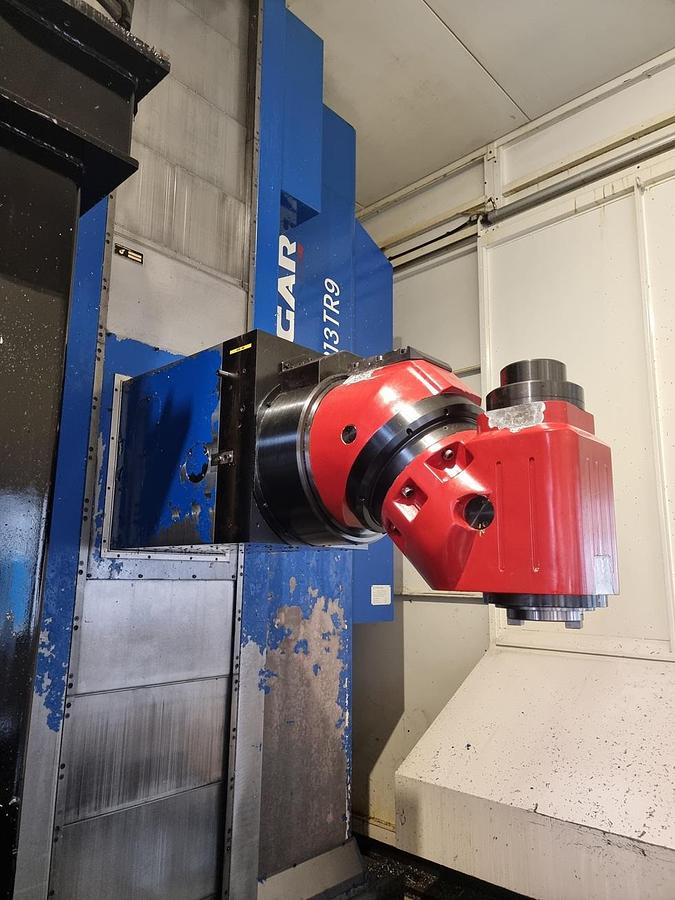

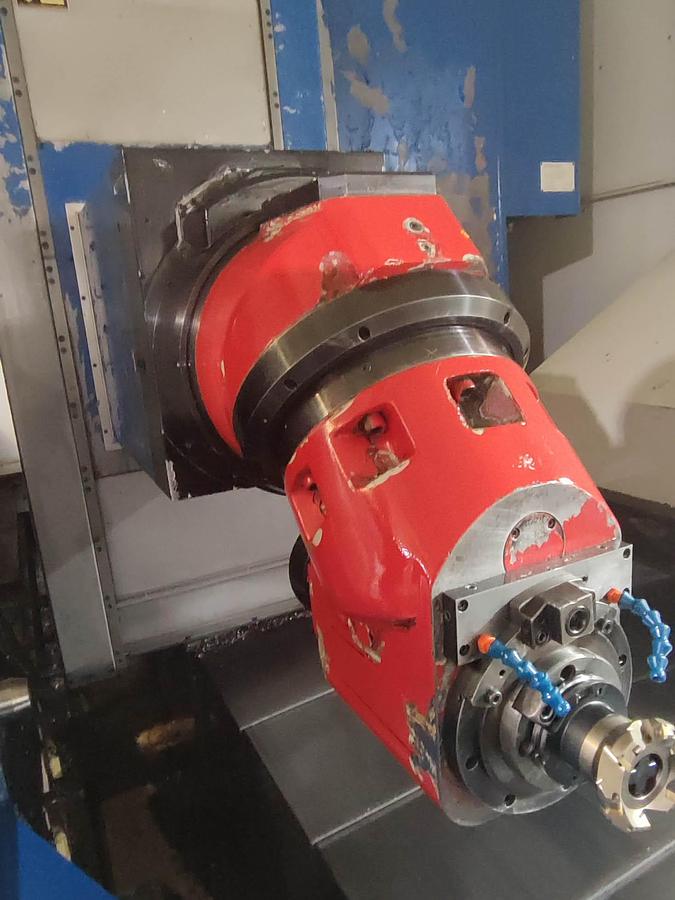

- n. 2 universal indexed milling head: A axis 1°, B axis 1°

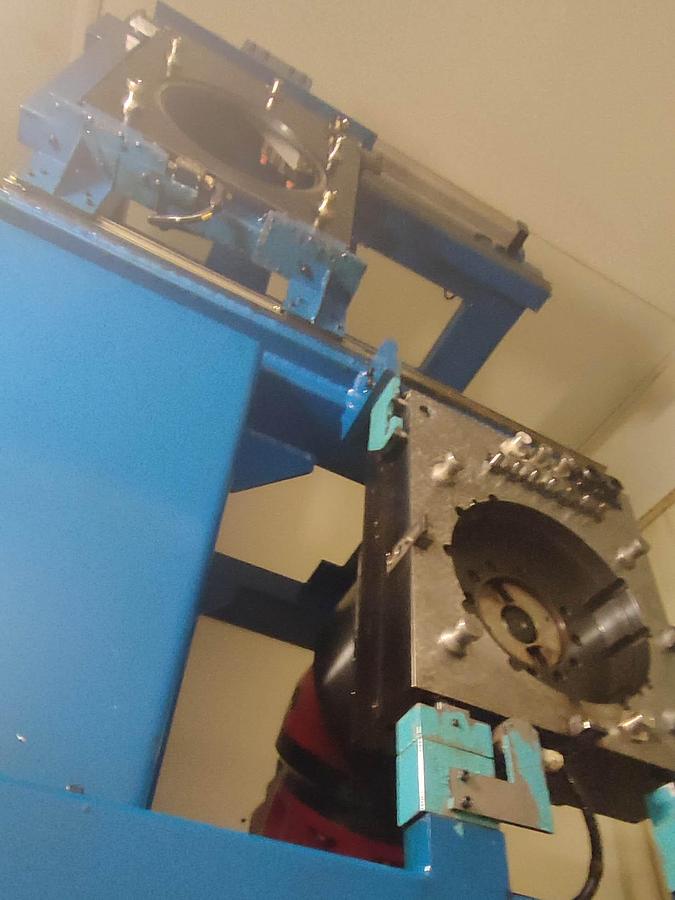

- 3 seats automatic heads changer

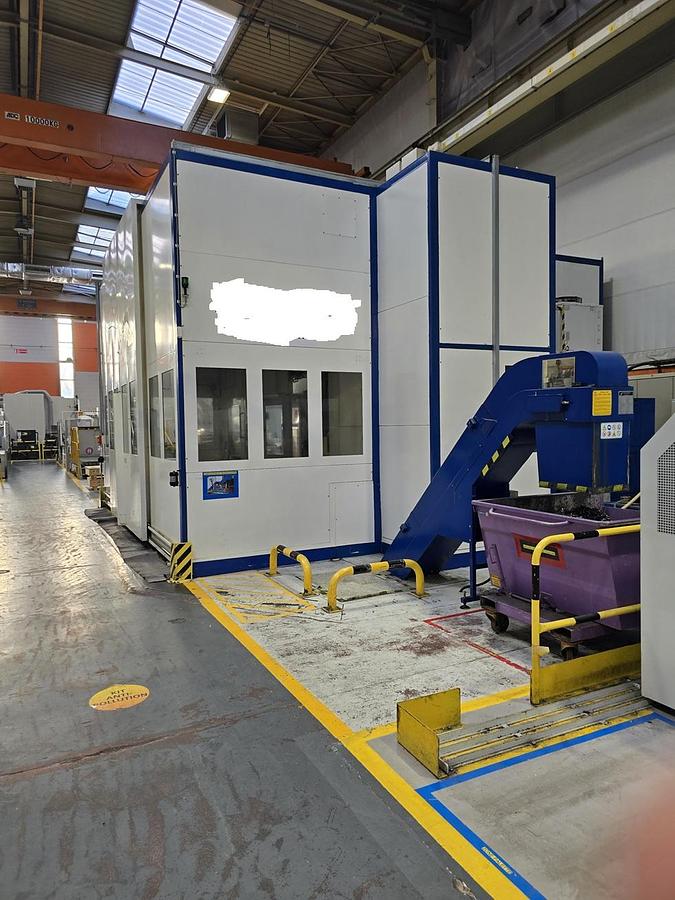

- cipconveyor
- cooling throught spindle
