SECMU SISTEMA 8 HORIZONTAL MACHINING CENTER
Technical specifications
| Manufacturer | SECMU |
| Model | SISTEMA 8 |
| Year | 1987 |
| Stock Number | 8 |
| Transversal travel | 1.500 mm. |
| Vertical travel | 1.100 mm. |
| Longitudinal travel | 1.300 mm. |
| Table | N. 3; 800 x 800 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 30 Kw. |
| Spindle speeds | 20 ÷ 4.000 Rpm. |
| Max. weight on table | 3.500 Kg. |
| Working feeds | 10 ÷ 15.000 mm/min. |

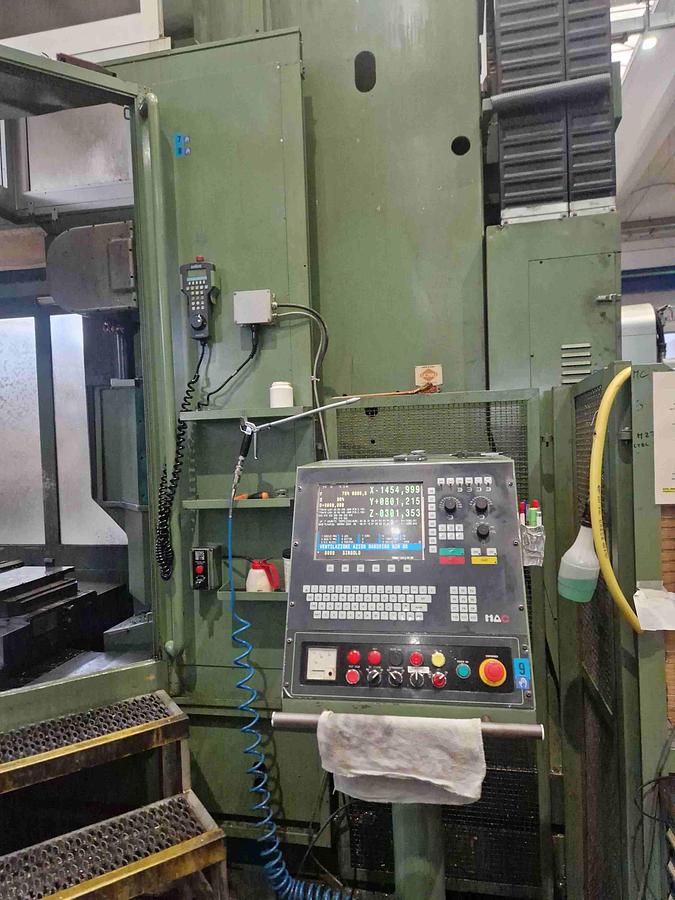

| Cnc | CNC FAS |
Features and Accessories
Complete with:

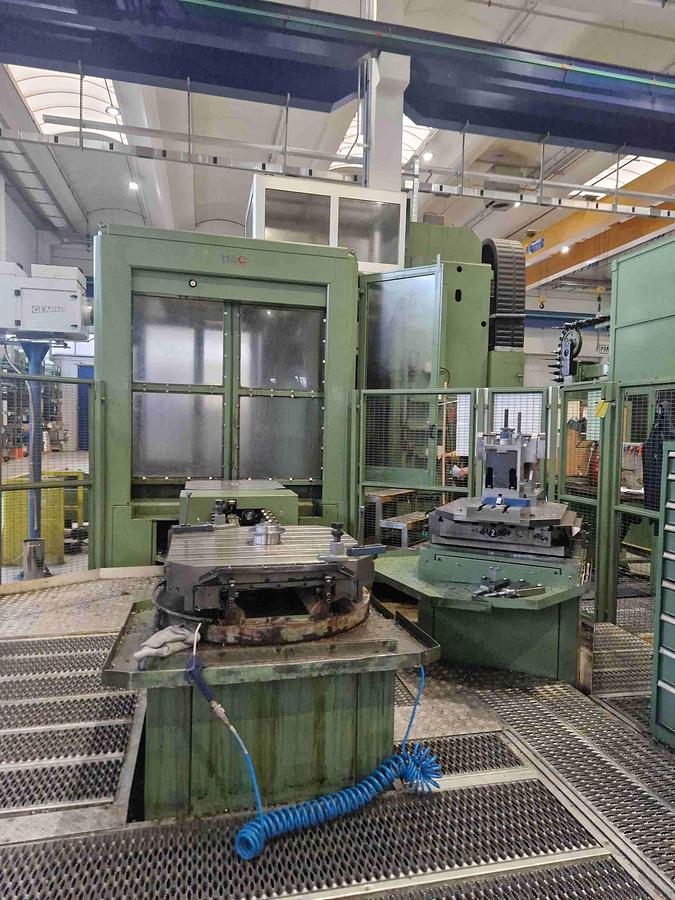

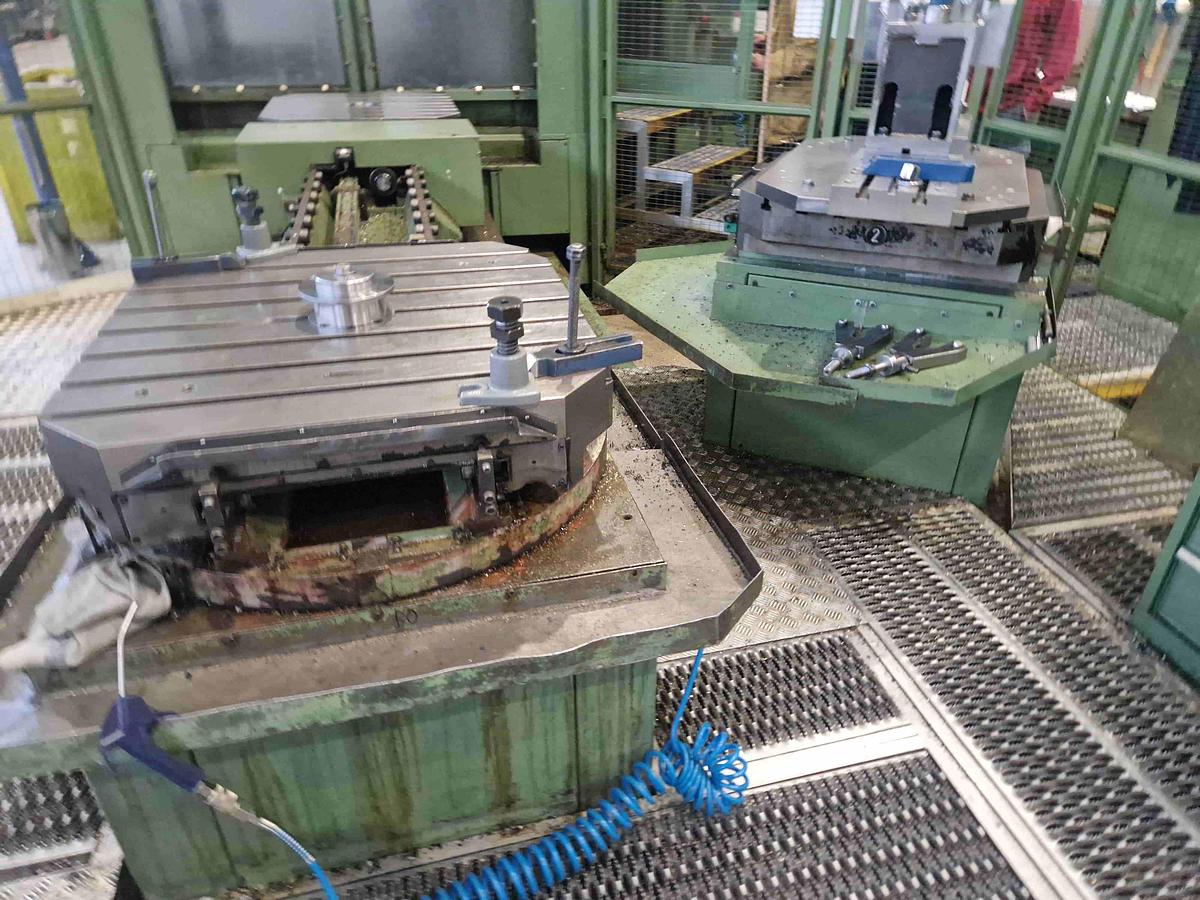

- 3 tables pallet changer

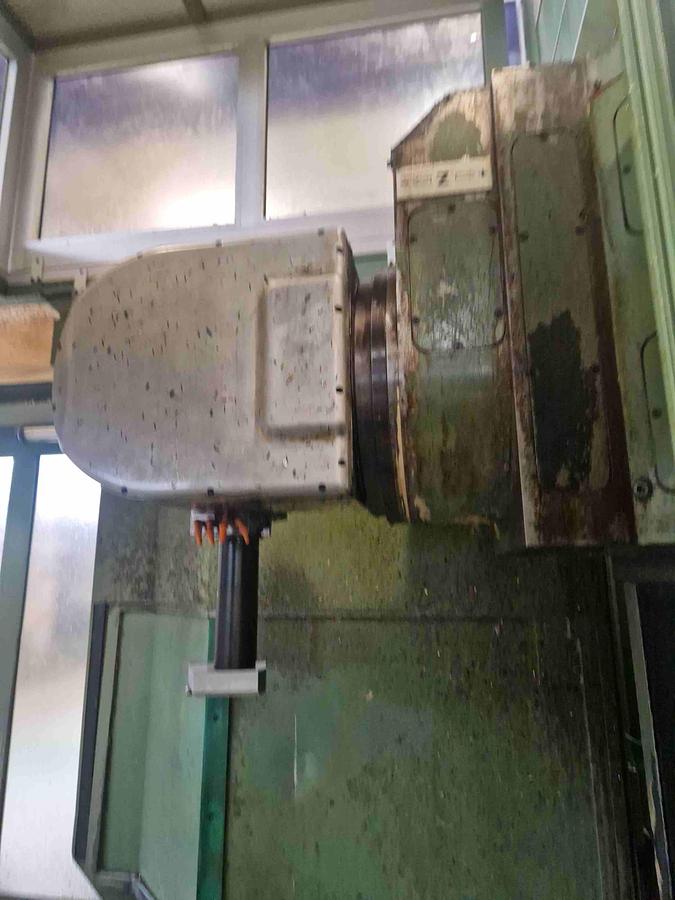

- tilting head +/- 95°

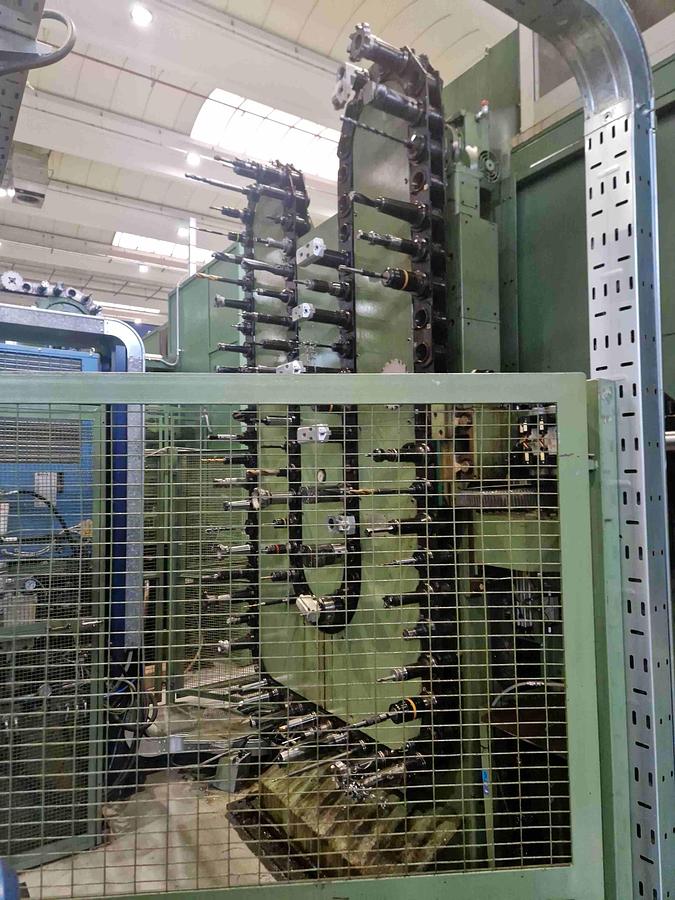

- 96 seats atc
- chipconveyor
- safety protections
