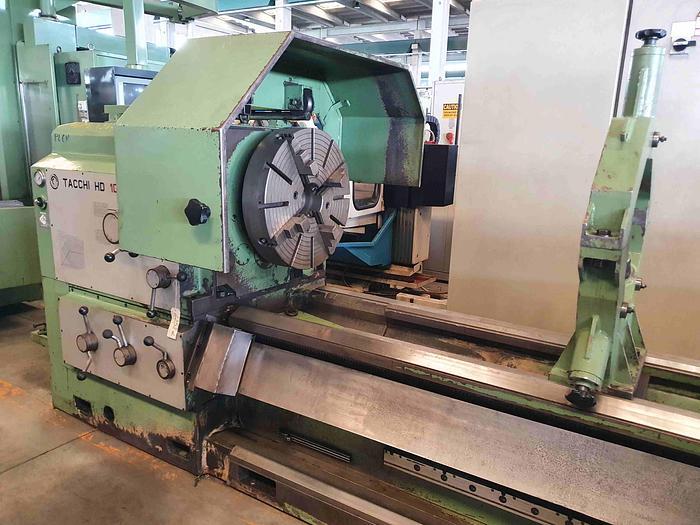

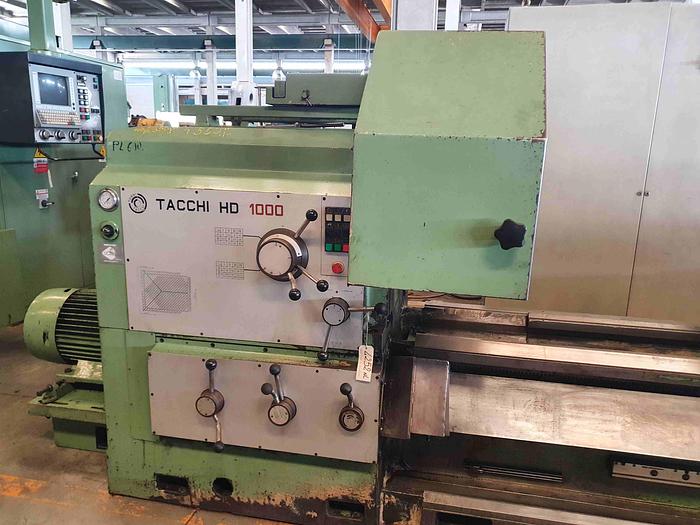

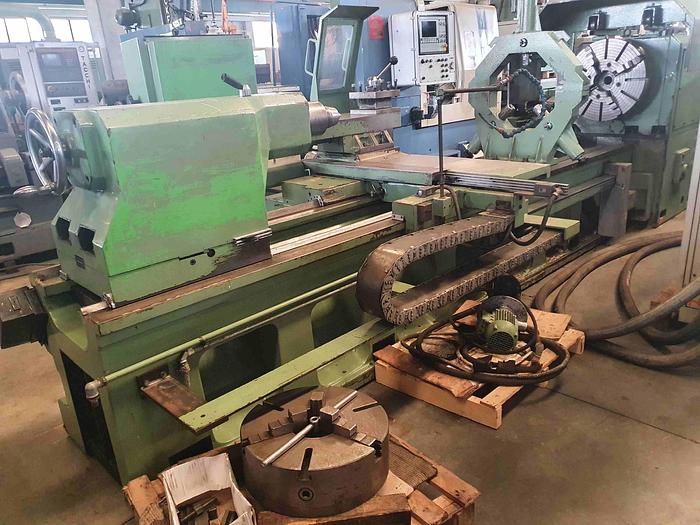

TACCHI HD 1000 x 3000 LATHE
No longer available
Technical specifications
| Manufacturer | TACCHI |
| Model | HD 1000 |
| Year | 1992 |
| Centres height | 450 mm. |
| Centres distance | 3.000 |
| Max. Ø over saddle | 600 mm. |
| Max. Ø over bed | 900 mm. |
| Max. Ø over the gap | 1.300 mm. |
| Gap lenght | 440 mm. |
| Bed width | 650 mm. |
| Max. weight between centers | 8.000 Tons. |
| Spindle power | 30 Kw. |
| Spindle speeds | n. 24; 5 - 1.000 Rpm. |

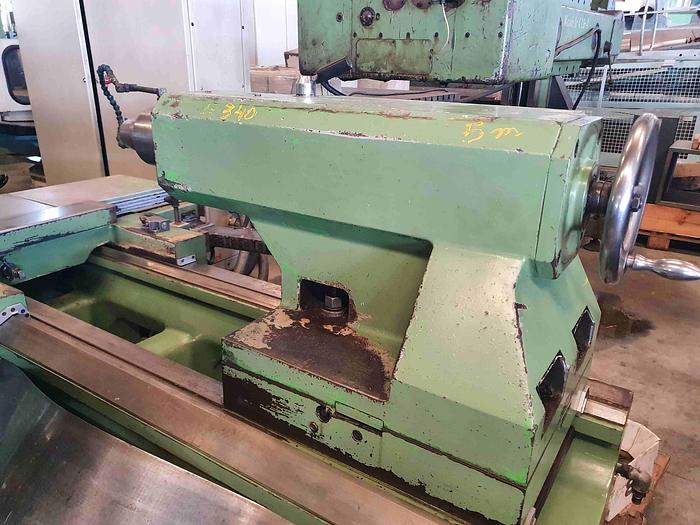

| Tailstock nose | 140 mm. |
| Tailstock nose travel | 300 mm. |
| Total weight | 12 Tons. |
Features and Accessories
Complete with:

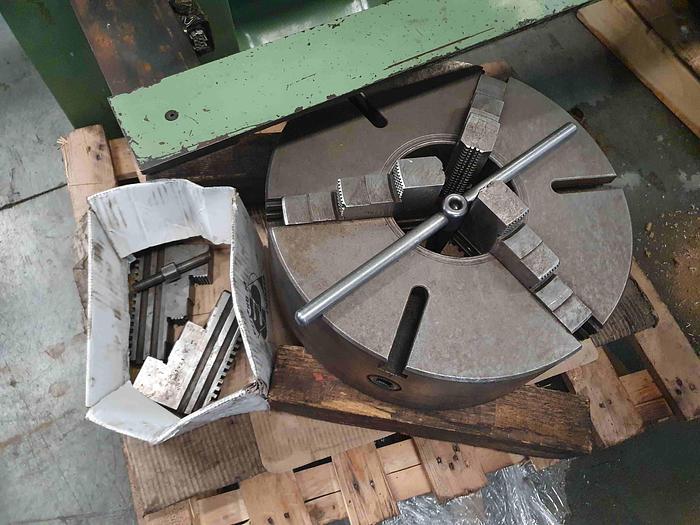

- n. 1 four jaws table Ø 600 mm.
- n. 1 self centering chuck Ø 430 mm.

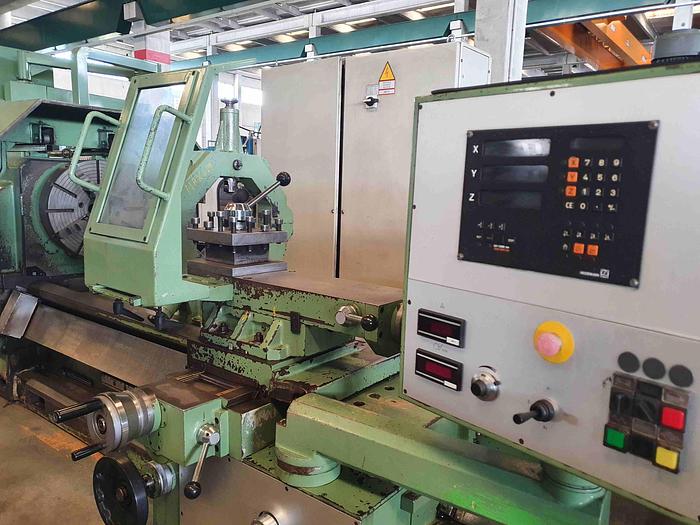

- d.r.o. Heidenhain

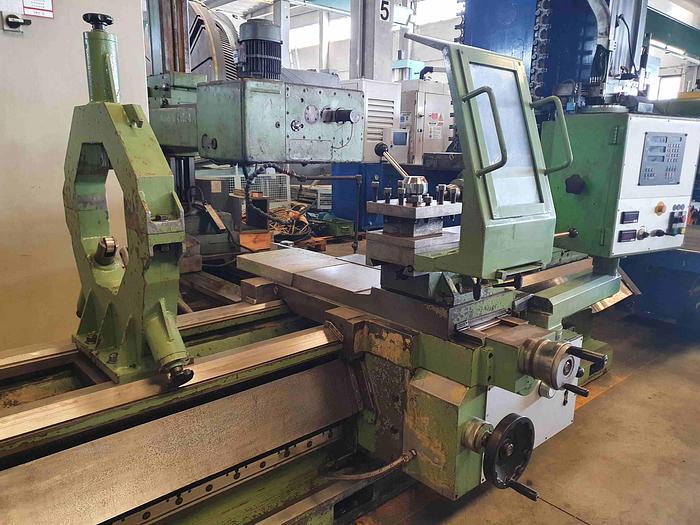

- n. 1 closed steady
