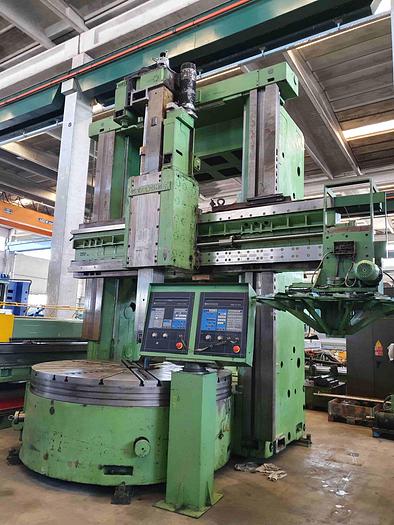

TITAN/ROMAN SC 27 CNC MS-F VERTICAL BORER
No longer available
Technical specifications
Manufacturer | TITAN/ROMAN |
Model | SC 27 CNC MS-F |
Year | 1989 |

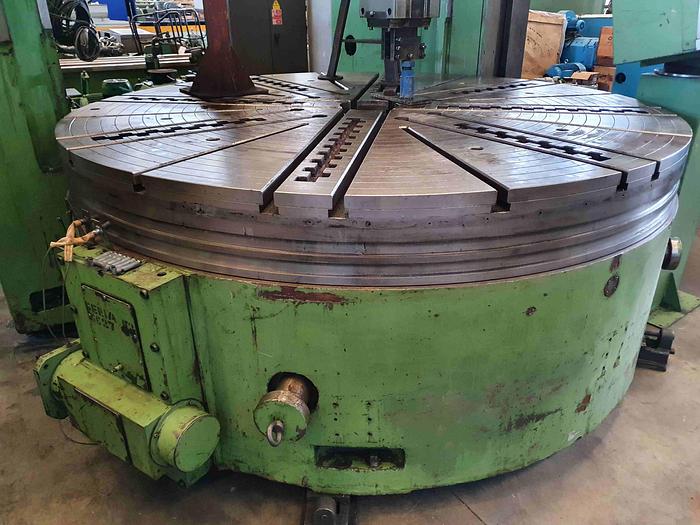

Table Ø | 2.500 mm. |
Max. working Ø | 2.650 mm. |
Spindle power | 60 Kw. |
Max. working height | 2.550 mm. |
Max. weight on table | 30 Tons. |
Table speeds | 1,12 ÷ 112 Rpm. |

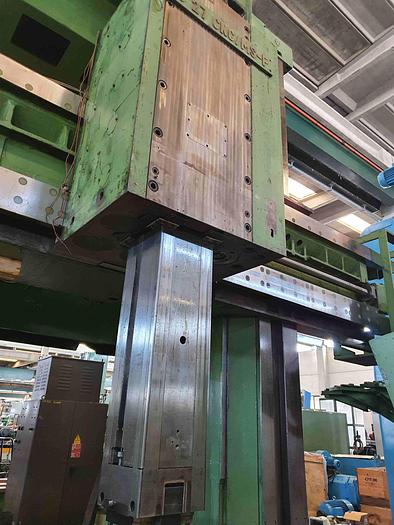

RAM type vertical tool travel | 1.500 mm. |
RAM size | 250 x 250 mm. |
Milling motor power | 17 Kw. |
Milling speeds | 1 ÷ 1.000 Rpm. |
Cnc | CNC |
Total weight | 50 Tons. |
Features and Accessories
Complete with:
- "c" axis and live tooling
- 16 seats atc
- tool-holders
