WFL MILL-TURN M 70 CNC MULTITASKING SLANT BED LATHE
No longer available
Technical specifications
| Manufacturer | WFL |
| Model | M 70 CNC |
| Year | 1999 |
| Centres height | 425 mm. |
| Max. Ø over saddle | 770 mm. |
| Spindle power | 60 Kw. |
| Spindle speeds | 5 ÷ 1.600 Rpm. |
| Spindle hole | 165 mm. |

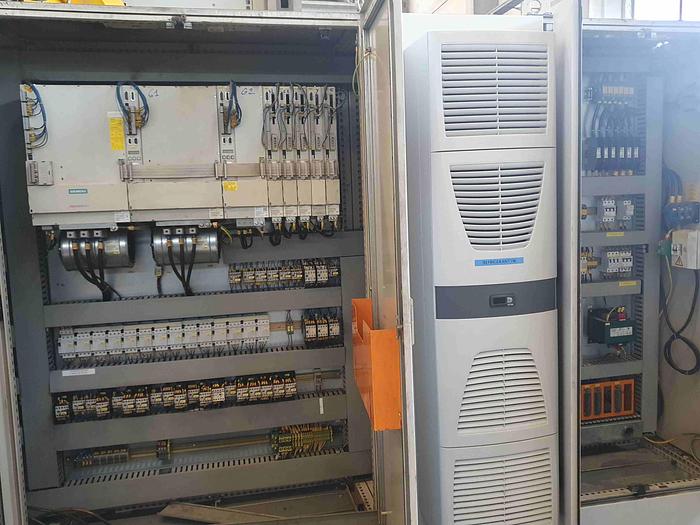

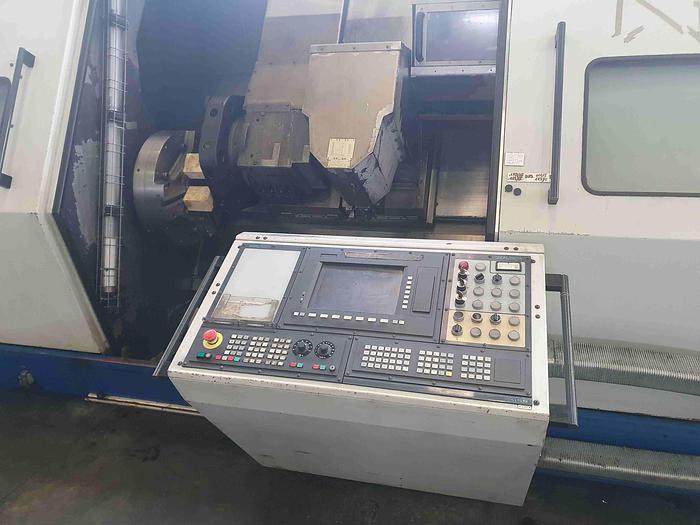

| Cnc | CNC Siemens 840 C |
| Total weight | 20 Tons. |
Features and Accessories
Max. working lenght 1.250 mm.

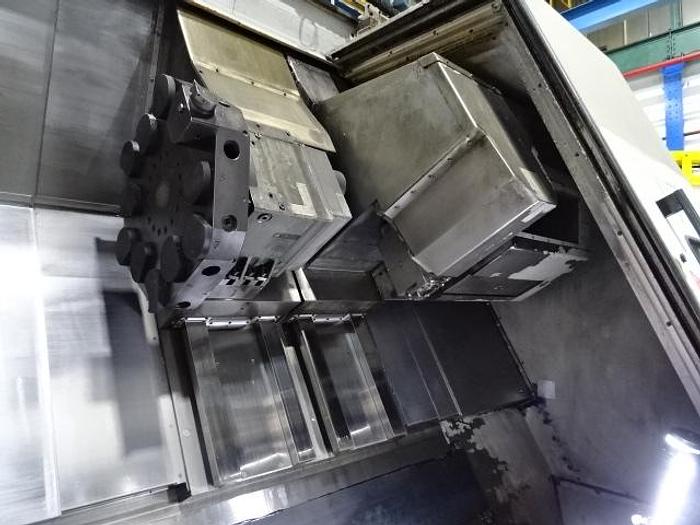

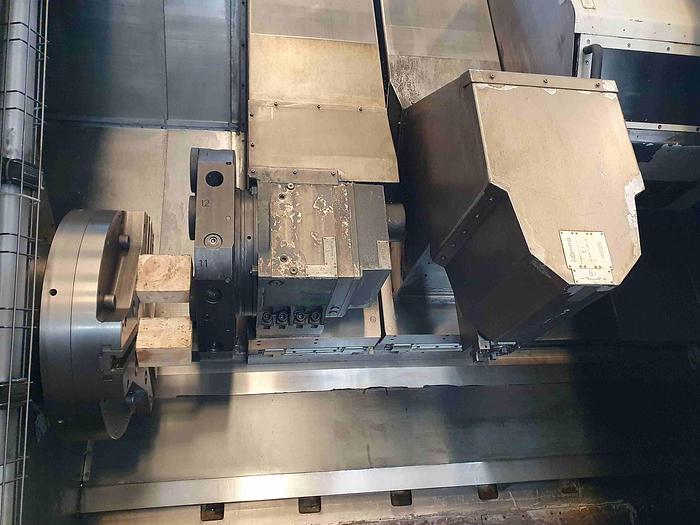

N. 1 saddle for turning with 12 positions automatic turret:
- longitudinal travel (z) 1.975 mm.
- transversal travel (x) 620 mm.

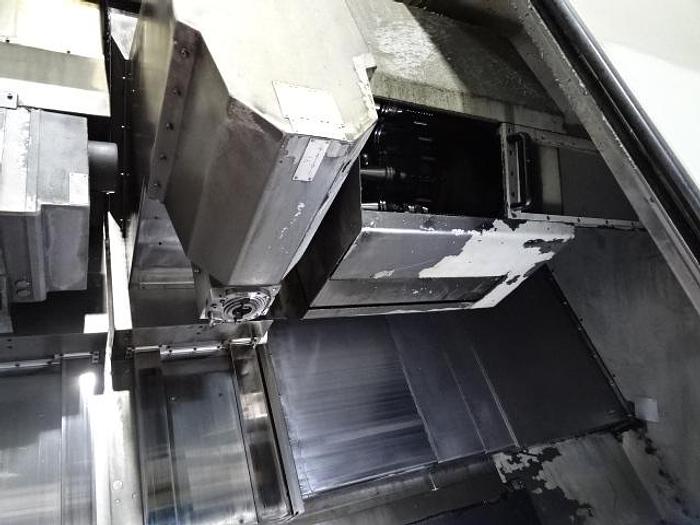

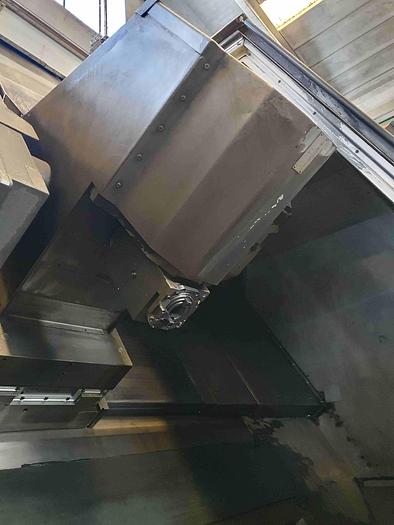

N. 1 saddle with milling head:
- longitudinal travel (z) 1.975 mm.
- transversal travel (e) 660 mm.
- vertical travel (y) 300 mm.
- rotation (b) +/- 90°
- tool taper iso 40
- milling motor power 15 kw.
- milling speeds 0 ÷ 3.000 rpm.
- 24 seats atc
Complete with:
- "c" axis and live tooling

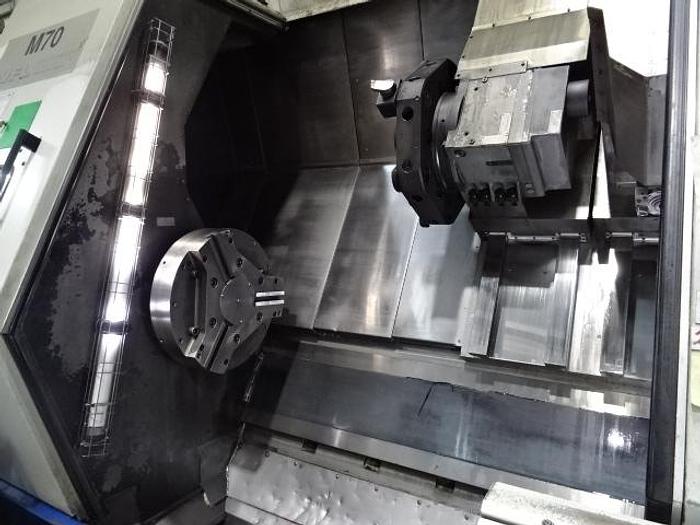

- n. 1 three jaws hydraulic self centering chuck Ø 630 mm.
- renishaw
- chipconveyor
- watertank with filter

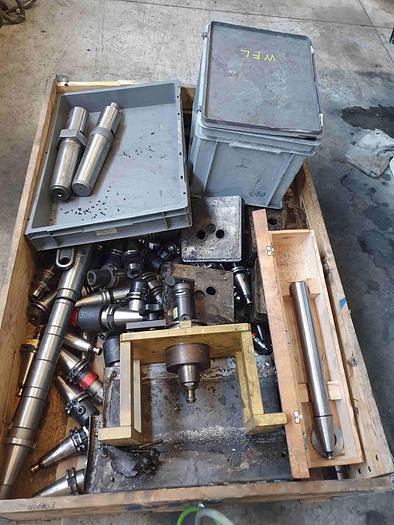

- tool-holders
