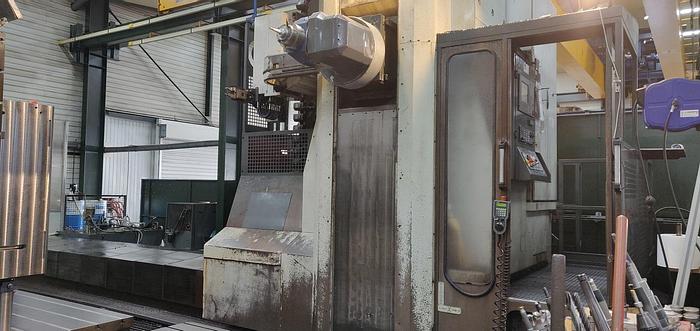

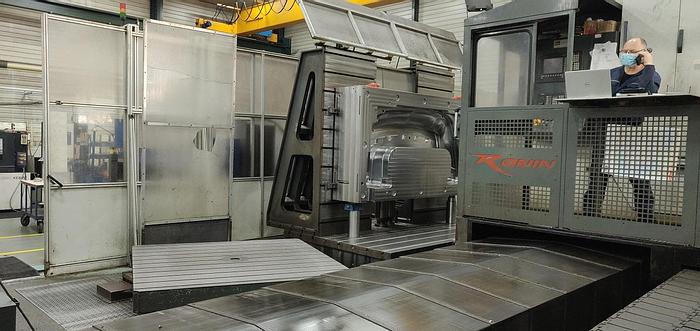

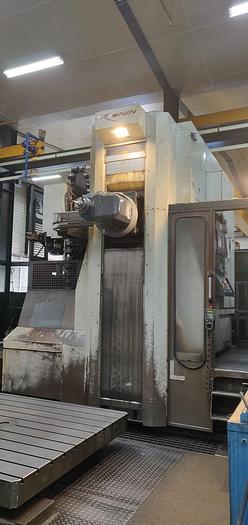

FPT RONIN M 60 CNC FLOOR TYPE MILLING MACHINE
No longer available
Technical specifications
| Manufacturer | FPT |
| Model | RONIN M 60 CNC |
| Year | 2005 |
| Transversal travel | 6.000 mm. |
| Vertical travel | 2.000 mm. |
| RAM travel | 1.250 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 42 Kw. |
| Spindle speeds | 10 ÷ 5.000 Rpm. |
| Rapid feeds | 35.000 mm/min. |

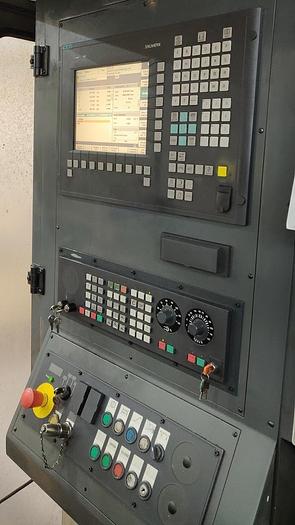

| Cnc | CNC Siemens 840 D |
Features and Accessories
Complete with:
- cnc rotary table mod. TRF 15: 2.000 x 2.000; capacity 15 tons.; indexed 0,005°
- n. 1 universal continuos milling head iso 50

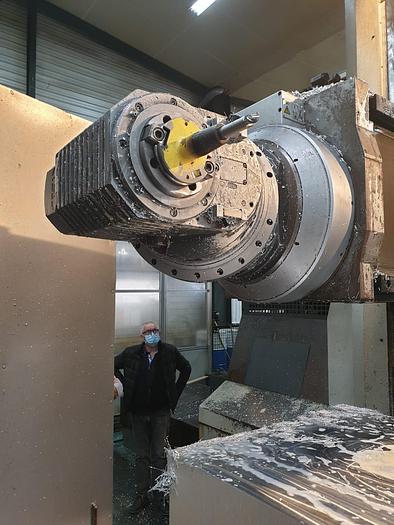

- n. 1 birotative indexed milling head hsk 63: a=2,5° +/- 180°; c=2,5° +/- 92,5°; 18.000 rpm.; 22 kw.
- 40 seats atc
- heads changer
- n. 1 floor plate 4.000 x 2.000 mm.
- chipconveyor
