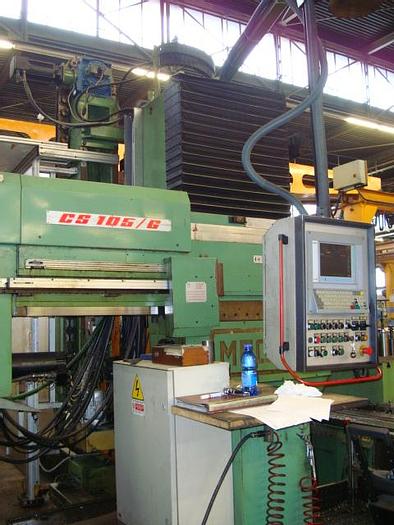

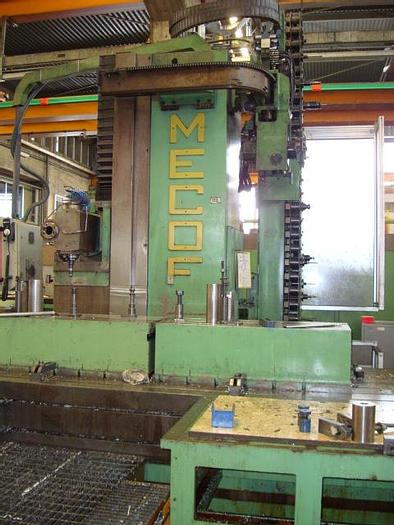

MECOF CS 105 G CNC BED TYPE MILLING MACHINE
No longer available
Technical specifications
| Manufacturer | MECOF |
| Model | CS 105 G CNC |
| Year | 1983 |
| Transversal travel | 4.300 mm. |
| Vertical travel | 1.700 mm. |
| RAM travel | 1.000 mm. |
| Table | 6.000 x 1.060 mm. |
| Spindle taper | ISO 50 |
| Spindle motor power | 22 Kw. |
| Spindle speeds | 5 ÷ 1.490 Rpm. |
| Working feeds | 0 ÷ 6.000 Rpm. |

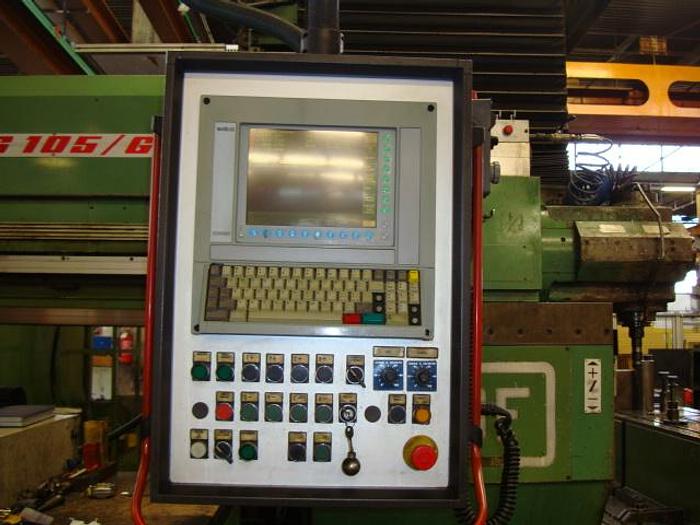

| Cnc | CNC SELCA 3040 |
| Total weight | 27 Tons. |
Features and Accessories
Retrofitted in 1999.
Complete with:

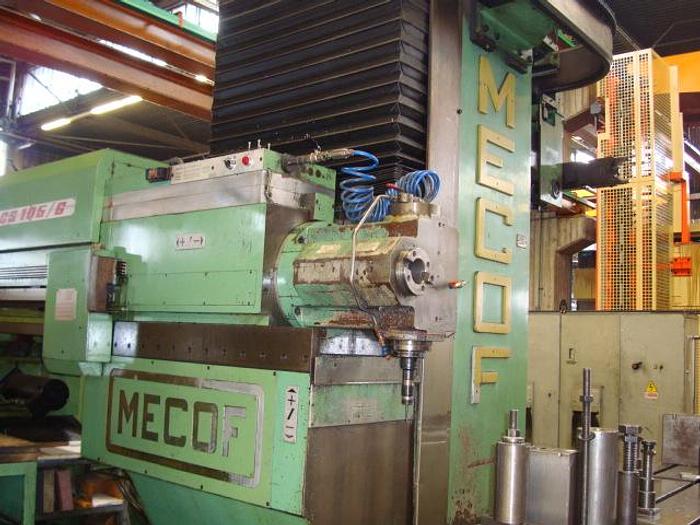

- two 90° spindles head, indexed 1°

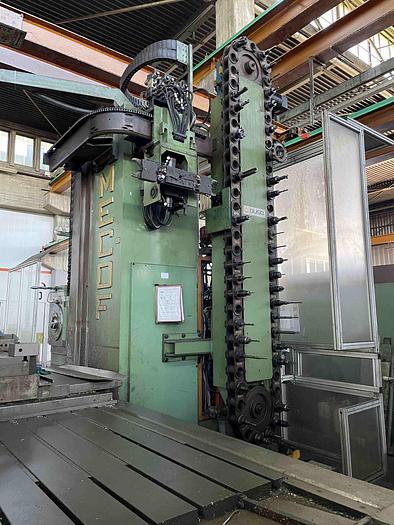

- 60 seats atc

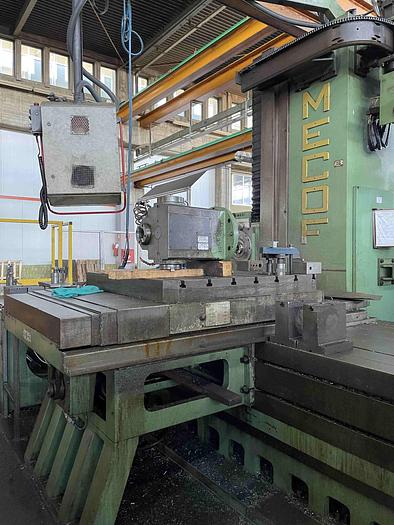

- n. 1 rotary table Mecof T 5 cnc: 1.220 x 1.220; capacity 5 tons.; travel 600 mm.; weight 3.300 kg.
- n. 1 table 1.500 x 1.000 mm.
