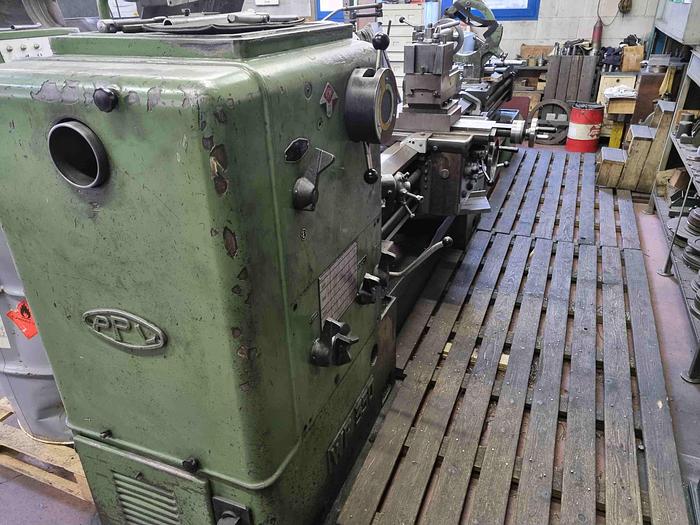

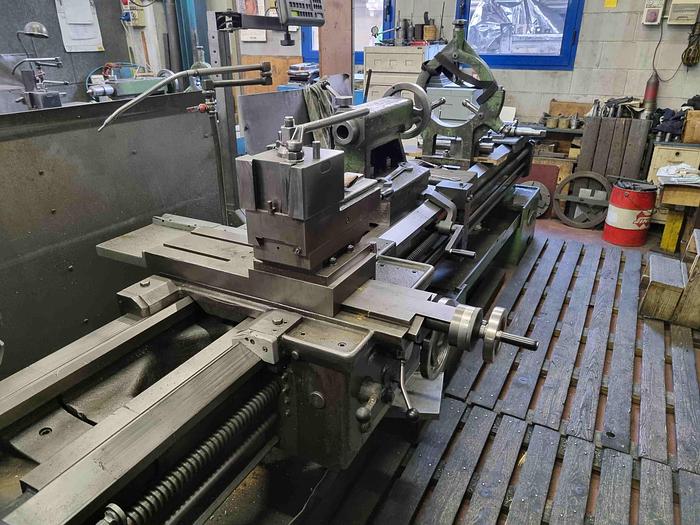

PONTIGGIA PPL WF 350x3000 LATHE
No longer available
Technical specifications
| Manufacturer | P. PONTIGGIA |
| Model | PPL 350 |
| Centres height | 350 mm. |
| Centres distance | 3.000 mm. |
| Max. Ø over saddle | 492 mm. |
| Max. Ø over bed | 720 mm. |
| Max. Ø over the gap | 950 mm. |
| Gap lenght | 350 mm. |
| Bed width | 420 mm. |
| Spindle speeds | N. 12; 13 - 700 Rpm. |
| Spindle hole | 76 mm. |
| Tailstock nose | 80 mm. |
| Tailstock nose travel | 200 mm. |
| Total weight | 3.150 Kg. |
Features and Accessories
Complete with:
- d.r.o.
- n. 1 three jaws self centering chuck Ø 250 mm.
- n. 1 four jaws table Ø 550 mm.
- n. 1 open steady
- n. 2 closed steadies
