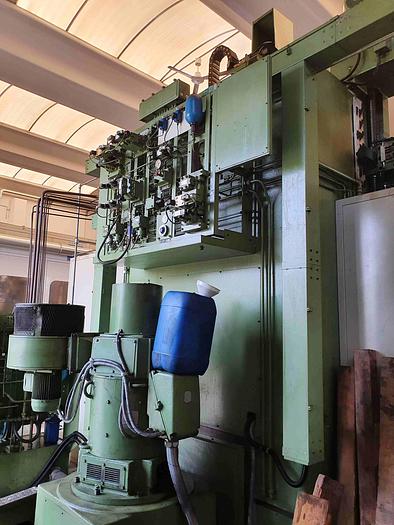

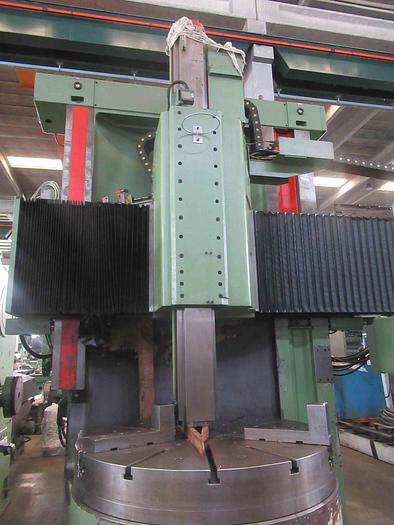

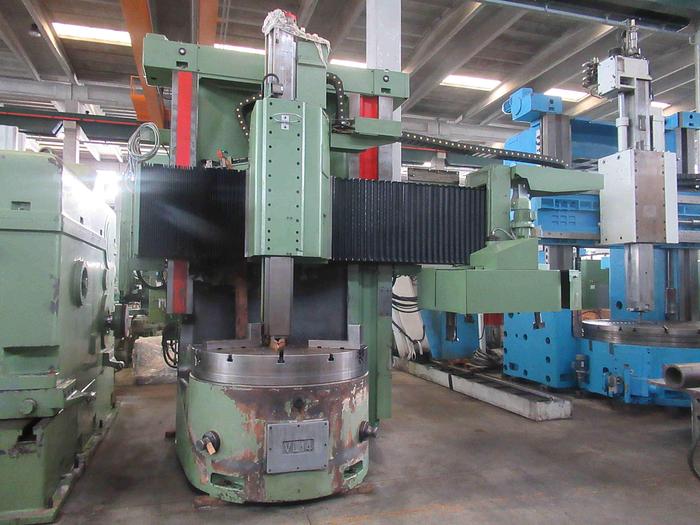

MORANDO VL 14 CNC VERTICAL BORER
No longer available
Technical specifications
| Manufacturer | MORANDO |
| Model | VL 14 CNC |
| Year | 1981 |

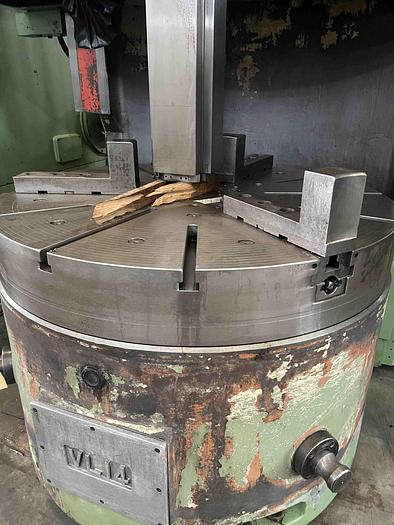

| Table Ø | 1.450 mm. |
| Max. working Ø | 1.650 mm. |
| Spindle power | 59 Kw. |
| Max. working height | 1.450 mm. |
| Max. weight on table | 14 Tons. |
| Table speeds | 2,2 ÷ 322 Rpm. |
| RAM type vertical tool travel | 1.200 mm. |

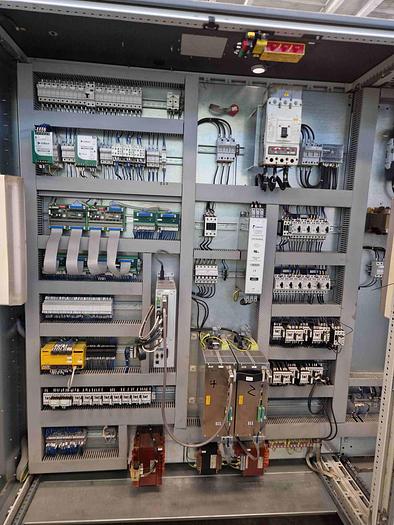

| Cnc | CNC ECS 4802 |
| Total weight | 24 Tons. |
Features and Accessories
Retrofitted in 2011.
Complete with:
- hydraulic self centering chuck Ø 1.450 mm.

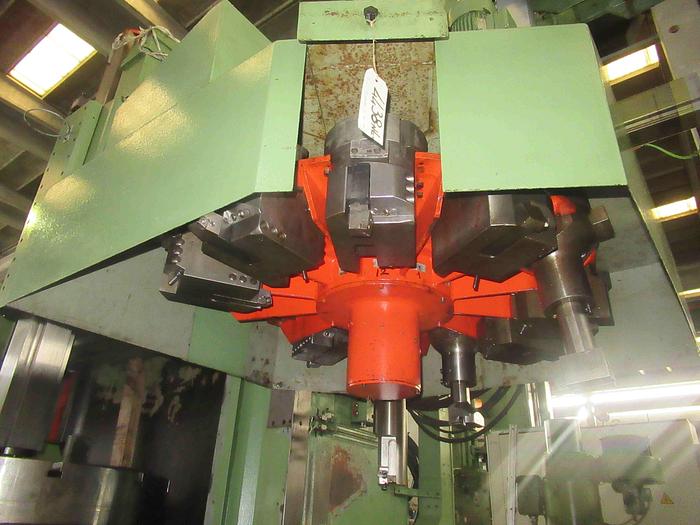

- 12 seats atc
- tool-holders
- chipconveyor
- full covered
