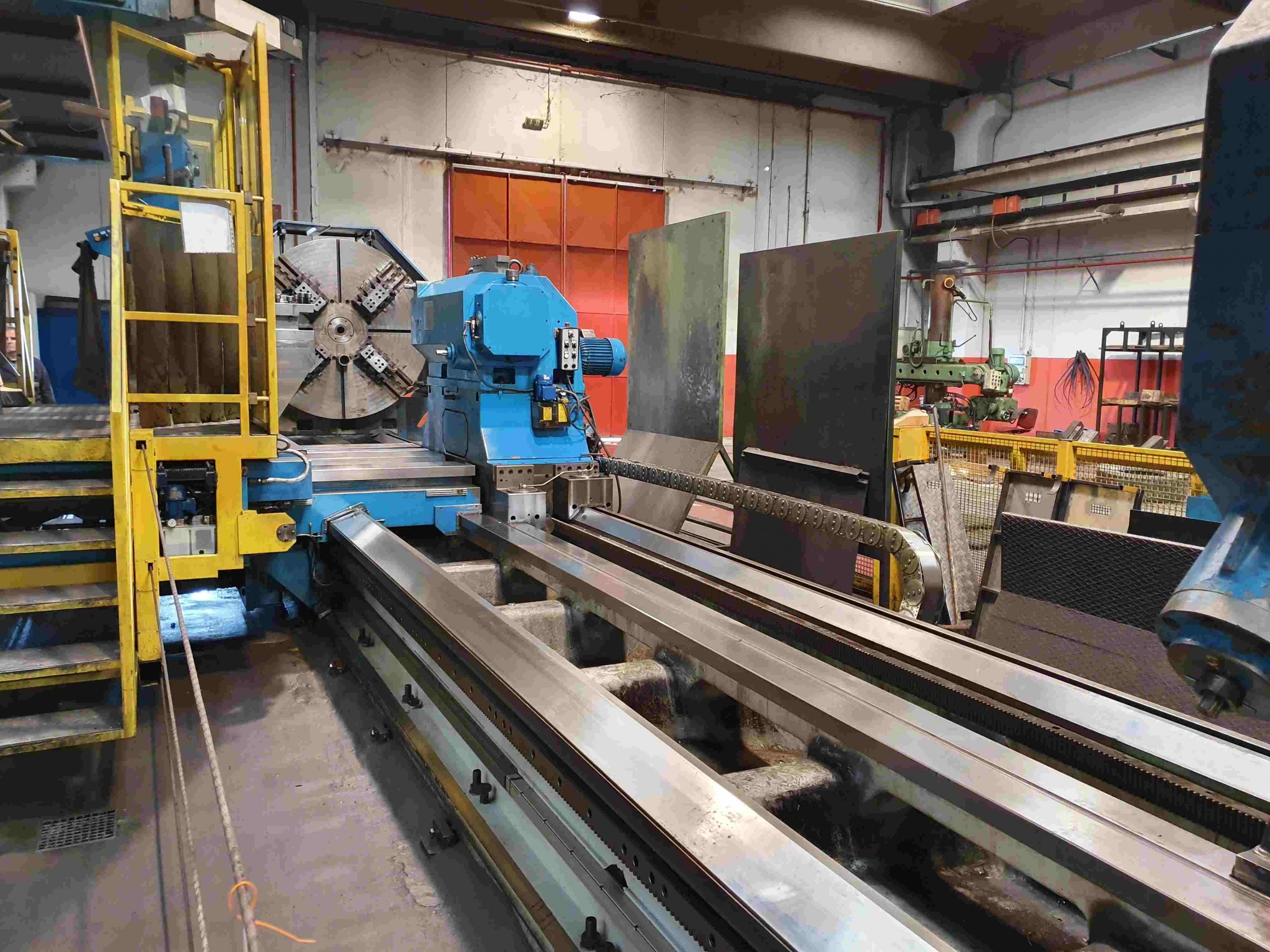

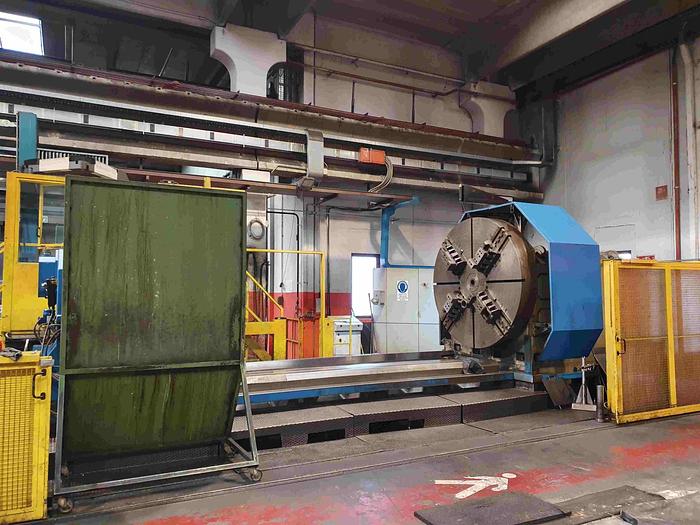

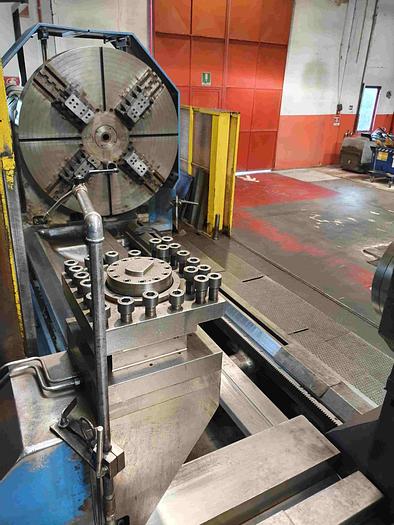

TACCHI FTC 160 x 9000 CNC THREE SLIDES BED LATHE
No longer available
Featured
Technical specifications
| Manufacturer | TACCHI |
| Model | FTC 160 |
| Year | 1989 |
| Centres height | 1.200 mm. |
| Centres distance | 9.100 mm. |
| Max. Ø over saddle | 1.860 mm. |
| Max. Ø over bed | 2.400 mm. |
| Bed width | 1.600 mm. |
| Max. weight on centres | 40 Tons. |
| Spindle power | 100 Kw. |
| Spindle speeds | 0,6 ÷ 160 Rpm. |

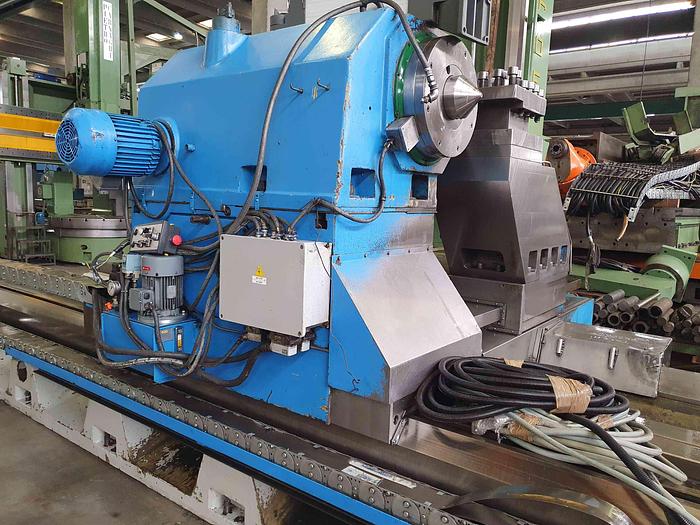

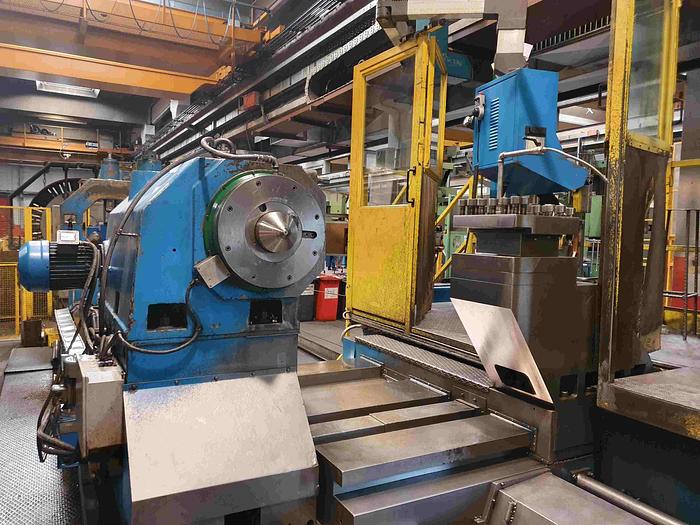

| Tailstock nose | 450 mm. |
| Tailstock nose travel | 200 mm. |
| Total Weight | 70 Tons. |

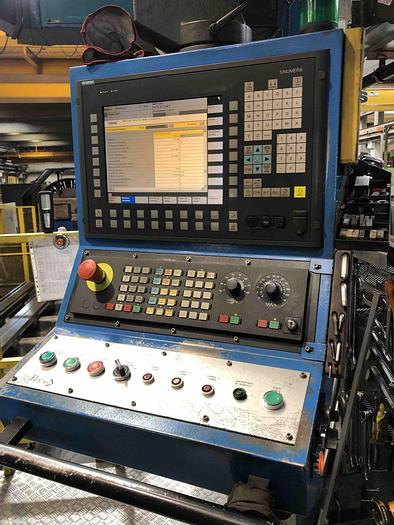

| Cnc | CNC SIEMENS 840 D |
Features and Accessories

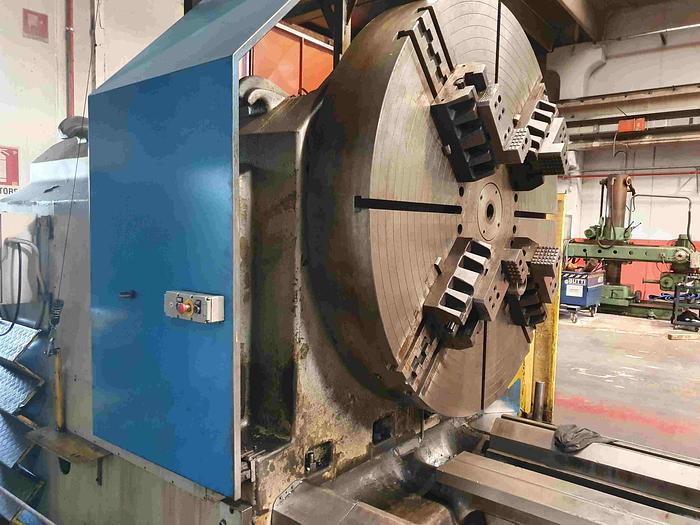

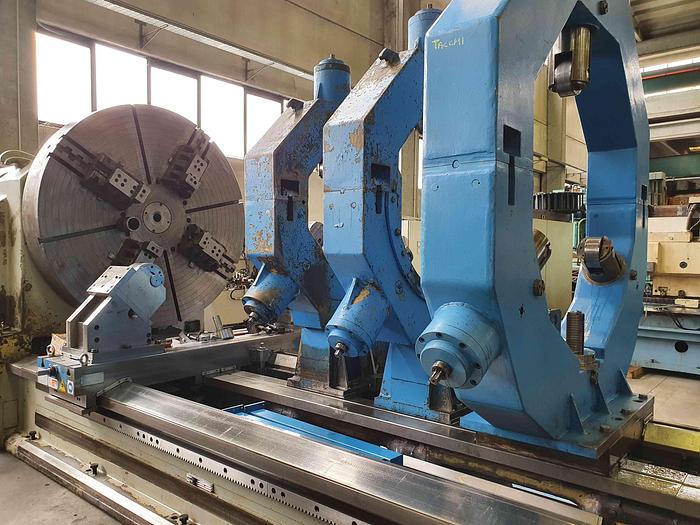

Retrofitted in 2002. Complete with: - n. 1 four jaws table Ø 2.000 mm. - n. 3 closed steadies - roller
