INNSE TPFR 90 THREE SLIDES BED CNC LATHE
No longer available
Featured
Technical specifications
| Manufacturer | INNSE |
| Model | TPFR 90 CNC |
| Year | 1989 |
| Centres height | 550 mm. |
| Centres distance | 6.300 mm. |
| Max. Ø over saddle | 900 mm. |
| Max. Ø over bed | 980 mm. |
| Bed width | 1.050 mm. |
| Max. weight on centres | 10 Tons. |
| Spindle power | 82 Kw. |
| Spindle speeds | 1,5 ÷ 660 Rpm. |
| Tailstock nose | 200 mm. |
| Tailstock nose travel | 150 mm. |
| Live tools motor power | 18,3 Kw. |

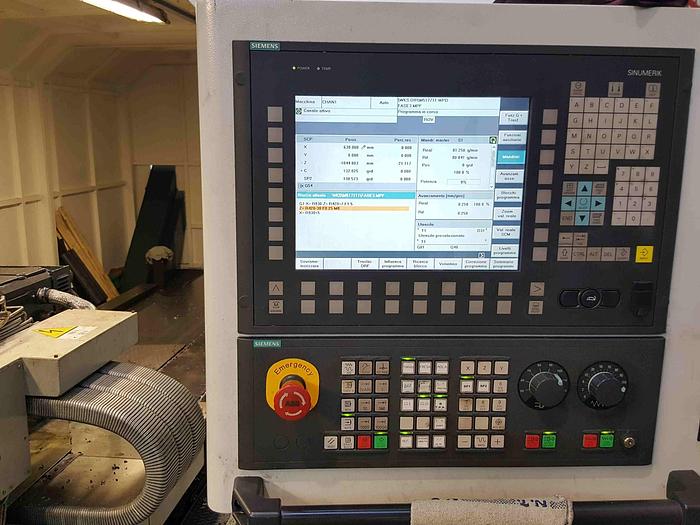

| Cnc | CNC SIEMENS 840 D |
Features and Accessories
Retrofitted in 2010.
Complete with:
- “c” axis and “y” axis
- motorised tools for axial and radial milling - iso 50
- n. 1 four jaws table Ø 800 mm.
- n. 1 self centering chuck Ø 600 mm.
- n. 1 x 9 positions automatic turret
- n. 1 grinding unit: 14,5 kw. - max. Wheel Ø 400 mm.
