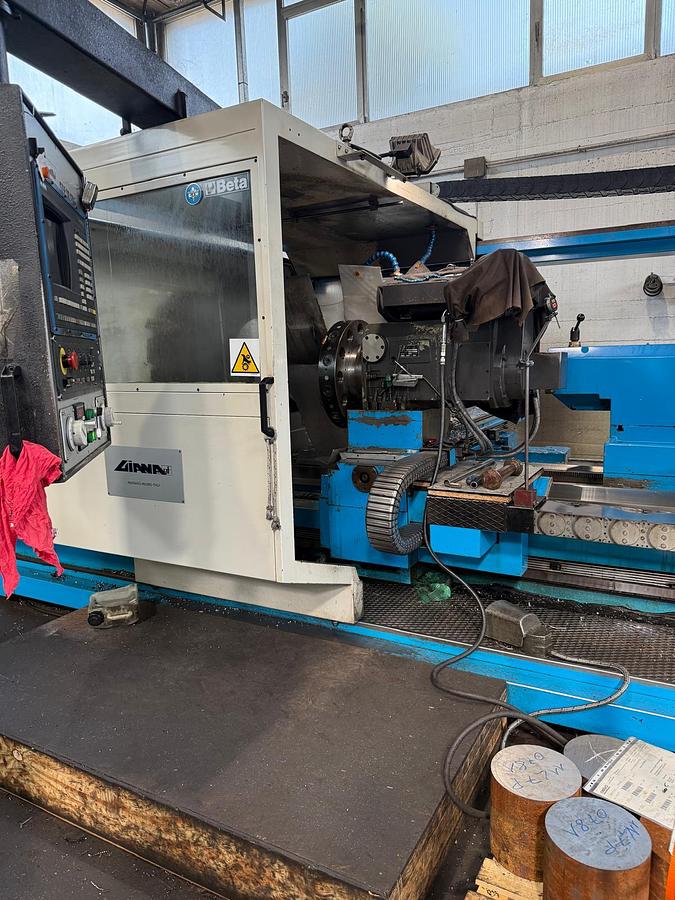

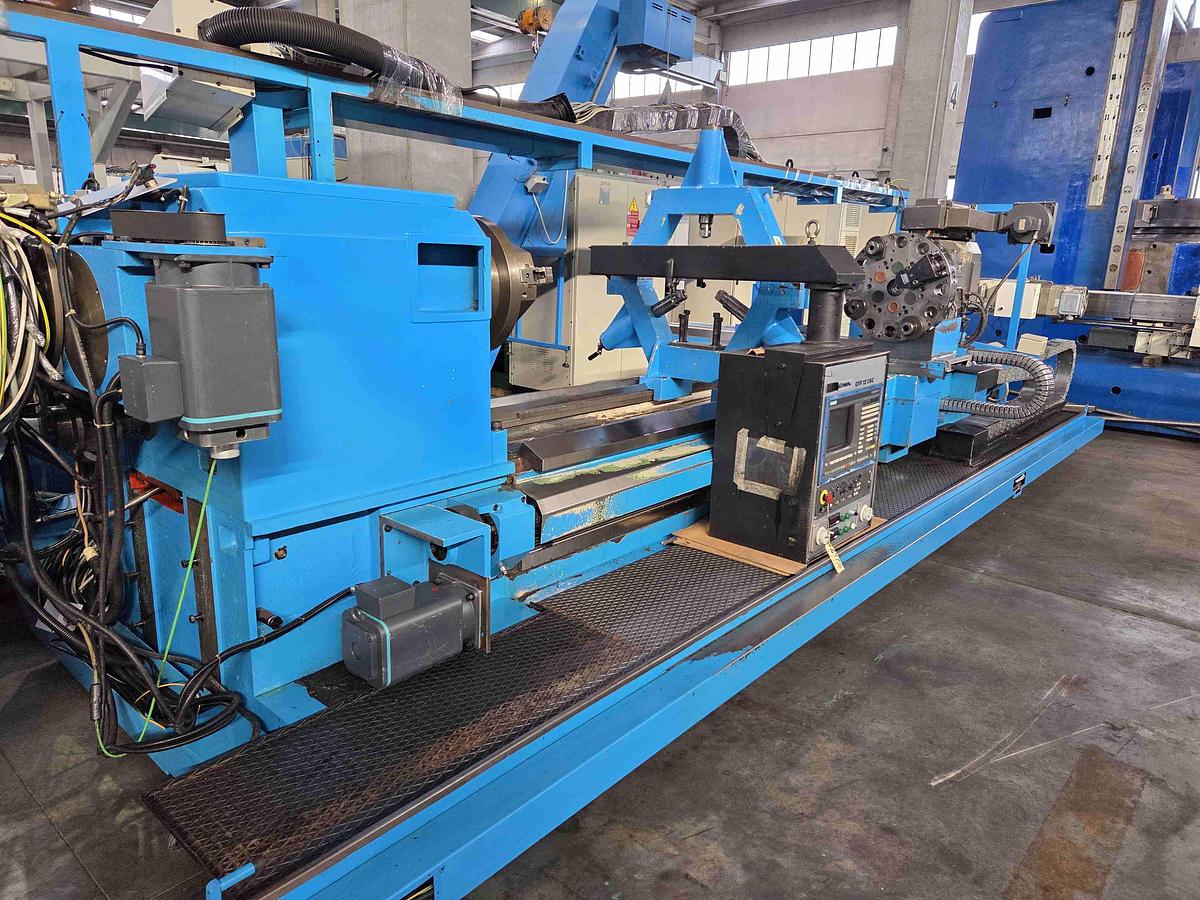

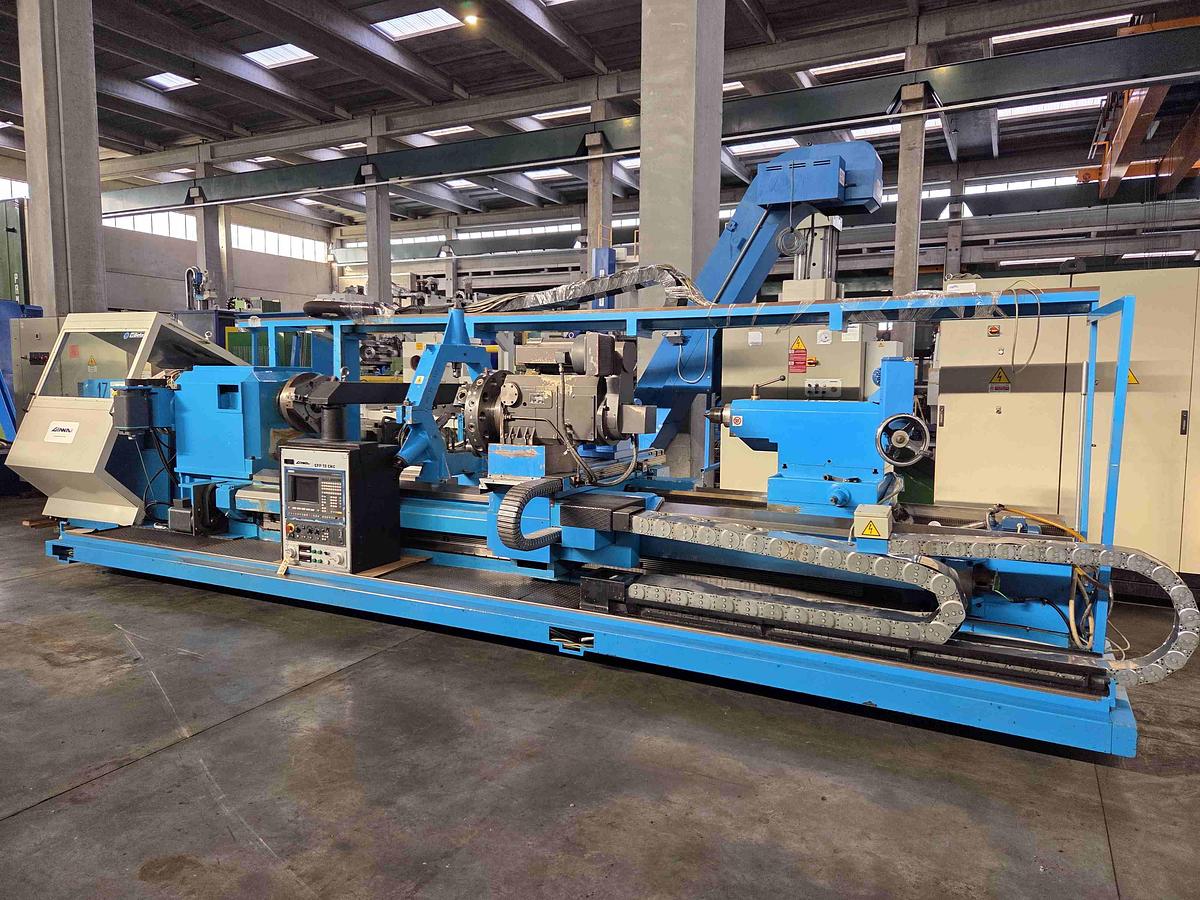

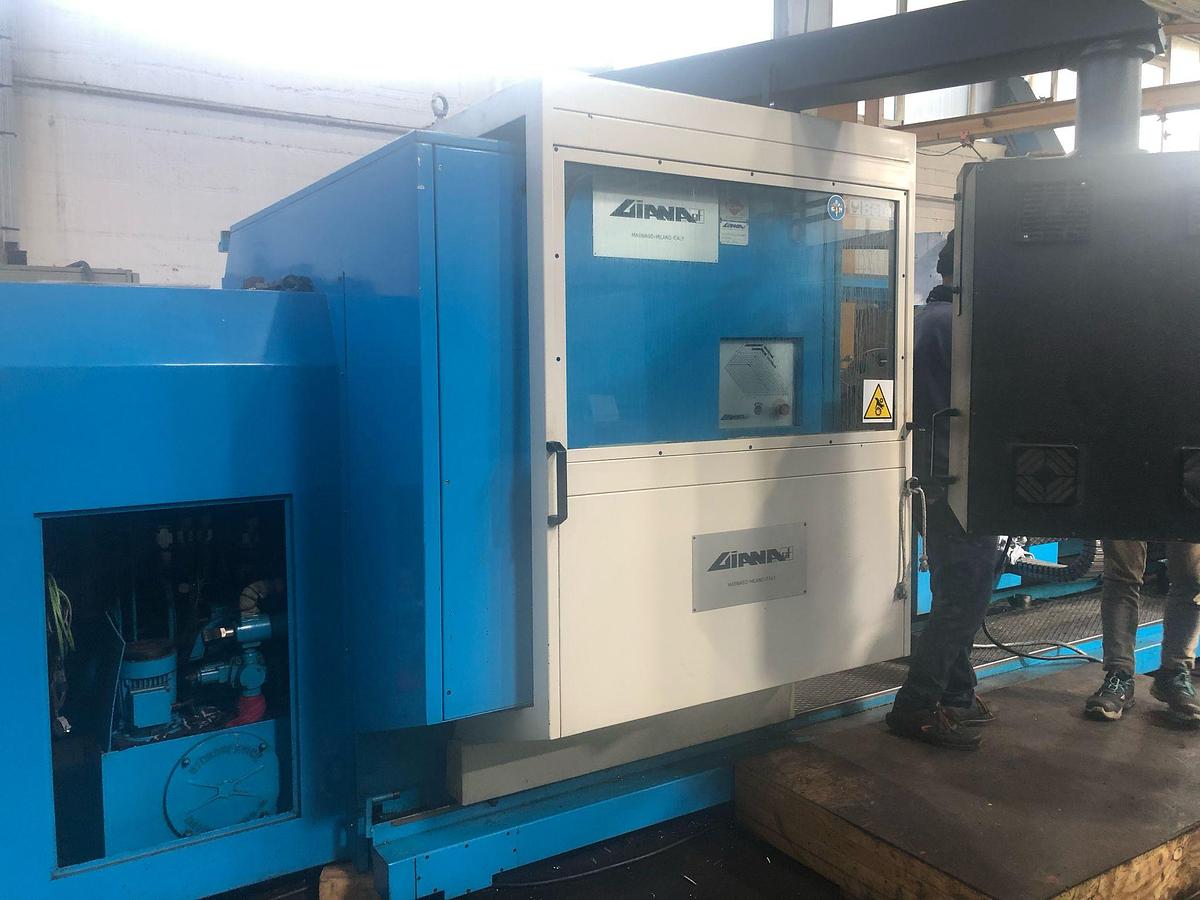

GIANA GFP 12 x 4000 CNC LATHE - 610 x 4000
Technical specifications
| Manufacturer | GIANA |
| Model | GFP 12 CNC |
| Year | 1994 |
| Stock Number | 4979 NL |
| Centres height | 610 mm. |
| Centres distance | 4.000 mm. |
| Max. Ø over saddle | 820 mm. |
| Max. Ø over bed | 1.220 mm. |
| Bed width | 920 mm. |
| Max. weight between centers | 15.000 Kg. |
| Spindle power | 38 Kw. |
| Spindle speeds | 5 ÷ 1.000 Rpm. |
| Spindle hole | 120 mm. |

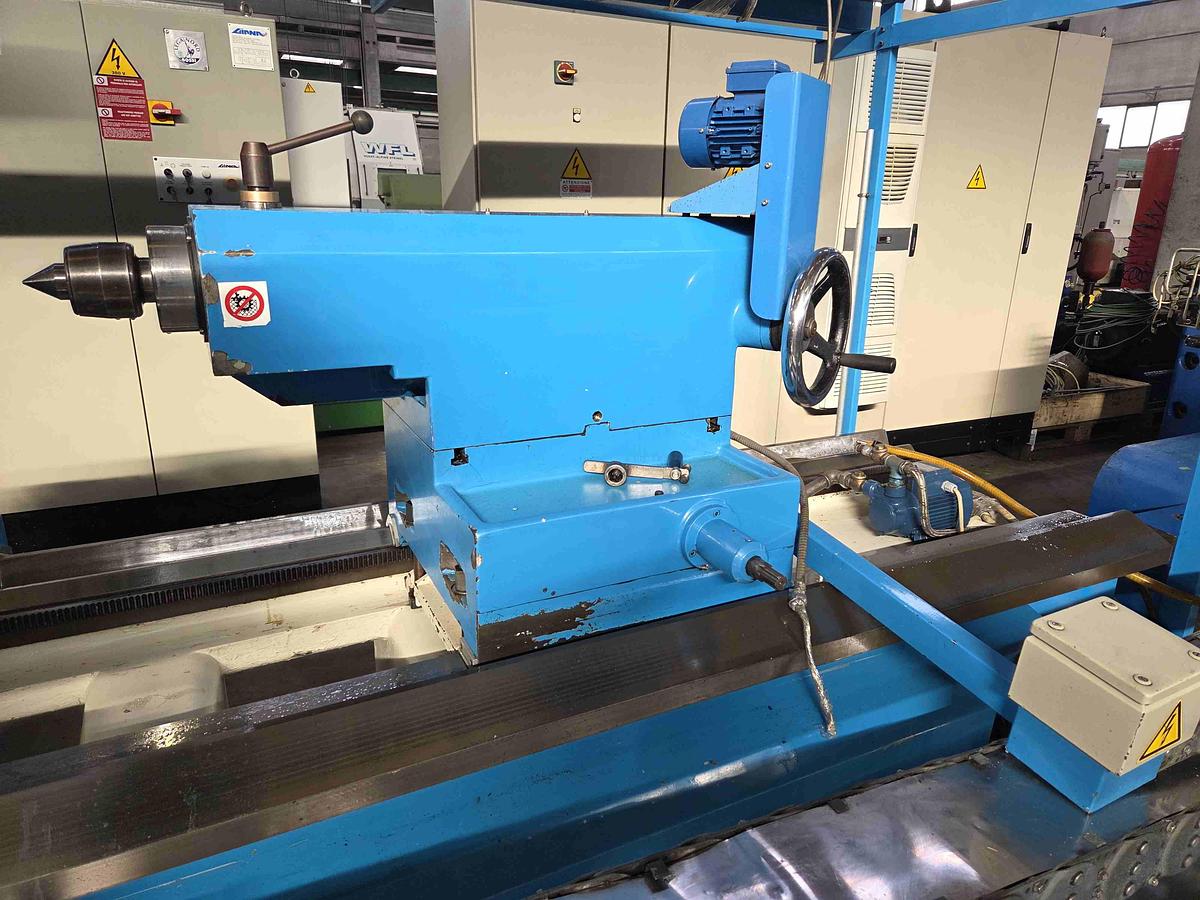

| Tailstock nose | 150 mm. |
| Tailstock nose travel | 300 mm. |

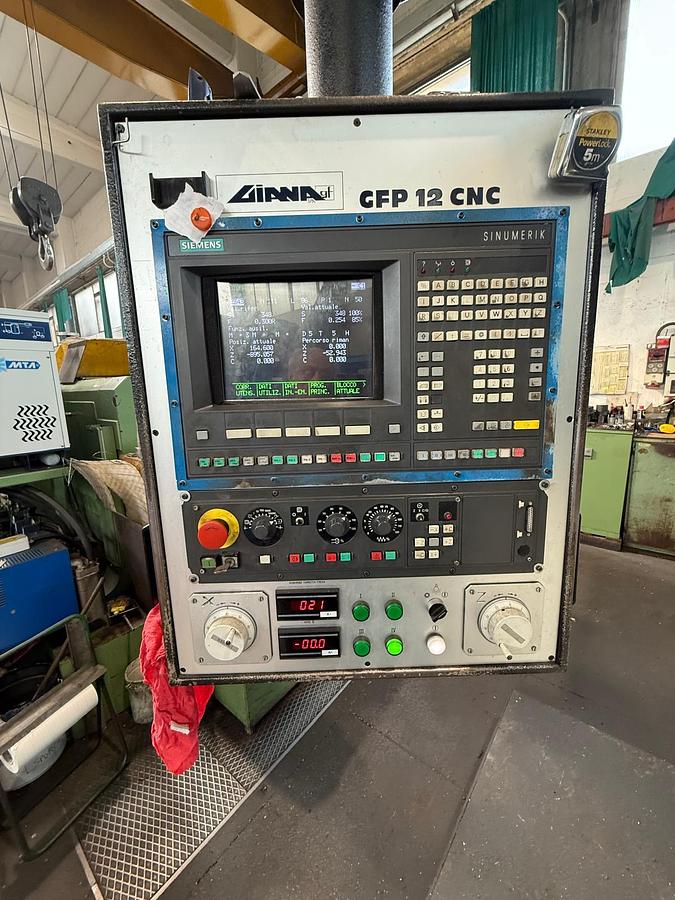

| Cnc | CNC SIEMENS 820 T |
| Total weight | 15 Tons. |
Features and Accessories
Complete with:
- “c” axis
- motorised tools for axial and radial milling

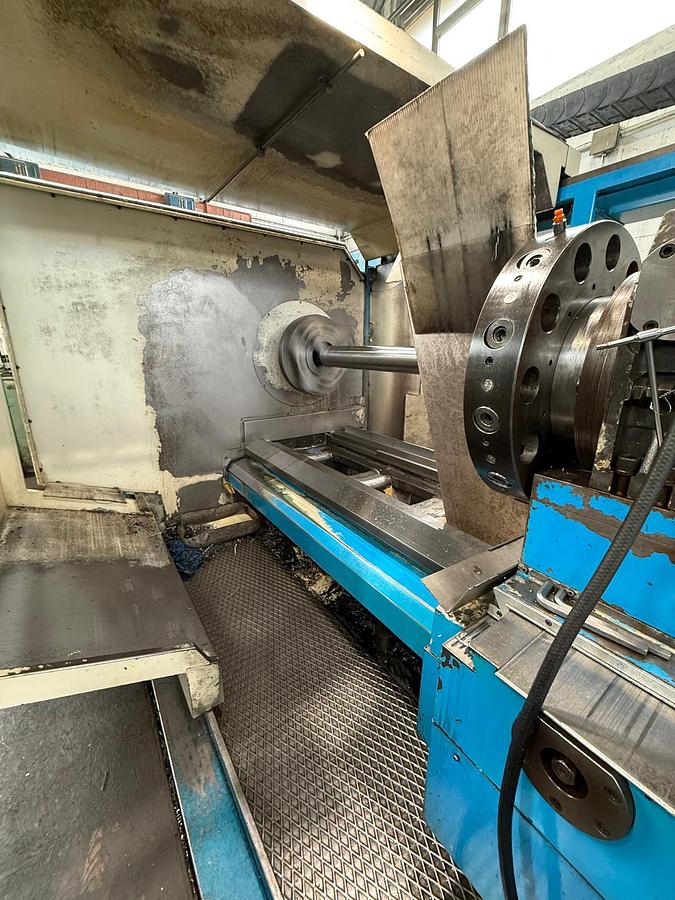

- hydraulic selfcentering chuck Ø 500 mm.

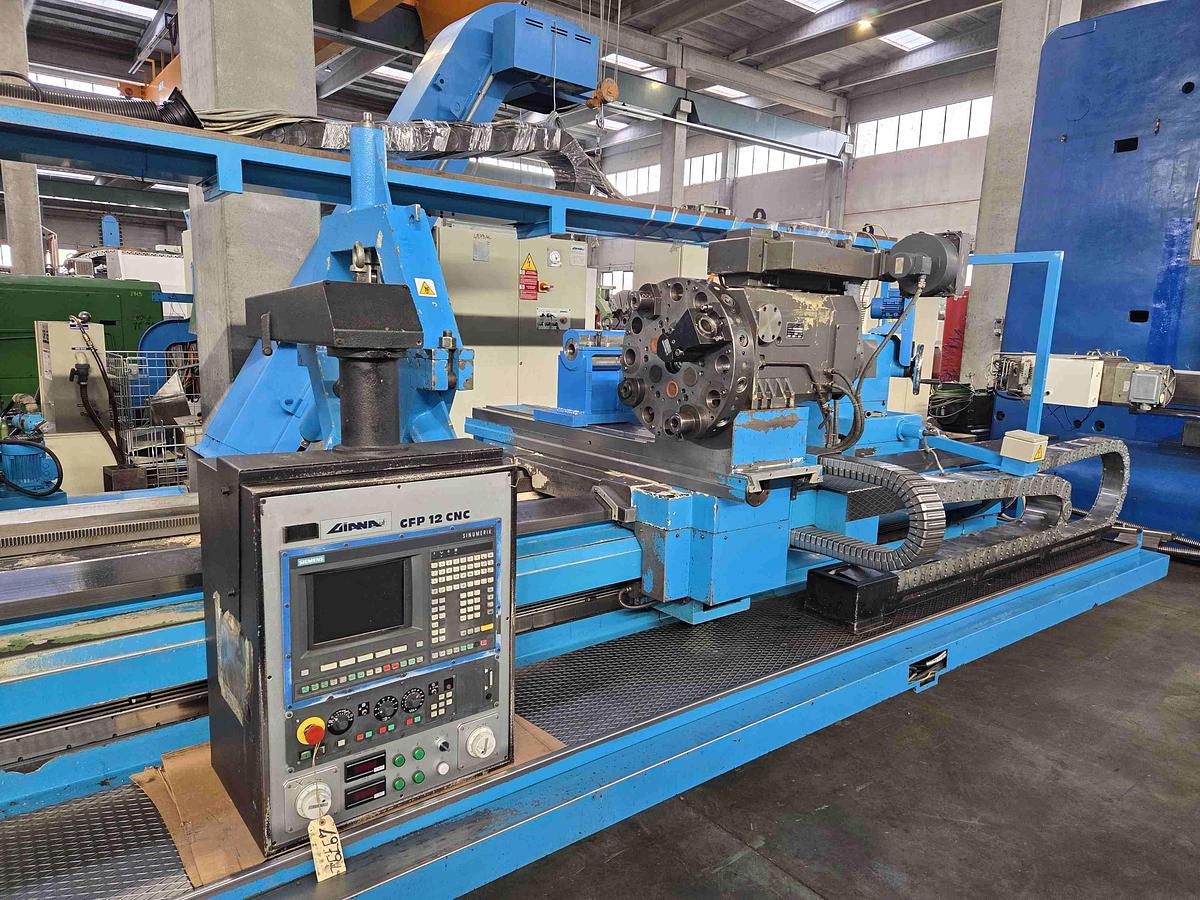

- 12 positions automatic turret

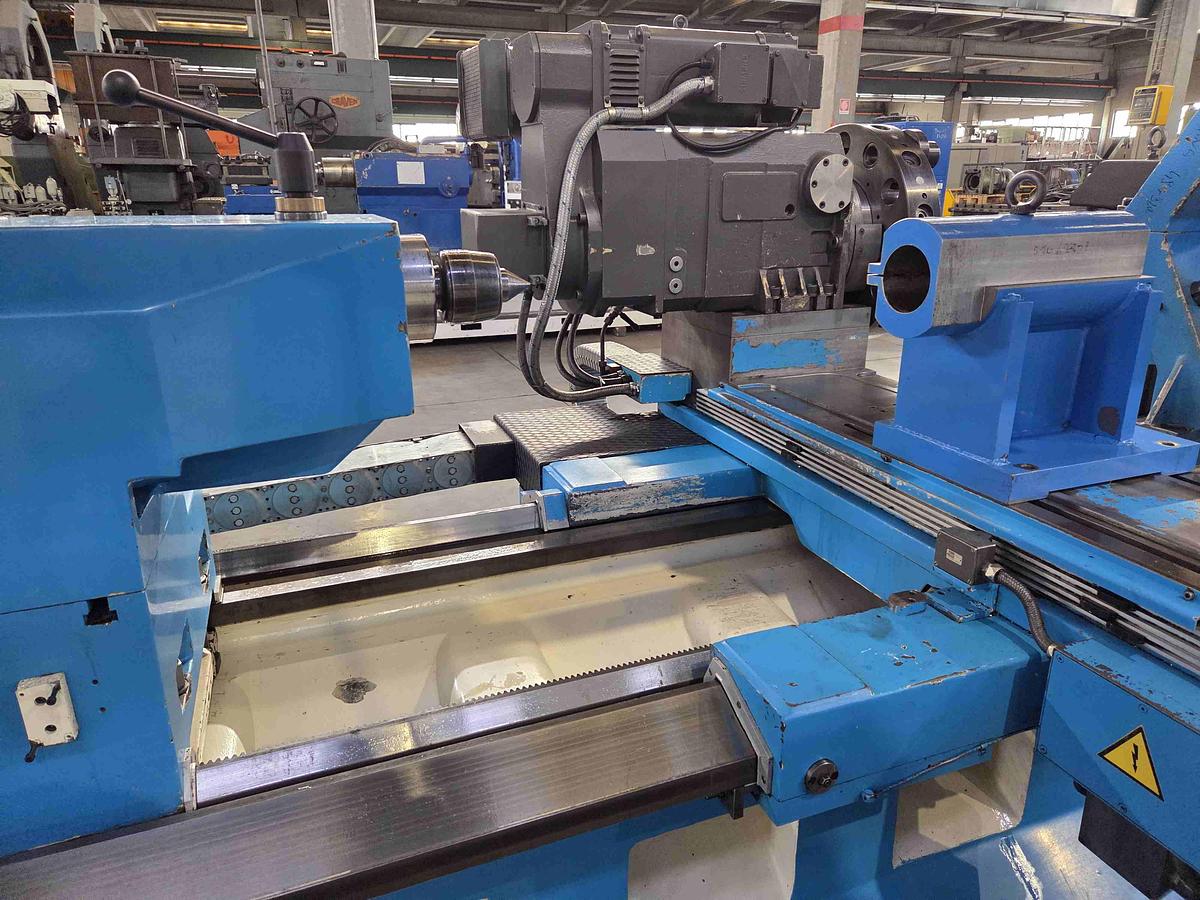

- n. 1 closed steady
- chipconveyor
- safety protections
