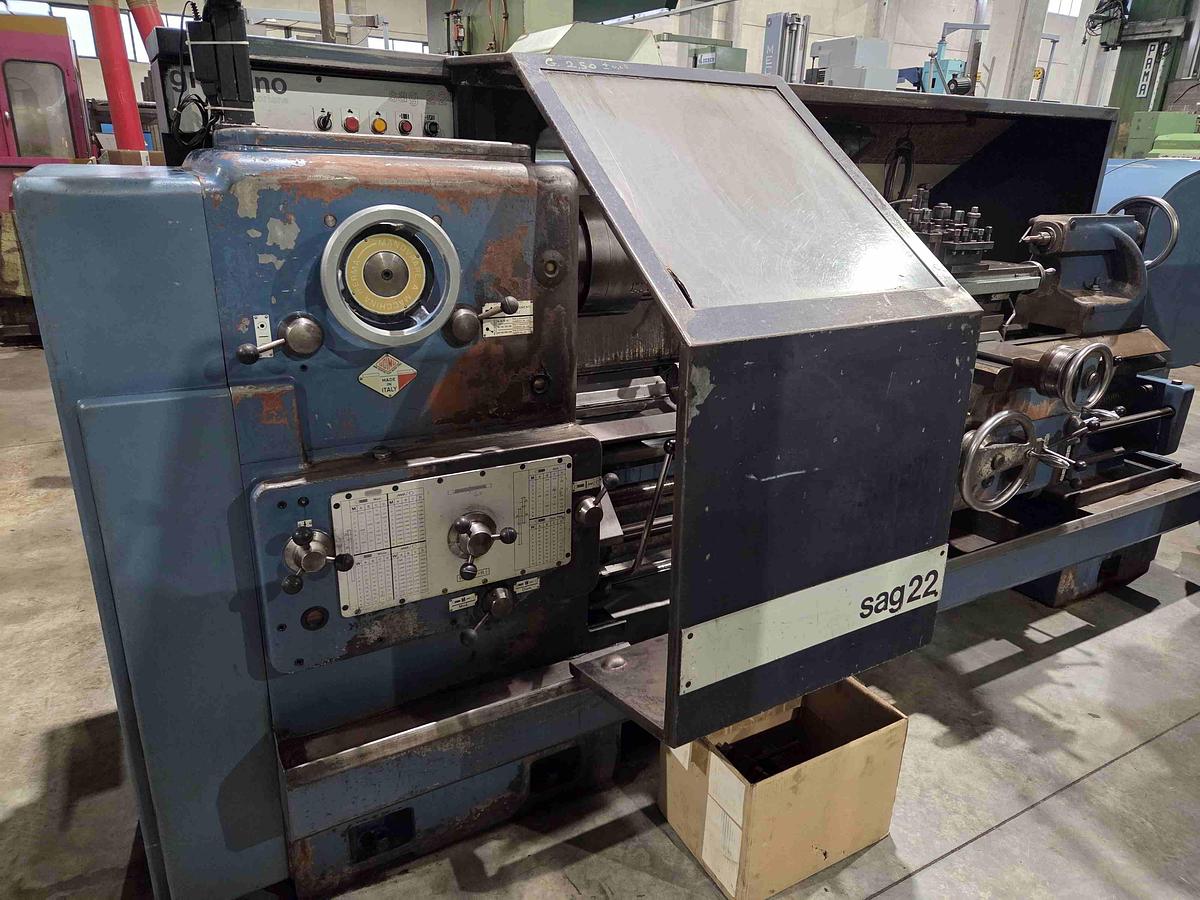

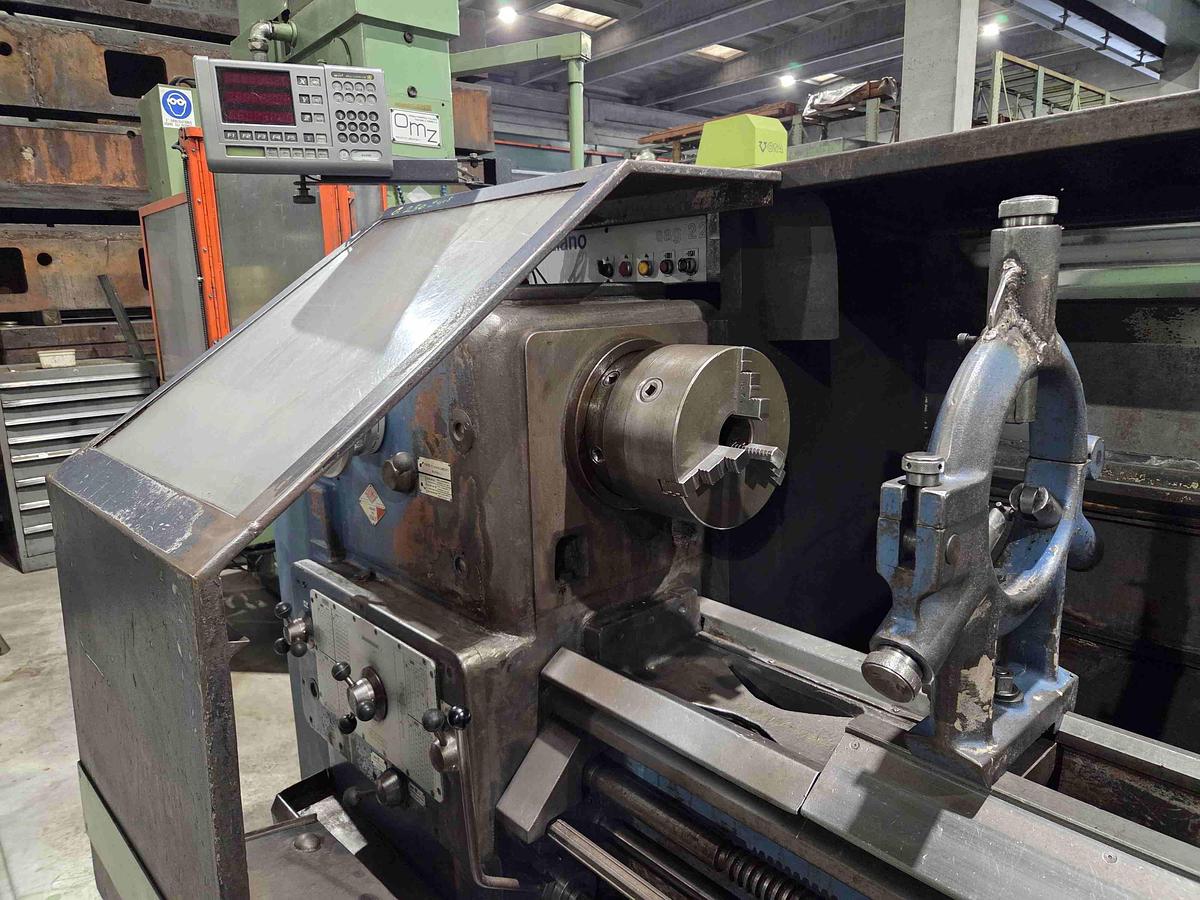

GRAZIANO SAG 22 LATHE
Technical specifications
| Manufacturer | GRAZIANO |
| Model | SAG 22 |
| Year | 1981 |
| Stock Number | 4975 NL |
| Centres height | 280 mm. |
| Centres distance | 1.500 mm. |
| Max. Ø over saddle | 377 mm. |
| Max. Ø over bed | 564 mm. |
| Max. Ø over the gap | 760 mm. |
| Gap lenght | 395 mm. |
| Bed width | 360 mm. |
| Spindle power | 15 Hp. |
| Spindle speeds | N. 12; 30 - 1.500 Rpm. |
| Spindle hole | 85 mm. |
Features and Accessories
Complete with:
- d.r.o.
- n. 1 self centering chuck Ø 250 mm.
- n. 1 closed steady
- safety protections
