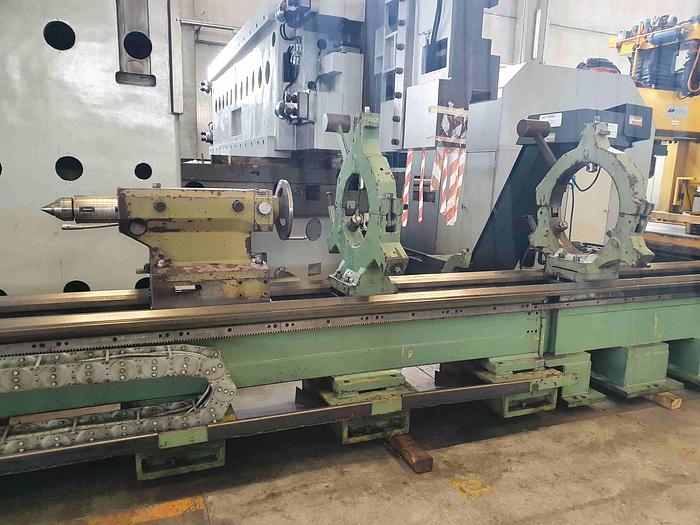

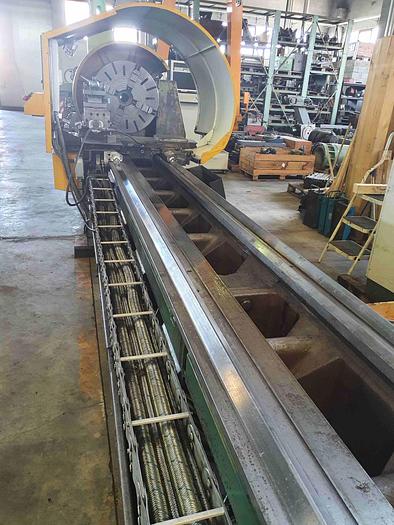

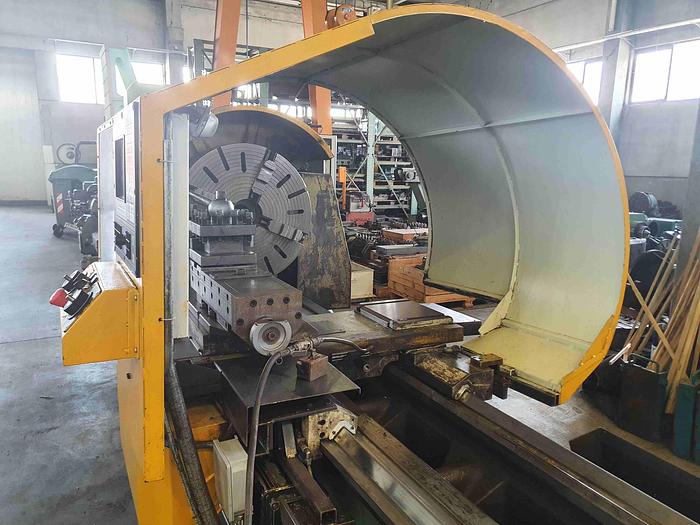

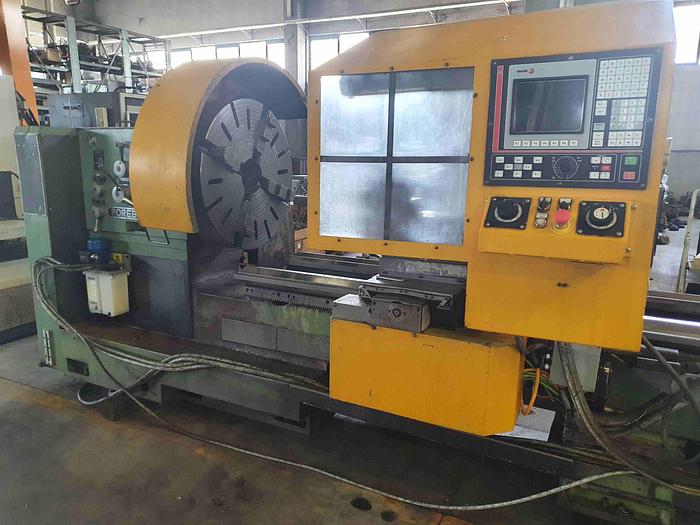

POREBA TPK 90 CNC LATHE
No longer available
Technical specifications
| Manufacturer | POREBA |
| Model | TPK 90 CNC |
| Year | 1985 |
| Centres height | 465 mm. |
| Centres distance | 10.500 mm. |
| Max. Ø over saddle | 630 mm. |
| Max. Ø over bed | 930 mm. |
| Max. Ø over the gap | 1.200 mm. |
| Gap lenght | 420 mm. |
| Bed width | 585 mm. |
| Spindle power | 22 Kw. |
| Spindle speeds | N. 21; 7,1 - 710 Rpm. |
| Spindle hole | 95 mm. |
| Tailstock nose | 130 mm. |
| Tailstock nose travel | 300 mm. |

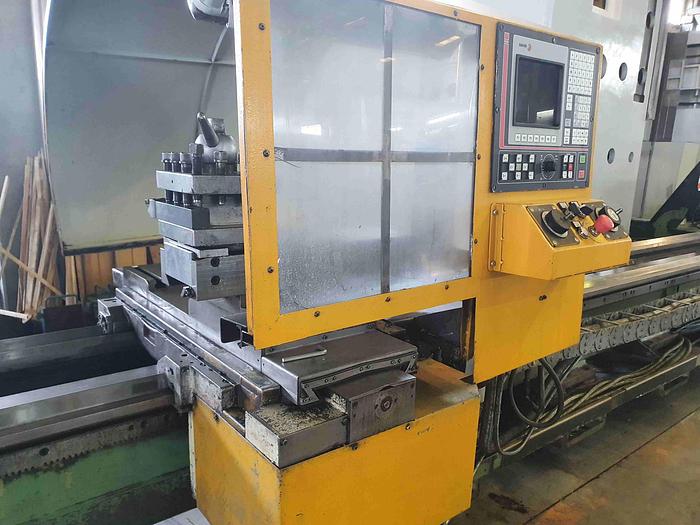

| Cnc | CNA FAGOR 8050 |
| Total weight | 15 Tons. |
Features and Accessories
Complete with:
- n. 1 four jaws table Ø 800 mm.

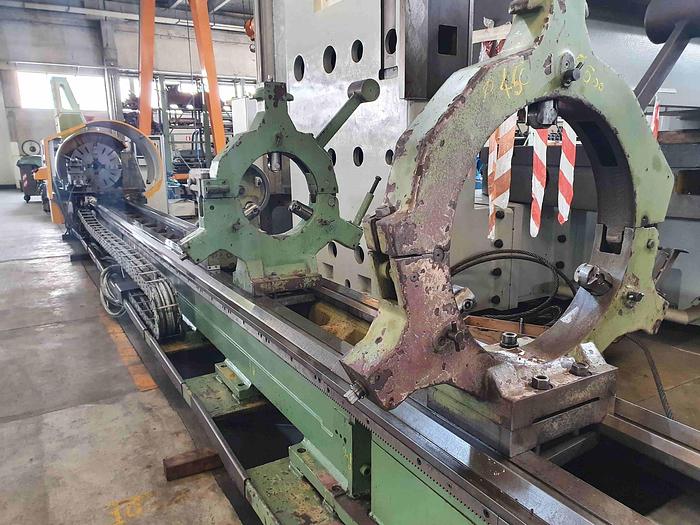

- n. 2 closed steadies
- n. 1 follow steady
